WOODWARD 8440-1843 Replacement for EasyGen 3200-5/P2: Seamless Transition & Legacy System Compatibility

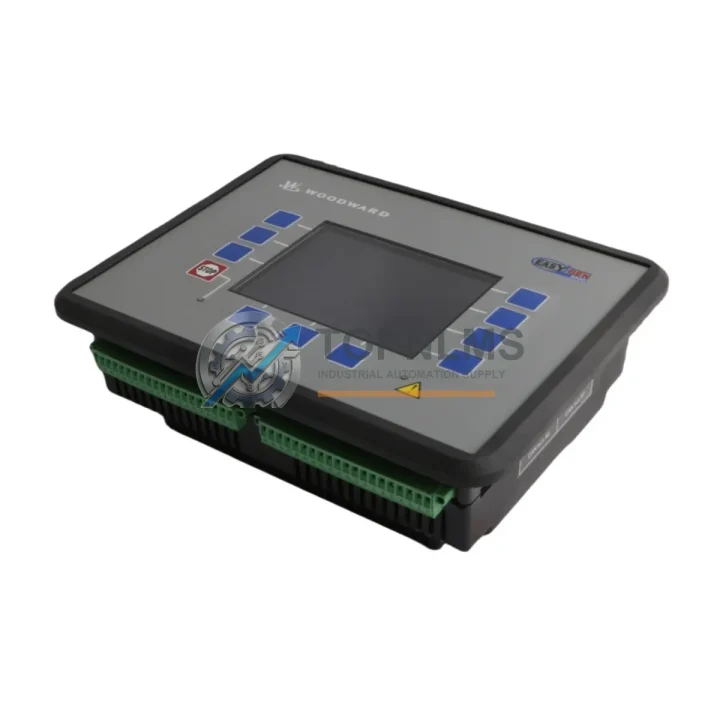

Upgrading or replacing a failed WOODWARD 8440-1843 EasyGen 3200-5/P2 Genset Parallel Controller does not have to mean extended downtime or costly system redesigns. The EasyGen 3200 series was engineered for demanding parallel genset applications — managing load sharing, synchronization, and protection across multiple generator sets in island or mains-parallel configurations. When the original unit reaches end-of-life, becomes obsolete, or suffers field failure, a direct replacement or compatible upgrade path is essential to restore generator plant availability with minimal disruption to existing wiring, programming, and control cabinet layouts.

The WOODWARD 8440-1843 is the P2 variant of the EasyGen 3200-5 platform, designed specifically for multi-genset parallel bus applications. It integrates generator protection, synchronization, load sharing, and power management into a single compact DIN-rail or panel-mount unit. Facilities running legacy EasyGen 3100 or EasyGen 3000 series controllers can migrate to the 8440-1843 with careful attention to terminal mapping, as the EasyGen 3200 platform introduced expanded I/O capacity and enhanced CAN bus and Modbus RTU communication capabilities compared to its predecessors.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the WOODWARD 8440-1843 typically involves more than swapping the controller itself. In most genset control cabinet retrofits, engineers also address the surrounding system components to ensure full compatibility and long-term reliability.

On the communication side, facilities that previously relied on RS-485 Modbus RTU wiring to a SCADA or building management system will find the EasyGen 3200-5/P2’s native Modbus RTU port a direct carry-over. However, plants upgrading to CAN bus or J1939 engine ECU integration — common when replacing older Deif or ComAp controllers — may need to add a CAN bus termination resistor module or a protocol gateway converter to bridge legacy serial networks with the new controller’s CAN interface.

For installations migrating from older WOODWARD EasyGen 3100 or third-party genset controllers such as the Deif GPC-3 or ComAp InteliGen NT, the terminal block layout will differ. In these cases, a terminal adapter plate or a rewired marshalling panel is recommended to avoid direct modification of existing cabinet wiring. Supplementing the installation with a WOODWARD 8440-1820 or 8440-1821 (EasyGen 3200-5/P1 single-genset variant) in adjacent generator sets ensures a unified EasyGen 3200 platform across the entire power plant, simplifying parameter management and spare parts inventory.

The EasyGen 3200-5/P2 communicates with engine ECUs via J1939 CAN, making it directly compatible with modern diesel engine control units from Cummins, Perkins, MTU, and Volvo Penta. When replacing a controller on an older engine without a J1939 ECU, a magnetic pickup speed sensor and analog sender wiring remain fully supported through the controller’s dedicated MPU input and analog measurement channels — no additional signal conditioner is required in most cases.

Power supply integrity is critical in genset control panels. The 8440-1843 accepts a wide-range 12/24 VDC battery supply, consistent with standard genset starting battery systems. If the existing cabinet uses a dedicated 24 VDC regulated power supply module for controller and relay logic, this can be retained without modification. For cabinets being fully rebuilt, a DIN-rail 24 VDC SMPS power supply module rated at 5A or above is recommended to support the controller, output relays, and any connected HMI panel.

Many parallel genset installations also incorporate a remote monitoring HMI or operator panel. The EasyGen 3200-5/P2 supports connection to WOODWARD’s own operator panels as well as third-party Modbus-compatible HMI displays. When upgrading the controller, it is advisable to simultaneously review the HMI communication configuration and update the Modbus register map in the HMI project to match the EasyGen 3200 register set, which differs from the EasyGen 3000/3100 series.

Retrofit Guidance FAQ

Q: Can the 8440-1843 directly replace an EasyGen 3100 without rewiring?
A: In most cases, partial rewiring is required. The EasyGen 3200 series expanded the I/O count and repositioned several terminal assignments. A terminal-by-terminal comparison using the respective wiring diagrams is mandatory before installation. The power supply, MPU, and voltage measurement terminals are generally compatible, but digital input and output assignments must be verified.

Q: Is the programming (parameter set) transferable from EasyGen 3100 to EasyGen 3200-5/P2?
A: Parameters are not directly transferable. The EasyGen 3200 uses WOODWARD’s ToolKit software for configuration. A new parameter set must be created based on the generator’s nameplate data, protection relay settings, and load sharing requirements. Existing EasyGen 3100 parameter printouts serve as a useful reference for replicating protection thresholds and timing settings.

Q: What communication protocols does the 8440-1843 support for SCADA integration?
A: The EasyGen 3200-5/P2 supports Modbus RTU over RS-485 as the primary SCADA interface. CAN bus (J1939) is used for engine ECU communication. For Ethernet-based SCADA systems, a Modbus RTU-to-Modbus TCP gateway is required, as the EasyGen 3200-5 does not include a native Ethernet port.

Q: Will the 8440-1843 fit the existing panel cutout?
A: The EasyGen 3200-5 uses a standard panel-mount format. Verify the exact cutout dimensions against the WOODWARD 8440-1843 installation drawing before ordering. In most retrofit projects involving EasyGen 3000/3100 replacements, the cutout dimensions are compatible or require only minor modification.

Q: How is the synchronization function configured for dead-bus closing?
A: The EasyGen 3200-5/P2 includes a configurable dead-bus detection function. When the bus voltage is below the dead-bus threshold, the controller can be configured to close the generator breaker without synchronization. This parameter is set via WOODWARD ToolKit and must be carefully coordinated with the protection relay settings to avoid nuisance trips.

Warranty Assurance

Every WOODWARD 8440-1843 EasyGen 3200-5/P2 Genset Parallel Controller supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, communication port check, and visual inspection for physical integrity. Units are shipped in original or equivalent protective packaging with anti-static and moisture-barrier protection suitable for international freight.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or repair support with priority handling. Our technical team is available to assist with pre-installation verification questions, parameter configuration guidance, and post-installation troubleshooting support via email and phone. Typical order processing and international shipping lead time from our Xiamen warehouse is 3–7 business days depending on destination and freight mode selected.
