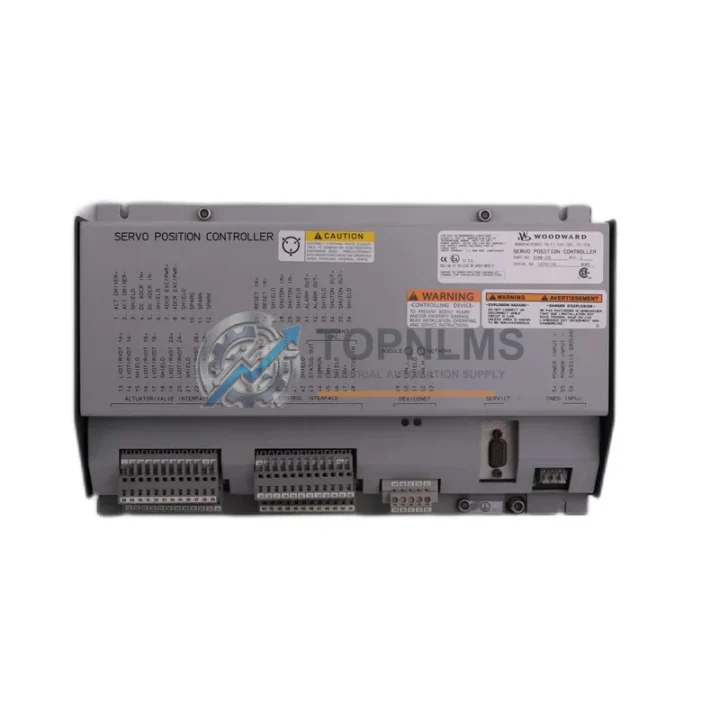

WOODWARD 8200-226 Servo Amplifier Replacement for EG3P ProAct

Product Overview

WOODWARD 8200-226 Servo Amplifier Replacement for EG3P ProAct: Seamless Migration & Legacy System Upgrade

When your existing WOODWARD EG3P ProAct control system reaches end-of-life or a critical servo amplifier module fails, unplanned downtime becomes your most expensive operational risk. The WOODWARD 8200-226 Servo Amplifier Module is a precision-engineered replacement and upgrade solution designed to restore full servo loop control with minimal re-engineering effort. Whether you are migrating from an aging analog servo drive platform, replacing a discontinued amplifier card, or modernizing a turbine governor control cabinet, the 8200-226 delivers the electrical compatibility, signal fidelity, and mechanical form factor your system demands.

This module is purpose-built for the WOODWARD EG3P ProAct series governor and actuator control architecture. It interfaces directly with ProAct actuators, maintaining the same 4–20 mA command signal range and ±10 VDC feedback loop that legacy installations rely on. Engineers familiar with the EG3P platform will find that wiring terminations, DIN rail mounting dimensions, and power supply requirements (typically 24 VDC) are preserved, eliminating the need for panel redesign or new cable harnesses. For sites running parallel redundant governor systems, the 8200-226 supports hot-standby configurations consistent with the original EG3P architecture.

Facilities upgrading from earlier WOODWARD servo amplifier generations — including obsolete variants of the 8200-series and predecessor analog amplifier boards — will benefit from the 8200-226’s backward-compatible signal conditioning. The module accepts both magnetic pickup (MPU) speed signals and analog position feedback, making it suitable for retrofit projects where the actuator and sensor infrastructure is retained while only the amplifier card is replaced. This approach dramatically reduces retrofit scope: no new actuator, no new wiring tray, no new HMI reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy governor control system to the WOODWARD 8200-226 rarely involves a single component swap. In practice, field engineers encounter a cluster of interdependent modules that must be evaluated and often replaced in parallel to ensure system integrity. The most common scenario involves the EG3P ProAct actuator itself — the 8200-226 amplifier is designed to drive ProAct linear and rotary actuators directly, so if the actuator has accumulated wear hours alongside the failed amplifier, a concurrent actuator inspection or replacement with a compatible ProAct unit is strongly recommended to avoid a second unplanned outage.

Power supply integrity is equally critical. The 8200-226 draws regulated 24 VDC, and aging WOODWARD power supply modules within the same control cabinet — particularly earlier 8200-series PSU cards — may exhibit voltage ripple that degrades amplifier performance. Replacing or bench-testing the existing power supply module before commissioning the new amplifier card eliminates a common source of post-retrofit instability. Similarly, the speed bias potentiometer assembly and the load sharing module, if present in the governor panel, should be inspected for contact wear, as these analog components directly influence the amplifier’s droop and isochronous control behavior.

For sites where the governor panel also hosts a WOODWARD 2301A or 2301D load sharing and speed control unit, the 8200-226 integrates cleanly within that architecture. The 2301-series controllers output a 4–20 mA actuator demand signal that the 8200-226 accepts natively, preserving the existing control loop without any signal conditioning adapter. If the site is upgrading the speed controller simultaneously — for example, migrating from a 2301A to a 2301E or a MicroNet TMR platform — the 8200-226 remains compatible with the analog output stage of all these controllers, providing a stable amplifier foundation during a phased migration strategy.

Communication infrastructure upgrades are another common parallel workstream. Sites adding Modbus RTU or PROFIBUS DP supervisory monitoring to a previously hardwired governor system will typically install a WOODWARD or third-party communication gateway module alongside the amplifier replacement. The 8200-226 itself operates on hardwired analog signals, so the communication gateway connects at the controller level rather than the amplifier level — an important architectural distinction that simplifies the retrofit scope. Termination modules and signal isolators are frequently added at this stage to protect the new amplifier card from ground loop interference originating in long cable runs between the control room and the turbine skid.

Finally, for sites maintaining a spare parts inventory, it is best practice to stock at least one additional 8200-226 module alongside compatible EG3P actuator position sensors, a spare 24 VDC power supply card, and a set of pre-terminated wiring harnesses. This spares strategy, combined with the 12-month warranty coverage provided by TOPNLMS, ensures that a future amplifier failure can be resolved within hours rather than days, keeping mean time to repair (MTTR) within acceptable limits for critical power generation and process control applications.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing the old amplifier with the 8200-226?
A: Yes. The 8200-226 maintains the same terminal block pinout and signal levels as the EG3P ProAct amplifier it replaces. In most installations, the existing cable harness can be reconnected without modification. Always verify terminal labeling against the site wiring diagram before energizing.

Q: Do I need to reprogram the governor controller after installing the 8200-226?
A: No controller reprogramming is required for a direct amplifier replacement. The 8200-226 is a hardware-level replacement; gain and droop adjustments are made via onboard potentiometers, consistent with the original EG3P setup procedure. If the site controller (e.g., 2301A, 2301D) has been reconfigured since original commissioning, verify that actuator demand output scaling matches the amplifier’s input range.

Q: Is the 8200-226 compatible with both linear and rotary ProAct actuators?
A: The 8200-226 is designed for the EG3P ProAct series. Compatibility with specific actuator variants (linear vs. rotary, low-force vs. high-force) should be confirmed against the actuator model number and the original system documentation. Contact TOPNLMS with your actuator model for pre-sale confirmation.

Q: What communication protocols does the 8200-226 support?
A: The 8200-226 operates on hardwired analog signals (4–20 mA command, LVDT feedback, MPU speed input). It does not natively support digital fieldbus protocols such as Modbus, PROFIBUS, or DeviceNet. Digital supervisory communication is handled at the governor controller level, not the amplifier level.

Q: Will the 8200-226 fit in my existing control cabinet without modification?
A: Yes. The module shares the same DIN rail mounting footprint and panel depth as the original EG3P amplifier card. No cabinet cutout modification or additional mounting hardware is required in standard installations.

Q: How do I handle the transition from a discontinued OEM part to the 8200-226?
A: TOPNLMS supplies the 8200-226 as a tested, verified replacement for discontinued EG3P ProAct amplifier modules. Each unit undergoes functional testing prior to shipment. Provide your original part number and system documentation when ordering to ensure full compatibility confirmation before dispatch.

Warranty Assurance

Every WOODWARD 8200-226 Servo Amplifier Module supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Units are functionally tested on calibrated test benches prior to dispatch to verify signal response, output linearity, and power supply regulation within specification.

In the event of a warranty claim, TOPNLMS provides a replacement unit or repair service with priority handling to minimize your system downtime. Our technical support team is available to assist with installation verification, commissioning questions, and fault diagnosis throughout the warranty period. Replacement logistics are coordinated from our Xiamen warehouse, with express international shipping options available to minimize lead time for critical applications.

For procurement teams, TOPNLMS issues a formal warranty certificate with each shipment, suitable for inclusion in maintenance records and asset management systems. Bulk orders and long-term supply agreements for critical spare parts inventories are supported with customized warranty and logistics terms. Contact our sales team to discuss stocking agreements for the 8200-226 and related EG3P ProAct system components.
