Woodward 80172-110-02-3 Original Industrial Spare 80172 Compatible

Product Overview

Woodward 80172-110-02-3 Original Industrial Spare: System Stability & Maintenance Value

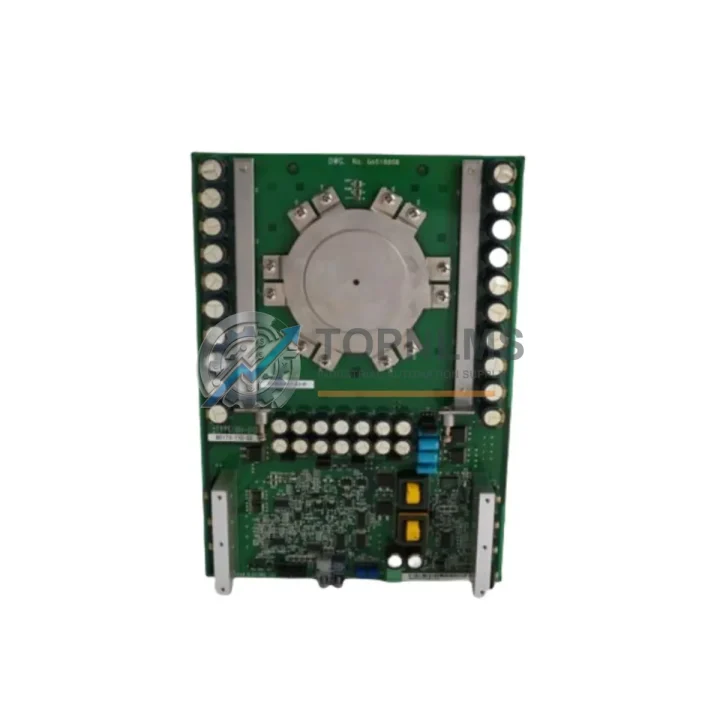

The Woodward 80172-110-02-3 is an original SCR (Silicon Controlled Rectifier) thyristor firing board engineered for industrial governor control systems. As a critical component within the Woodward 80172 Series, this firing board governs the precise phase-angle triggering of thyristor power stages, directly determining the stability of speed and load regulation in turbines, generators, compressors, and other rotating machinery. In facilities where unplanned downtime translates to significant production loss, maintaining a verified spare of the 80172-110-02-3 is not optional — it is a fundamental element of any responsible maintenance strategy.

Industrial plants operating legacy governor control cabinets face a persistent challenge: OEM production lifecycles end, but the machinery these systems control continues to run for decades. The 80172-110-02-3 addresses this challenge directly. Sourced as an original Woodward component, it preserves full electrical and functional compatibility with existing 80172 Series control architectures, eliminating the risk and cost of re-engineering associated with non-original substitutes. Every unit dispatched from TOPNLMS undergoes pre-shipment functional verification and is covered by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to plan replacements without on-site uncertainty.

Critical Technical Specs

Preventive Maintenance Strategy

When a Woodward 80172-110-02-3 firing board is flagged for replacement during a scheduled outage or emergency shutdown, experienced maintenance engineers know that the thyristor firing board rarely fails in isolation. The broader governor control cabinet and its associated electrical circuits deserve a systematic inspection at the same time, both to prevent repeat failures and to maximize the value of the maintenance window.

Begin with the Woodward 80172 Series power supply module. A degraded or out-of-tolerance DC supply rail is one of the most common root causes of premature firing board failure — voltage ripple and transient spikes stress the gate drive circuitry over time. Verify output voltage stability and replace the power supply module if readings fall outside specification. Simultaneously, inspect the thyristor power modules (SCR stacks) that the firing board drives. A shorted or leaky thyristor will immediately damage a new firing board if not identified and replaced beforehand.

The signal conditioning and isolation board within the same cabinet should be checked next. These boards process speed reference, load feedback, and droop signals before they reach the firing board; a drifting isolation amplifier or a failed optocoupler will cause erratic governor response that is often misdiagnosed as a firing board fault. If the system uses a Woodward magnetic pickup unit (MPU) for speed sensing, verify the air gap, output voltage, and cable shielding integrity — a noisy or weak MPU signal is a frequent contributor to governor instability.

Terminal blocks and wiring within the control cabinet warrant close attention during any firing board replacement. Loose or corroded terminals on the gate pulse wiring, feedback signal lines, and power connections can introduce intermittent faults that are difficult to trace after reassembly. Replace any suspect terminal blocks and re-torque all connections to specification. If the cabinet includes a Woodward analog I/O expansion board for load sharing or remote setpoint input, verify its calibration and connector integrity as part of the same inspection cycle.

For plants running networked governor systems, the Woodward communication interface module (such as a DSLC or MSLC load sharing module) should be tested for proper communication with the firing board and the plant DCS or SCADA system. Communication faults that develop gradually are often masked until a board replacement disturbs the cabinet wiring. Finally, review the condition of the control cabinet cooling fans and air filters — thermal management is critical for the longevity of all PCB assemblies in the 80172 Series, and a blocked filter can reduce board service life significantly.

Stocking a Woodward 80172 Series analog output board and a set of replacement fuse modules for the governor cabinet alongside the 80172-110-02-3 firing board is a practical inventory strategy. These components share the same maintenance cycle and are subject to the same environmental stresses, making them logical candidates for co-procurement to reduce future emergency sourcing lead times.

Strategic Replacement Solutions

The Woodward 80172-110-02-3 is a direct, original-specification replacement for worn, damaged, or end-of-life firing boards in 80172 Series governor control systems. Unlike third-party alternatives that may require firmware adjustments, parameter re-mapping, or physical modifications to fit existing wiring harnesses, the original 80172-110-02-3 installs as a true drop-in replacement. This preserves the original system’s tuning parameters, eliminates commissioning risk, and allows the plant to return to full operation in the shortest possible time.

For facilities managing aging Woodward governor systems, the strategic value of maintaining original spare boards extends beyond a single repair event. Original boards ensure that the system continues to meet its original performance specifications — critical in applications where governor response time and accuracy are tied to grid compliance or process safety requirements. Replacing with an original component also simplifies documentation: the maintenance record reflects a like-for-like replacement, which is important for insurance, regulatory audit, and OEM service contract compliance.

TOPNLMS maintains inventory of the 80172-110-02-3 and related 80172 Series components to support rapid response to both planned outages and emergency breakdowns. Orders are processed promptly, with worldwide shipping available and full export documentation provided for international customers. Each unit ships with a test report and is backed by a 12-month warranty covering functional performance under normal operating conditions.
