WOODWARD 5500-577 Replacement/Upgrade for 5500 Series

Product Overview

WOODWARD 5500-577 Replacement/Upgrade for 5500 Series: Seamless Transition to Modern Parallel Generator Control

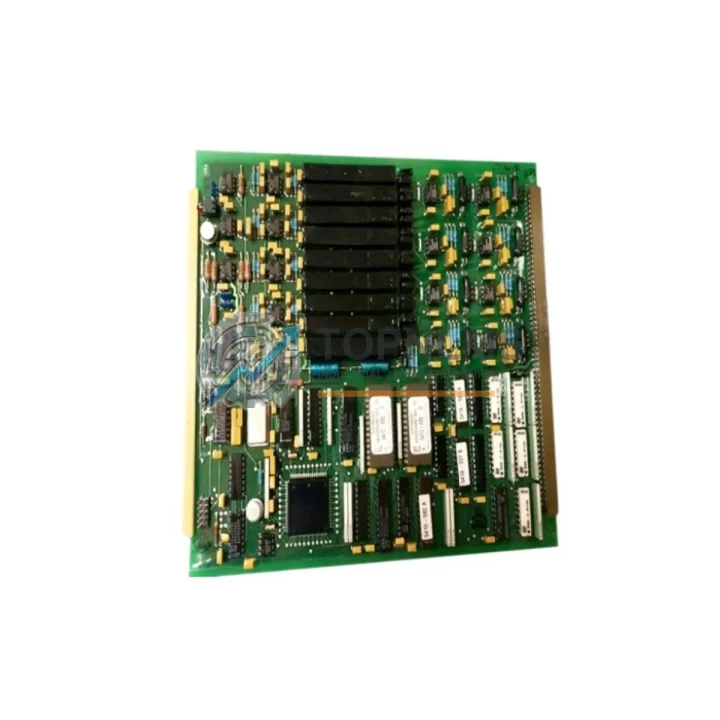

The WOODWARD 5500-577 Analog Load Share Module is a precision control component engineered for parallel generator operation within the WOODWARD 5500 Series control platform. As aging power generation infrastructure reaches end-of-service life, plant engineers and procurement teams increasingly seek a reliable, drop-in replacement or upgrade path that eliminates costly downtime, preserves existing wiring infrastructure, and maintains compatibility with the broader generator control architecture. The 5500-577 addresses all of these requirements directly.

This module governs real power (kW) load sharing among paralleled generator sets by continuously monitoring and adjusting governor speed bias signals. In legacy installations, the 5500-577 typically operates alongside the WOODWARD 5500-578 Reactive Load Share Module, which handles reactive power (kVAR) distribution. Together, these two modules form the core of a balanced parallel generation system. When one module fails or becomes obsolete, replacing it with a verified 5500-577 unit restores full system symmetry without requiring reprogramming of the governor or AVR (Automatic Voltage Regulator) control loops.

Facilities transitioning from older WOODWARD 2301 or 2301A speed controls to the 5500 Series platform will find the 5500-577 fully compatible with the analog signal architecture used across WOODWARD’s generator control ecosystem. The module accepts standard ±2.5 VDC or 4–20 mA load share line signals, making it interoperable with existing field wiring without requiring signal conditioning adapters or intermediate converters. This is a critical advantage in retrofit scenarios where conduit runs are fixed and rewiring is cost-prohibitive.

In panel and switchgear applications, the 5500-577 is typically DIN-rail or panel-mounted within the generator control cabinet. Its compact form factor is compatible with standard 19-inch rack enclosures and custom fabricated control panels alike. Engineers replacing a failed unit can complete the physical swap in under 30 minutes, with no special tooling required. Terminal block wiring follows the original WOODWARD installation drawing, and the module’s internal potentiometers allow fine-tuning of droop percentage and gain without external calibration equipment.

For sites running multiple generator sets — whether in island mode or grid-parallel configuration — the 5500-577 supports both operating modes through its configurable droop/isochronous switching input. This flexibility is essential in data centers, hospitals, offshore platforms, and industrial facilities where generation topology may change based on load demand or grid availability. The module’s analog architecture also makes it inherently immune to the cybersecurity vulnerabilities associated with networked digital control systems, a consideration increasingly relevant in critical infrastructure environments.

When upgrading from a failed or discontinued WOODWARD 5500-570 or 5500-571 load share variant, the 5500-577 serves as the current production replacement. Procurement teams should note that the 5500 Series product line has seen periodic part number consolidation; the 5500-577 supersedes several earlier analog load share variants and is the recommended stocking unit for facilities maintaining WOODWARD-based generation fleets. Pairing the 5500-577 with the WOODWARD EasyGen-300 or EasyGen-3000 Series generator controllers enables a hybrid architecture that bridges legacy analog load sharing with modern digital supervisory control, extending the useful life of existing generator assets without a full controls overhaul.

For facilities also managing excitation control, the 5500-577 is compatible with WOODWARD’s MFR 300 multi-function relay and interfaces cleanly with the BASLER Electric DECS-250 digital excitation control system when used in mixed-vendor generator rooms. The module’s load share line is a passive analog bus, meaning it can coexist with digital paralleling relays from Woodward, ComAp, or Deif without signal conflicts, provided proper impedance matching is observed at the terminal block.

From a procurement standpoint, TOPNLMS maintains verified stock of the WOODWARD 5500-577 with full functional testing prior to shipment. Each unit undergoes bench verification of load share line signal output, droop response, and terminal integrity before packaging. Units are shipped in anti-static protective packaging with individual test records. Standard lead time from Xiamen warehouse is 3–7 business days for international destinations, with expedited options available for critical plant outages.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete 5500-577 retrofit typically involves more than a single module swap. In most parallel generator installations, the 5500-577 works in tandem with the WOODWARD 5500-578 Reactive Load Share Module, which must also be verified or replaced simultaneously to ensure balanced kW and kVAR distribution across all generator sets. Neglecting the reactive load share module during a kW load share replacement is a common cause of post-retrofit instability.

Governor control is equally critical. Sites running WOODWARD 2301D or 2301E Digital Speed Controls will find the 5500-577 integrates directly via the governor’s analog speed bias input, requiring only a single-wire connection change from the legacy module. For sites upgrading to the WOODWARD EasyGen-3000 Series generator controller, the 5500-577 can serve as an interim load share interface while the digital paralleling logic is commissioned, reducing the risk window during cutover.

Power supply integrity is a prerequisite for reliable module operation. The 5500-577 requires a stable 24 VDC control power source; facilities should verify that the existing WOODWARD 5501-258 or equivalent 24 VDC power supply module is within specification before completing the swap. A degraded power supply is frequently the root cause of apparent load share module failures and should be tested as part of the diagnostic process.

For sites where the generator control cabinet also houses a BASLER Electric DECS-250 or DECS-100 Automatic Voltage Regulator, the 5500-577’s load share line is electrically isolated from the AVR excitation circuit, eliminating cross-interference concerns. Similarly, facilities using ComAp InteliGen NT or InteliMains NT paralleling controllers alongside WOODWARD analog modules will find the passive load share bus architecture fully compatible with ComAp’s analog load share input terminals.

Wiring accessories including Phoenix Contact or Weidmuller DIN-rail terminal blocks and shielded twisted-pair signal cable (Belden 9841 or equivalent) are recommended for load share line runs exceeding 10 meters to minimize noise pickup. For installations requiring signal isolation between generator sets from different manufacturers, a WOODWARD or equivalent signal isolator/repeater should be inserted in the load share bus to prevent ground loop interference.

Retrofit Guidance FAQ

Q: Can I replace the 5500-577 without shutting down the entire generator plant?
A: In most installations, the load share module can be replaced during a planned single-generator outage while remaining units continue to carry load. The load share bus remains active; the disconnected unit simply drops out of the parallel load sharing loop. Consult your site-specific single-line diagram before proceeding.

Q: Do I need to reprogram the governor or AVR after installing the 5500-577?
A: No. The 5500-577 is a passive analog module with no firmware or programmable parameters. Adjustment is limited to physical potentiometer settings for droop percentage and gain, which can be matched to the previous module’s settings using a calibrated DC voltmeter.

Q: Is the 5500-577 compatible with Modbus or PROFIBUS communication systems?
A: The 5500-577 is a purely analog device and does not support digital communication protocols. It operates on a passive ±2.5 VDC load share bus. If your site requires Modbus or PROFIBUS integration for load share monitoring, this function must be handled by the supervisory controller (e.g., EasyGen-3000 or ComAp InteliGen NT), not the load share module itself.

Q: What is the physical installation space requirement?
A: The 5500-577 uses the same panel cutout and DIN-rail footprint as the superseded 5500-570/571/572 variants. No panel modification is required for a direct replacement. Verify terminal block spacing if the existing wiring uses ferrule-terminated conductors larger than 2.5 mm².

Q: How do I verify the module is functioning correctly after installation?
A: With all generators running in parallel, measure the load share line voltage at each module’s LS+ and LS- terminals. In a balanced system, all modules should read within ±50 mV of each other. Significant deviation indicates a wiring fault, impedance mismatch, or a failed module on another generator set.

Q: Can the 5500-577 be used in grid-parallel (utility tie) applications?
A: Yes. The module supports both island-mode and grid-parallel operation via its isochronous/droop switching input. In grid-parallel mode, the module operates in droop mode to prevent hunting against the utility frequency reference.

Warranty Assurance

Every WOODWARD 5500-577 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes free replacement or full refund at the buyer’s election. Our warranty process is designed for industrial procurement teams who cannot afford extended back-and-forth: a warranty claim is initiated by email with a brief fault description, and replacement units are dispatched within 48 hours of claim approval.

Prior to shipment, each 5500-577 unit undergoes a structured pre-shipment inspection covering: visual inspection for physical damage, terminal block integrity check, load share signal output verification at rated supply voltage, and droop potentiometer range confirmation. Units that do not pass all inspection criteria are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Packaging is ESD-safe anti-static bag with foam cushioning inside a double-wall corrugated carton, suitable for international air freight and sea freight. Each shipment includes a packing list with part number, serial number (where applicable), and inspection date. For orders requiring third-party inspection certificates or material traceability documentation, please contact our sales team prior to order placement.

TOPNLMS ships from Xiamen, China, with standard international lead times of 3–7 business days via DHL, FedEx, or UPS Express. Emergency same-day dispatch is available for orders placed before 14:00 CST. For large-volume or blanket purchase orders, consignment stocking arrangements are available to ensure zero lead time for critical spare parts.

For procurement inquiries, technical compatibility questions, or warranty claims, contact our industrial automation team directly:

📧 [email protected] | 📞 +86 18359293191
