WOODWARD 5466-316 Replacement/Upgrade for MicroNet

Product Overview

WOODWARD 5466-316 Replacement/Upgrade for MicroNet: Smooth Transition from Legacy Governor Systems

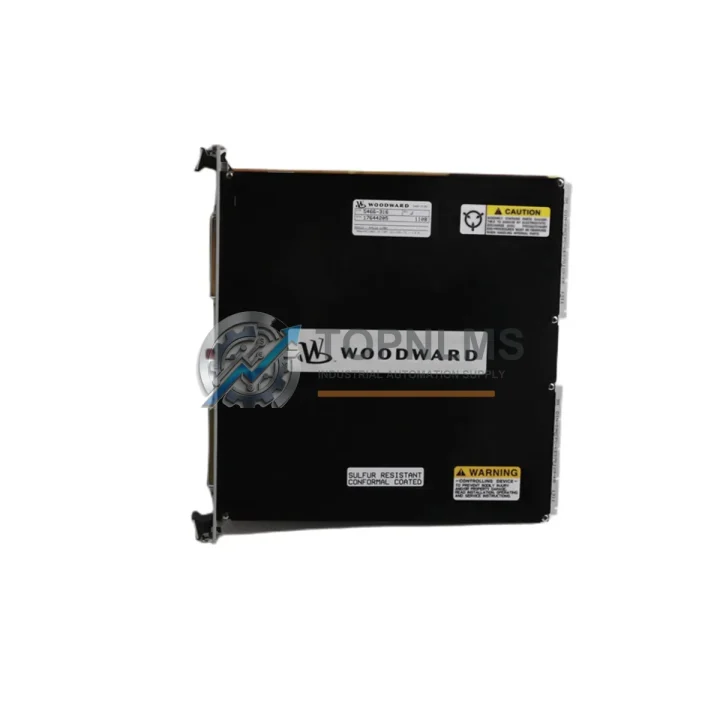

The WOODWARD 5466-316 is a Magnetic Pickup Unit (MPU) I/O Module designed for the WOODWARD MicroNet governor and turbine control platform. As legacy governor systems age and original spare parts become increasingly scarce, the 5466-316 serves as the critical bridge between discontinued control architectures and modern, reliable turbine management. Whether you are replacing a failed module in an emergency shutdown scenario or executing a planned migration away from an end-of-life WOODWARD NetCon or early MicroNet configuration, the 5466-316 delivers the wiring compatibility, signal conditioning accuracy, and rack-mount form factor your system demands — without requiring reprogramming of the core governor logic or physical modification of the control cabinet.

Industrial facilities operating gas turbines, steam turbines, compressors, and generator sets frequently encounter the challenge of sourcing reliable replacement modules for WOODWARD governor platforms that have been in continuous service for 10 to 25 years. The 5466-316 addresses this directly: it slots into the existing MicroNet chassis backplane, retains the original terminal wiring assignments, and communicates over the same internal I/O bus as the original module — eliminating the need for costly re-engineering of the control panel or revalidation of the turbine control program.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or around the WOODWARD 5466-316 rarely involves a single module in isolation. In practice, turbine control modernization projects require a coordinated approach across the entire MicroNet rack and associated field instrumentation. During the upgrade process, engineers commonly address the WOODWARD MicroNet Power Supply Module to ensure stable 24 VDC backplane power — an aging power supply is frequently the root cause of intermittent MPU signal faults that are misdiagnosed as module failures. Alongside the 5466-316, the WOODWARD MicroNet CPU Module (such as the 5466-258 or 5466-369) must be verified for firmware compatibility, as older CPU revisions may require a firmware update to correctly interpret the I/O map of a replacement MPU module.

On the field instrumentation side, the magnetic pickup sensors themselves — typically passive variable-reluctance MPU probes mounted on the turbine gear wheel — should be inspected and replaced if signal amplitude has degraded. Pairing a new 5466-316 with a worn MPU probe will not resolve speed sensing instability. Similarly, the WOODWARD MicroNet Analog I/O Module (such as the 5466-470 or 5466-472) is often upgraded in the same maintenance window to eliminate cross-channel signal drift that affects fuel valve positioning and load sharing accuracy.

For facilities integrating the MicroNet governor into a broader DCS or SCADA architecture, the WOODWARD MicroNet Communication Module — supporting Modbus RTU, Modbus TCP, or PROFIBUS DP depending on the variant — is a common co-upgrade item. Replacing an aging communication module at the same time as the 5466-316 ensures that the governor’s speed, load, and alarm data streams remain reliable after the maintenance outage. In control cabinets where terminal blocks have aged or where field wiring has been extended or re-routed over the years, Phoenix Contact or Weidmüller DIN-rail terminal blocks and signal isolators are frequently installed to clean up the wiring interface between the MicroNet chassis and the field junction boxes.

Finally, for sites that have not yet upgraded their programming and configuration toolchain, the WOODWARD Toolkit software and the associated RS-232 or USB programming cable for MicroNet should be confirmed as part of the project scope. Attempting to commission a replacement 5466-316 without a verified programming connection to the MicroNet CPU will extend commissioning time significantly and increase the risk of an unplanned turbine trip during the startup sequence.

Retrofit Guidance FAQ

Q: Do I need to rewire the terminal block when replacing the 5466-316?
A: No. The 5466-316 uses the same terminal block pinout as the original module. Existing field wiring — including MPU sensor cables, discrete input wiring, and output signal cables — connects directly without modification. Always verify wiring against the as-built drawings for your specific turbine control panel before energizing.

Q: Will the existing MicroNet governor program run without modification after installing the 5466-316?
A: In the vast majority of direct replacement scenarios, yes. The 5466-316 presents the same I/O map to the MicroNet CPU as the original module. However, if the CPU firmware version is significantly older than the module hardware revision, a firmware compatibility check with WOODWARD documentation is recommended before commissioning.

Q: What communication protocols does the 5466-316 support?
A: The 5466-316 communicates over the WOODWARD MicroNet internal backplane I/O bus. It does not independently support external fieldbus protocols such as Modbus or PROFIBUS — those functions are handled by a dedicated MicroNet Communication Module installed in a separate chassis slot.

Q: Does the 5466-316 fit in all MicroNet chassis sizes?
A: The 5466-316 is designed for the standard WOODWARD MicroNet modular chassis. It occupies a single module slot. Confirm your chassis model and available slot positions before ordering, particularly in compact or custom-configured control cabinets where slot assignments may have been modified from the original factory configuration.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, use the WOODWARD Toolkit software to confirm that the MicroNet CPU recognizes the 5466-316 in its assigned slot, that MPU speed signals are reading correctly at the expected frequency range, and that all discrete I/O channels are responding as expected. Perform a slow-roll test before returning the turbine to full-speed operation.

Q: Can the 5466-316 replace modules from other WOODWARD series such as the 505 or 723 governor?
A: No. The 5466-316 is specific to the MicroNet platform. The WOODWARD 505 Digital Governor and WOODWARD 723 Governor are standalone controllers with different hardware architectures and are not backplane-compatible with MicroNet chassis modules.

Warranty Assurance

Every WOODWARD 5466-316 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional inspection to verify physical integrity, connector condition, and board-level visual quality. Units showing signs of prior damage, counterfeit markings, or non-conforming component substitution are rejected and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault condition. Our technical team is available to assist with installation questions, compatibility verification, and commissioning support via email at [email protected] or by phone at +86 18359293191. We understand that turbine governor failures are time-critical events — our standard order processing and international express shipping from Xiamen, China is designed to minimize the time between your purchase decision and module delivery to your facility.

For B2B procurement teams managing spare parts inventories for multiple turbine units or plant-wide MicroNet installations, TOPNLMS offers volume pricing and reserved stock arrangements. Contact us directly to discuss your site’s specific spare parts strategy and lead time requirements.
