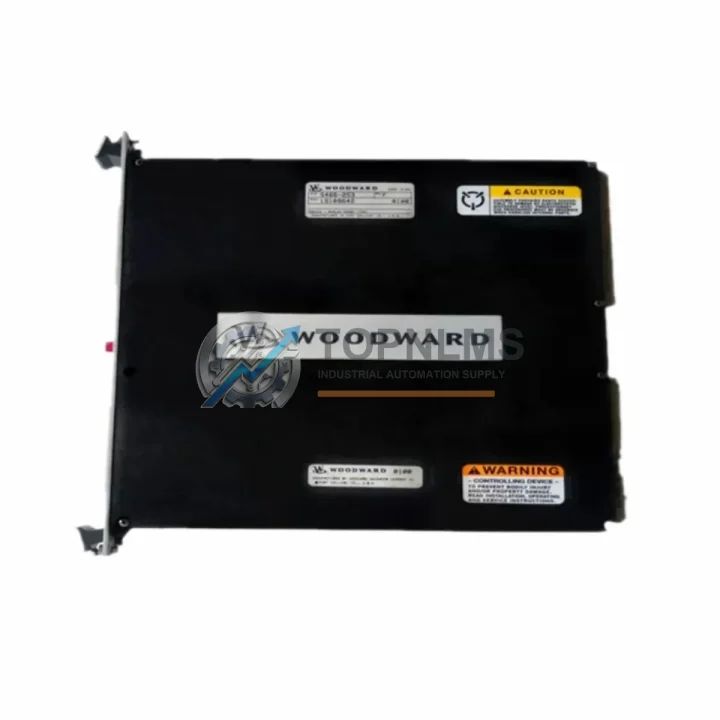

WOODWARD 5466-253 Ruggedized Analog TMR I/O Module

Product Overview

WOODWARD 5466-253 Ruggedized Analog TMR I/O Module: Industrial Resilience for Harsh Environments

The WOODWARD 5466-253 is a Triple Modular Redundancy (TMR) Analog Combo I/O Module engineered for mission-critical industrial control systems that demand uncompromising reliability. Designed to operate continuously in environments characterized by extreme temperatures, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, this module delivers the fault-tolerant signal processing that safety-critical infrastructure cannot afford to be without.

Built on WOODWARD’s proven TMR architecture, the 5466-253 employs three independent processing channels that vote on every I/O signal in real time. A single-channel fault does not interrupt operation — the system continues running while the fault is isolated and flagged for maintenance. This architecture is the gold standard for continuous process industries where an unplanned shutdown carries costs measured in tens of thousands of dollars per hour.

In oil and gas upstream and midstream facilities, the 5466-253 is routinely deployed inside explosion-proof control cabinets alongside WOODWARD’s NetCon 5000 and ProTech TPS safety controllers. It interfaces directly with pressure transmitters, thermocouple inputs, and 4–20 mA analog field devices, providing the high-integrity signal conditioning that turbine and compressor protection systems require. Its robust EMI shielding ensures clean signal acquisition even when installed adjacent to variable frequency drives, high-current motor starters, or large transformer banks.

For power generation and utility applications, the 5466-253 integrates seamlessly into WOODWARD’s MicroNet TMR and MicroNet Plus control platforms. It handles analog feedback from generator excitation systems, governor actuators, and load-sharing networks, maintaining sub-millisecond response times that keep synchronization stable across multi-unit generating sets. When paired with WOODWARD’s DSLC-2 Digital Synchronizer and Load Control modules, the complete control loop achieves the deterministic performance that grid-connected generation demands.

In water treatment and wastewater facilities, where continuous 24/7 operation is non-negotiable, the 5466-253 provides the analog I/O backbone for pump station automation, chemical dosing control, and SCADA integration. Its wide operating temperature range and conformal-coated PCB construction resist the corrosive atmospheres common in chlorination and aeration environments. The module’s galvanic isolation between field and logic sides protects the entire control system from ground loops and transient surges introduced by long field cable runs.

Mining and mineral processing operations subject control hardware to some of the most demanding conditions in industry — fine conductive dust, constant vibration from crushers and conveyors, and wide ambient temperature swings between day and night shifts. The 5466-253’s sealed construction and vibration-rated mounting make it a dependable choice for dragline control systems, conveyor drive automation, and ore processing plant DCS architectures. It works in concert with safety relay modules, terminal modules, and communication gateway modules to form a complete, standards-compliant safety instrumented system (SIS).

Steel mills and heavy metallurgical plants rely on the 5466-253 for analog signal management in rolling mill drives, ladle crane automation, and furnace temperature control loops. In these environments, the module operates alongside industrial power supplies rated for wide input voltage ranges, DIN-rail mounted relay output modules, and Profibus DP or Modbus RTU communication modules — all within the same hardened control cabinet. The TMR voting logic ensures that even a partial failure caused by thermal stress or vibration fatigue does not propagate to the process.

From a procurement standpoint, TOPNLMS maintains verified stock of the WOODWARD 5466-253, sourced through established industrial supply channels. Every unit undergoes incoming inspection and functional verification before dispatch. Orders are processed promptly, with international shipping available to major industrial regions. A 12-month warranty covers all units against manufacturing defects and functional failures under normal operating conditions, giving maintenance engineers and procurement managers the confidence to plan long-term spare parts strategies around this module.

Whether you are replacing a failed module in an operating plant, building out a new control system, or establishing a strategic spare parts inventory, the WOODWARD 5466-253 represents a technically sound, commercially reliable choice backed by TOPNLMS’s commitment to quality and responsive support.

Rugged Specifications Table

Comprehensive Protection Solutions

The WOODWARD 5466-253 does not operate in isolation — it is one component in a layered, defense-in-depth control architecture. In a typical TMR turbine control panel, it works alongside the WOODWARD MicroNet TMR CPU module, which provides the central processing and voting arbitration for the entire control system. Digital I/O is handled by companion modules such as the WOODWARD 5466-258 Digital Combo TMR I/O Module, ensuring that both analog and discrete field signals are processed with the same fault-tolerant rigor.

Power integrity is maintained by WOODWARD 5466-839 TMR Power Supply modules, which provide redundant, isolated DC power rails to the backplane — eliminating the power supply as a single point of failure. Communication between the TMR controller and the plant DCS or SCADA system is routed through WOODWARD 5466-1045 Communication Interface modules, supporting Modbus and other industrial protocols with the same redundancy philosophy applied to I/O.

At the field termination level, WOODWARD TMR terminal modules provide the marshalling interface between field cables and the backplane, simplifying maintenance and module replacement without disturbing field wiring. For applications requiring functional safety certification, the 5466-253 is complemented by WOODWARD ProTech TPS overspeed protection modules, which provide an independent, hardwired safety layer for turbine and compressor protection.

In broader plant architectures, the 5466-253 integrates with third-party safety relay modules, DIN-rail industrial power supplies, Profibus DP segment couplers, and surge protection terminal blocks — all of which are available through TOPNLMS to support complete control cabinet builds and spare parts programs.

Application in Critical Infrastructure

The WOODWARD 5466-253 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas production and processing facilities, it forms the analog I/O backbone of turbine-driven compressor trains, where any undetected signal fault could trigger a costly emergency shutdown or, worse, a safety incident. Its TMR architecture ensures that sensor failures are detected and annunciated without interrupting the protection function.

In power generation — including gas turbine, steam turbine, and hydro applications — the 5466-253 manages the analog feedback loops that govern governor response, load sharing, and excitation control. The module’s deterministic scan time and high-resolution analog conversion are essential for maintaining grid frequency stability during load transients.

In mining and mineral processing, where control hardware must survive years of exposure to conductive mineral dust, vibration from heavy machinery, and temperature extremes in open-pit and underground environments, the 5466-253’s ruggedized construction and conformal coating provide the service life that justifies its selection over standard commercial-grade alternatives.

Water and wastewater treatment plants depend on continuous, unattended operation of pumping and chemical dosing systems. The 5466-253 supports these applications by providing reliable analog signal processing for flow meters, level transmitters, and pH analyzers, with the fault tolerance to keep treatment processes running even during partial hardware failures.

In metallurgical and steel production environments, where furnace control, rolling mill automation, and crane management systems must operate reliably in the presence of intense electromagnetic fields from arc furnaces and induction heaters, the 5466-253’s EMI shielding and galvanic isolation deliver the signal integrity that process quality and worker safety depend on.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact TOPNLMS at [email protected] with your order reference and a description of the fault. We will arrange replacement or repair with minimal lead time to reduce your plant downtime.

Q2: How is each WOODWARD 5466-253 unit tested before shipment?
Every unit undergoes incoming inspection upon receipt at our facility, including visual inspection for physical damage, verification of part number and revision markings, and functional power-on testing where applicable. Units that do not pass inspection are quarantined and not offered for sale. This process ensures that the module you receive is in full working condition.

Q3: Is the WOODWARD 5466-253 compatible with my existing MicroNet TMR or NetCon 5000 system?
The 5466-253 is designed for WOODWARD’s TMR backplane architecture and is compatible with MicroNet TMR, MicroNet Plus, and NetCon 5000 control platforms. If you are unsure about revision compatibility or firmware requirements for your specific system configuration, contact our technical team with your existing system details and we will confirm compatibility before you place an order.

Q4: Can TOPNLMS support long-term spare parts supply for the WOODWARD 5466-253?
Yes. TOPNLMS specializes in industrial automation spare parts for critical infrastructure applications, including legacy and long-lifecycle WOODWARD control system components. We maintain stock of the 5466-253 and related TMR series modules to support planned maintenance programs, emergency replacements, and strategic inventory builds. Contact us to discuss volume pricing, reserved stock arrangements, or scheduled delivery programs tailored to your plant’s maintenance cycle.
