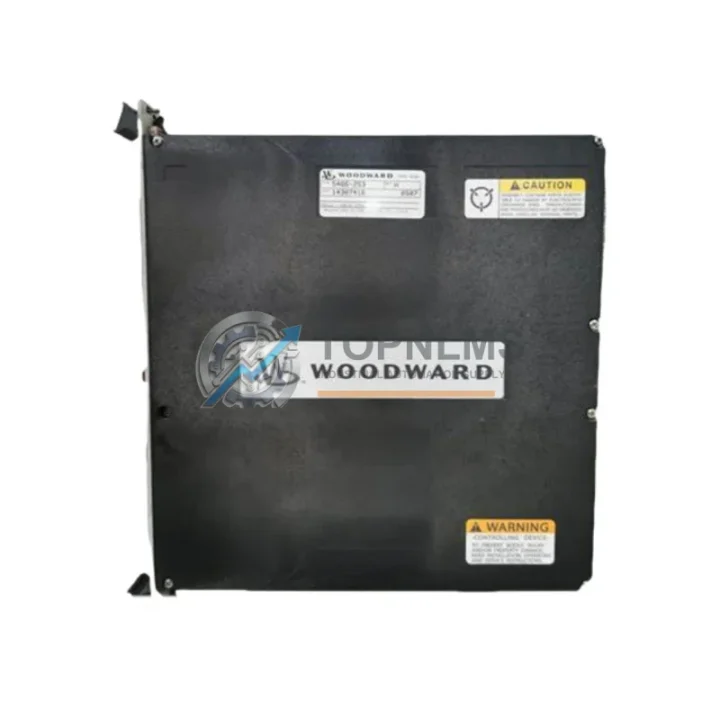

WOODWARD 5466-033 Ruggedized Governor Control Module

Product Overview

WOODWARD 5466-033 Ruggedized Governor Control Module: Industrial Resilience for Harsh Environments

The WOODWARD 5466-033 is a ruggedized turbine governor control module engineered for continuous, reliable operation in the most demanding industrial environments. Designed to withstand extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the precision speed and load control that critical turbine-driven systems demand — without compromise. Whether deployed in a remote power generation facility, an offshore platform, or a high-throughput petrochemical plant, the WOODWARD 5466-033 maintains stable governor response under conditions that would degrade lesser control hardware.

As part of WOODWARD’s proven Governor Series architecture, the 5466-033 integrates seamlessly into turbine control panels alongside companion modules such as the WOODWARD 5501-470 digital I/O expansion module and the WOODWARD 5463-471 analog input module, enabling a fully coordinated speed-sensing and actuator-drive loop. The module communicates over industry-standard serial and discrete signal interfaces, making it compatible with existing DCS backplanes and PLC-based supervisory layers from major automation vendors. In installations where a Siemens S7-300 or Allen-Bradley ControlLogix PLC handles plant-wide SCADA integration, the 5466-033 operates as a dedicated governor layer, offloading time-critical turbine control from the general-purpose PLC and ensuring deterministic response times even under heavy network load.

In high-vibration environments such as compressor stations, mining headframes, and steel mill auxiliary drives, the 5466-033’s conformal-coated PCB and robust terminal block design resist loosening and micro-fracture failures that commonly affect standard industrial modules. Its wide operating temperature range accommodates both the heat generated inside densely packed control cabinets and the cold-start conditions encountered in outdoor or unheated enclosures. When paired with a WOODWARD 2301D load-sharing and speed control unit or a WOODWARD MicroNet TMR safety-rated controller, the 5466-033 forms a redundant, fault-tolerant governor architecture suitable for SIL-rated applications in oil and gas, power generation, and water treatment facilities.

The module’s analog and discrete I/O channels interface directly with magnetic pickup speed sensors, 4–20 mA actuator drivers, and relay output modules, eliminating the need for intermediate signal conditioners in most retrofit applications. In control cabinets where Phoenix Contact or Weidmüller terminal blocks distribute field wiring, the 5466-033’s screw-clamp connectors accept standard 1.5 mm² to 2.5 mm² conductors, simplifying installation and reducing wiring errors during commissioning. For facilities running PROFIBUS DP or Modbus RTU communication backbones, the module’s serial port supports transparent pass-through to supervisory systems, enabling real-time governor status monitoring without interrupting the control loop.

Replacement and spare-parts planning is a critical consideration for any continuous-process facility. The WOODWARD 5466-033 is a direct form-fit-function replacement for aging governor modules in legacy turbine control panels, reducing downtime during scheduled maintenance windows. Facilities that maintain a strategic inventory of this module alongside complementary components — such as WOODWARD actuator driver cards, speed sensor interface modules, and 24 VDC industrial power supplies — can execute hot-swap replacements in under 30 minutes, minimizing production loss. Our stock is sourced from authorized channels, individually inspected, and function-tested prior to shipment to ensure every unit performs to OEM specification on arrival.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable turbine governor control does not exist in isolation — it depends on a well-engineered ecosystem of protection, power, and communication components working in concert. The WOODWARD 5466-033 is most effective when supported by a complete control architecture. In the same control cabinet, a WOODWARD 5501-470 digital I/O module handles discrete trip and permissive signals, while a WOODWARD 5463-471 analog input card conditions 4–20 mA process feedback from field transmitters. Upstream, a WOODWARD 2301D load-sharing controller coordinates multi-unit paralleling in generator applications, and a WOODWARD MicroNet TMR controller provides triple-modular-redundant safety shutdown logic for SIL 2 or SIL 3 rated installations.

On the power supply side, a 24 VDC industrial DIN-rail power supply with active power factor correction and wide-range AC input ensures the 5466-033 receives clean, stable power even when the facility’s distribution network experiences voltage sags or harmonic distortion from variable-frequency drives. Surge protection devices installed at the cabinet entry point guard against transient overvoltages on both power and signal lines. For signal integrity on long cable runs between the governor module and field-mounted actuators or speed sensors, shielded twisted-pair cables terminated with ferrite cores and proper ground bonding at one end prevent common-mode noise from corrupting the control signal.

In facilities where safety relay modules and emergency shutdown (ESD) systems must interface with the governor loop, the 5466-033’s discrete output channels connect directly to safety relay input terminals, enabling the ESD system to command a controlled turbine trip without passing through the PLC scan cycle. Communication modules such as a Modbus RTU-to-PROFIBUS DP gateway allow the governor’s status data — speed, load, actuator position, and fault codes — to be transmitted to the plant DCS historian for trend analysis and predictive maintenance scheduling. Terminal blocks, cable ducts, and DIN rail mounting hardware complete the cabinet build, ensuring a clean, maintainable installation that field technicians can service safely during planned outages.

Application in Critical Infrastructure

The WOODWARD 5466-033 governor control module is deployed across a broad spectrum of critical infrastructure sectors where turbine-driven equipment forms the backbone of continuous operations. In oil and gas facilities — including upstream compression stations, midstream pipeline booster stations, and downstream refinery utilities — gas turbine-driven compressors rely on precise governor control to maintain pipeline pressure within tight operating bands. A governor module failure in this context can trigger an unplanned compressor trip, causing pressure upsets that propagate across the pipeline network and result in significant production losses and safety incidents.

In power generation plants, both simple-cycle and combined-cycle configurations depend on the governor module to synchronize turbine speed to grid frequency during startup and to regulate load sharing between parallel generating units. The 5466-033’s fast response time and stable droop characteristics make it suitable for both base-load and peaking applications. Mining operations that rely on turbine-driven ventilation fans, hoists, or water pumps benefit from the module’s vibration tolerance and wide temperature range, which accommodate the harsh underground or open-pit environment without requiring climate-controlled enclosures.

Water and wastewater treatment facilities operating large centrifugal pumps driven by steam or gas turbines use the 5466-033 to maintain precise flow rates through the treatment process. In metallurgical and steel mill applications, turbine-driven blowers supplying combustion air to blast furnaces or electric arc furnace off-gas handling systems require continuous, uninterrupted governor control — any speed excursion can disrupt the combustion process and damage refractory linings. The module’s robust design and proven field reliability make it a trusted choice for maintenance engineers who cannot afford unplanned downtime in these high-consequence environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the WOODWARD 5466-033?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to OEM specification within the warranty period, we will repair or replace the unit at no additional cost. The warranty applies to both new surplus and tested-refurbished units as labeled on your order confirmation.

Q2: How is each unit tested before shipment?
Every WOODWARD 5466-033 unit undergoes a pre-shipment functional inspection that includes visual examination for physical damage, power-on verification, I/O channel continuity checks, and communication port validation where applicable. Tested-refurbished units additionally undergo a full operational cycle test against OEM reference parameters. A test report is available upon request for quality-assurance documentation purposes.

Q3: Is the 5466-033 compatible with my existing WOODWARD governor system and third-party DCS?
The 5466-033 is designed as a direct replacement within the WOODWARD Governor Series control architecture and maintains backward compatibility with standard wiring harnesses and connector pinouts used in that series. For DCS integration, the module’s serial communication port supports Modbus RTU, which is natively supported by most major DCS platforms. If your installation uses a proprietary communication protocol, please contact our technical team with your system details for a compatibility assessment before ordering.

Q4: Can you support long-term or repeat supply of the 5466-033 for our maintenance program?
Yes. We maintain strategic stock of the WOODWARD 5466-033 and related Governor Series components to support planned maintenance programs, annual turnaround schedules, and emergency spare requirements. For facilities that require guaranteed availability under a blanket purchase order or consignment arrangement, please contact our sales team to discuss a supply agreement tailored to your maintenance cycle and inventory policy.
