Woodward 5464-654 Replacement for MicroNet Series

Product Overview

Woodward 5464-654 Replacement for MicroNet Series: Smooth Transition from Legacy Discrete Output Systems

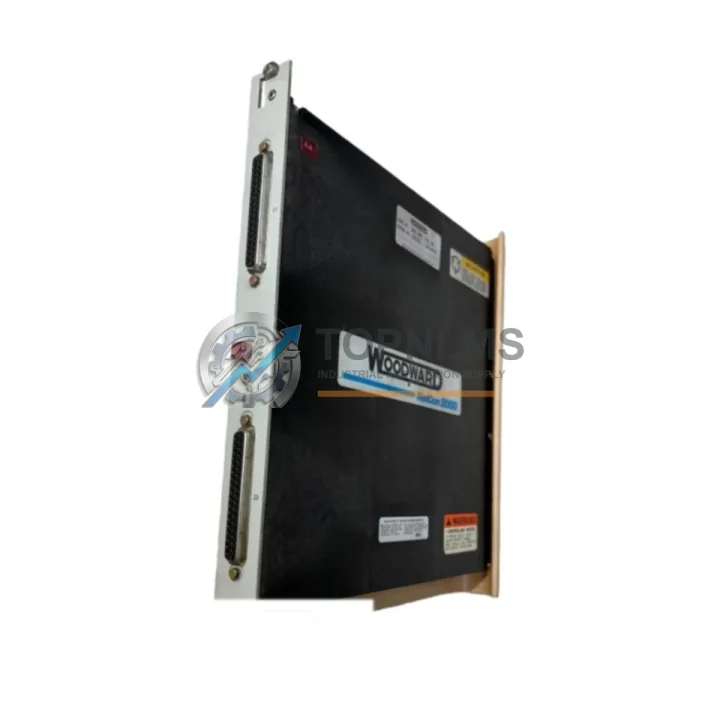

The Woodward 5464-654 is a Discrete Output Module designed for the MicroNet Series turbine and generator control platform. As Woodward progressively phases out legacy MicroNet hardware, facilities operating aging control cabinets face increasing pressure to source reliable replacement modules before critical spares become unavailable. The 5464-654 serves as a direct drop-in replacement for failed or end-of-life discrete output cards within the MicroNet rack architecture, enabling plant engineers to restore full control functionality without redesigning the control system or rewriting application logic.

Industrial sites running gas turbines, steam turbines, compressors, or generator sets on the Woodward MicroNet platform will find the 5464-654 essential for maintaining output channel integrity. The module interfaces directly with the MicroNet controller backplane, preserving existing wiring terminations, I/O channel assignments, and relay output configurations. Field engineers can swap the module during a planned maintenance window with minimal downtime, as the replacement requires no changes to the existing MicroNet application program or I/O mapping tables.

When upgrading from an earlier-generation discrete output card — such as those used in the original MicroNet Plus or MicroNet Simplex configurations — the 5464-654 maintains backward-compatible signal levels and relay contact ratings. This means existing field wiring to solenoid valves, actuator relays, alarm annunciators, and trip circuits can remain connected without re-termination. The module’s output channels are individually configurable for normally open or normally closed contact logic, matching the behavior of the module it replaces.

For sites undertaking a broader MicroNet system refresh, the 5464-654 is commonly deployed alongside the Woodward MicroNet controller processor module, the MicroNet analog input module (5464-648), and the MicroNet analog output module (5464-650). Engineers performing a full I/O chassis upgrade will also typically source the MicroNet power supply module and the MicroNet communication gateway module to ensure the entire rack operates on matched firmware revisions. The 5464-654 is compatible with standard MicroNet rack assemblies and does not require a dedicated slot position, offering flexibility in cabinet layout planning.

In distributed control architectures where the MicroNet system interfaces with a plant-wide DCS via Modbus RTU or Modbus TCP, the discrete output module’s relay contacts feed directly into field junction boxes without requiring signal conditioning. Sites using Profibus DP or DeviceNet communication backbones for peripheral I/O expansion can continue to use existing network topology, as the 5464-654 operates independently of the communication layer. For installations where the MicroNet system connects to a SCADA platform via OPC-DA or OPC-UA, the discrete output states are mapped through the MicroNet controller’s data table and require no additional configuration after module replacement.

Physical installation follows the standard MicroNet module insertion procedure: power down the rack, slide the 5464-654 into the target slot, secure the front-panel locking tab, and restore power. The module performs a self-diagnostic on startup and reports channel status to the MicroNet controller within the normal scan cycle. No firmware flashing or hardware jumper changes are required for standard replacement applications. For sites where the original module was configured with custom output pulse timing or latching relay logic, these parameters are stored in the MicroNet controller application and are automatically applied to the replacement module upon system restart.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MicroNet discrete output module replacement rarely occurs in isolation. During the same maintenance window, plant engineers typically audit adjacent modules in the rack to identify other components approaching end-of-life. The Woodward MicroNet analog input module (5464-648) and analog output module (5464-650) are frequently replaced alongside the 5464-654, as all three share the same backplane slot format and are subject to the same aging failure modes — capacitor degradation, relay contact wear, and connector oxidation.

For sites where the MicroNet controller processor module itself is being upgraded, the 5464-654 discrete output module is fully compatible with the replacement processor without requiring I/O reconfiguration. Engineers sourcing a full rack refresh will also need the MicroNet power supply module to ensure stable 24 VDC rail voltage across all I/O slots. In control cabinets where the MicroNet rack shares enclosure space with third-party drives or motor starters, a signal isolator or relay output buffer module is recommended between the 5464-654 output contacts and inductive loads to protect the relay contacts from voltage spikes.

Sites migrating from a standalone MicroNet Simplex configuration to a MicroNet TMR (Triple Modular Redundant) architecture will require three matched sets of discrete output modules, including the 5464-654, to populate all three redundant I/O racks. The MicroNet communication gateway module is also required in TMR configurations to synchronize output states across all three control channels. For facilities adding a new HMI workstation to the MicroNet system, the existing discrete output module wiring does not need to change — the HMI interfaces with the MicroNet controller via Ethernet or serial link, leaving the I/O layer undisturbed.

Programming cable and configuration software requirements should also be considered during the upgrade. The Woodward MicroNet programming cable (USB-to-serial adapter with MicroNet-compatible connector) is required for any application-level changes, though standard module replacement does not require reprogramming. Spare terminal blocks and DIN rail mounting hardware for the control cabinet are recommended consumables to have on hand during the retrofit to avoid delays caused by damaged or corroded termination hardware.

Retrofit Guidance FAQ

Q: Can I replace the 5464-654 without powering down the entire MicroNet system?
A: Hot-swap capability depends on the specific MicroNet configuration and application. For safety-critical turbine control applications, a controlled shutdown and restart is strongly recommended to ensure output channel states are correctly initialized after module insertion. Consult the MicroNet hardware manual for your specific platform variant before attempting live replacement.

Q: Will my existing field wiring connect directly to the 5464-654?
A: Yes. The 5464-654 uses the same terminal block pinout as the legacy discrete output module it replaces. Existing wiring to solenoid valves, trip relays, alarm circuits, and actuator contactors can remain connected without modification.

Q: Does the replacement module require firmware updates?
A: The 5464-654 is compatible with current MicroNet firmware revisions. In most replacement scenarios, no firmware update is required. If your MicroNet controller is running a significantly older firmware version, consult Woodward documentation or contact TOPNLMS for compatibility guidance before installation.

Q: How does the 5464-654 communicate with the MicroNet controller?
A: The module communicates via the MicroNet rack backplane — no external communication wiring is required. The controller reads and writes discrete output states through the backplane data bus within the normal scan cycle.

Q: Can the 5464-654 be used in a Profibus DP or Modbus TCP network?
A: The 5464-654 itself is a backplane-connected module and does not directly participate in fieldbus communication. The MicroNet controller handles all Profibus DP, Modbus RTU, or Modbus TCP communication with external systems. The discrete output states are exposed to the network through the controller’s data table, not through the module directly.

Q: What physical space does the 5464-654 require in the control cabinet?
A: The module occupies a single MicroNet rack slot. No additional DIN rail space or external mounting is required. The front-panel depth is identical to other MicroNet I/O modules, ensuring compatibility with existing cabinet door clearances.

Q: Is reprogramming required after replacing the module?
A: No. The MicroNet application program is stored in the controller processor module, not in the I/O modules. Replacing the 5464-654 does not affect the application program. The controller will automatically recognize the replacement module and resume normal operation after restart.

Warranty Assurance

Every Woodward 5464-654 Discrete Output Module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification testing to confirm backplane connector integrity, relay output continuity, and self-diagnostic pass status. Modules that do not pass pre-shipment testing are not dispatched.

In the event of a warranty claim, TOPNLMS provides replacement module dispatch within 3 business days of claim confirmation. Customers are not required to return the defective module before a replacement is shipped for verified warranty cases, minimizing plant downtime during the claims process. All warranty correspondence is handled directly by our technical sales team at [email protected].

TOPNLMS maintains bonded inventory of MicroNet series modules in Xiamen, China, enabling fast dispatch to customers in Asia-Pacific, the Middle East, and Europe. Standard international shipping transit times range from 3 to 7 business days depending on destination. Express courier options are available for emergency replacement requirements. All shipments include a packing list, test report, and warranty certificate.

For bulk procurement, long-term supply agreements, or project-based sourcing of MicroNet replacement modules, contact our industrial automation parts team directly. Volume pricing and reserved inventory arrangements are available for EPC contractors, OEM integrators, and plant maintenance departments managing multi-site MicroNet installations.
