WOODWARD 5464-653 Replacement/Upgrade for MicroNet I/O

Product Overview

WOODWARD 5464-653 Replacement/Upgrade Solution for MicroNet I/O: Seamless Transition from Legacy Discrete Output Systems

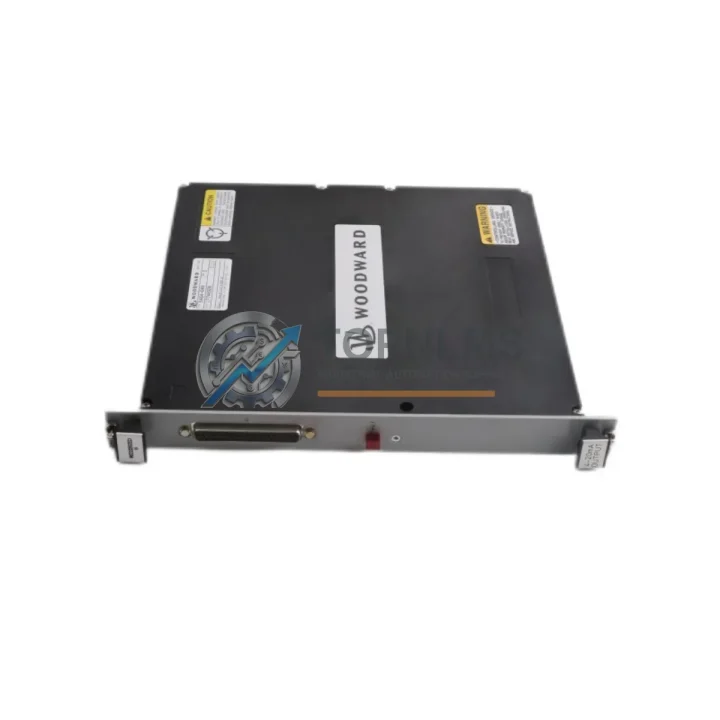

The WOODWARD 5464-653 is a 32-channel discrete output module designed for the MicroNet Series turbine and generator control platform. As aging MicroNet I/O racks approach end-of-service life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to secure verified replacement units that maintain full wiring compatibility, preserve existing control logic, and minimize unplanned downtime during critical power generation or industrial process operations.

TOPNLMS maintains ready stock of the WOODWARD 5464-653 and its closely related MicroNet I/O family, sourced through established industrial distribution channels and subject to full functional inspection prior to dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the WOODWARD 5464-653 is rarely an isolated action. In most MicroNet-based turbine control cabinets, the discrete output module works in close coordination with several other I/O and control components. During a planned outage or emergency swap, site engineers typically also evaluate the condition of the WOODWARD 5464-652 (32-channel discrete input module) installed in the adjacent rack slot, since input and output modules age at similar rates under the same thermal and vibration conditions.

Power integrity is equally critical. The MicroNet rack relies on a dedicated WOODWARD 5464-610 or equivalent power supply module to deliver regulated voltage to all I/O cards. A failing PSU can cause intermittent discrete output faults that are misdiagnosed as module failures, so inspecting the power supply during the same maintenance window is strongly recommended.

For sites running MicroNet TMR (Triple Modular Redundant) configurations, the WOODWARD 5464-654 and related TMR output modules must be replaced in matched sets to preserve voting logic integrity. Replacing only one of three redundant output modules without verifying the others can introduce latent faults that only surface during a system diagnostic cycle.

Communication between the MicroNet controller and the I/O rack is managed through the backplane bus, but many installations also use a WOODWARD 5464-618 communication interface module to bridge MicroNet data to a plant DCS or SCADA system via Modbus RTU or Ethernet/IP. Verifying this interface module’s firmware version and physical condition during the same service visit prevents communication dropouts after the output module swap.

On the field wiring side, terminal blocks and marshalling panels connected to the 5464-653’s 32 output channels should be inspected for corrosion, loose terminations, or insulation degradation — particularly in high-humidity or high-vibration environments such as gas turbine enclosures or marine generator rooms. Replacing the module without addressing wiring integrity issues will not resolve nuisance trip events.

For sites considering a broader MicroNet platform migration — for example, transitioning from MicroNet to WOODWARD MicroNet DSLC or a third-party PLC platform — the 5464-653 can serve as a bridge solution, maintaining current control architecture while the migration project is engineered and budgeted. This approach avoids forced emergency upgrades and allows a controlled, documented transition with full FAT (Factory Acceptance Testing) and SAT (Site Acceptance Testing) cycles.

TOPNLMS also stocks related MicroNet components including the WOODWARD 5464-619 analog input module and WOODWARD 5464-620 analog output module, which are commonly replaced alongside discrete I/O modules during comprehensive MicroNet I/O rack refurbishments.

Retrofit Guidance FAQ

Q: Will replacing the 5464-653 require changes to my existing GAP or ToolKit control program?
A: No. The 5464-653 is a direct slot-for-slot replacement within the MicroNet I/O rack. The backplane address and channel mapping remain identical, so no changes to the control application are required. The MicroNet controller will recognize the new module automatically upon power-up.

Q: Can I replace the module while the turbine is online (hot-swap)?
A: MicroNet I/O modules are generally not designed for live hot-swap in standard (non-TMR) configurations. A controlled shutdown of the affected I/O rack section is recommended. For TMR systems, consult the WOODWARD MicroNet TMR installation manual for the approved module replacement procedure under redundant operation.

Q: What wiring changes are needed?
A: None. The 5464-653 uses the same terminal block interface as the original module. Existing field wiring can be disconnected from the old module’s terminal block and reconnected to the replacement unit without modification. Label and photograph all wiring before removal as a standard site practice.

Q: Is the 5464-653 compatible with both 24 VDC and 120 VAC output field devices?
A: Output voltage compatibility depends on the specific variant and field wiring configuration. Confirm the output voltage rating of your installed module against the replacement unit’s datasheet before installation. TOPNLMS technical support can assist with variant verification prior to order.

Q: How do I verify the module is functioning correctly after installation?
A: Use the WOODWARD ToolKit software to perform a channel-by-channel output force test with the turbine in a safe, offline state. Verify that each of the 32 output channels responds correctly to commanded states before returning the unit to service.

Q: What if my MicroNet rack chassis or backplane is also damaged?
A: TOPNLMS stocks MicroNet rack chassis and backplane assemblies. Contact us with your full rack configuration (number of slots, power supply type, controller model) and we will identify compatible chassis components to support a complete rack rebuild if required.

Warranty Assurance

Every WOODWARD 5464-653 unit dispatched by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point inspection process including visual examination for physical damage, connector pin integrity check, board-level inspection for corrosion or component damage, and functional verification where test equipment permits.

In the event of a warranty claim, TOPNLMS will arrange priority replacement dispatch to minimize your site’s exposure to extended downtime. Our after-sales response target is within 24 hours of a confirmed warranty fault report. Replacement units are dispatched from our Xiamen warehouse via DHL Express, FedEx International Priority, or equivalent expedited freight service, with full tracking provided.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformity, packing list, and commercial invoice with HS code declaration to support customs clearance in your destination country. We serve industrial clients across Southeast Asia, the Middle East, Europe, and the Americas with consistent lead times and reliable after-sales support.

To confirm stock availability, request a formal quotation, or discuss technical compatibility for your specific MicroNet installation, contact our team directly.
