WOODWARD 5464-643 Original Industrial Spare MicroNet Compatible

Product Overview

WOODWARD 5464-643 Original Industrial Spare MicroNet Compatible: Ensuring System Stability in Critical Control Environments

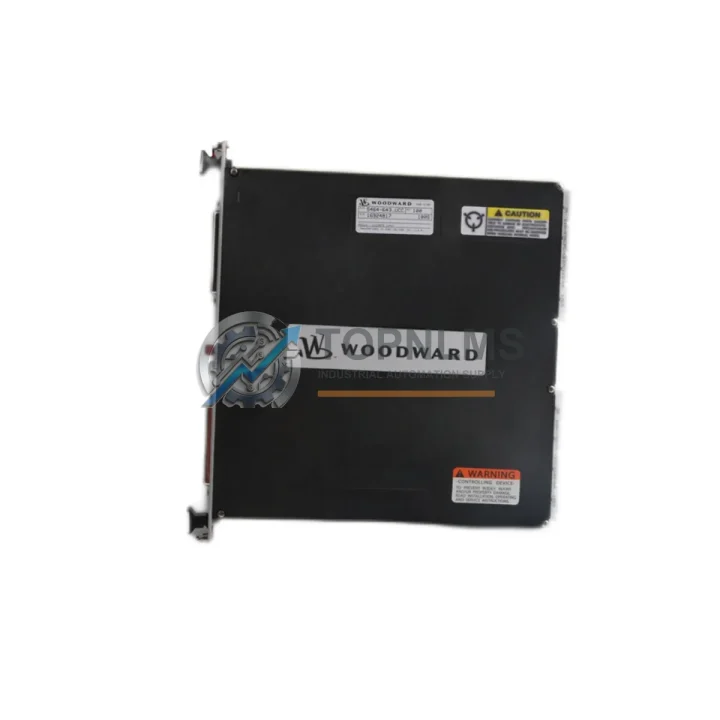

The WOODWARD 5464-643 is an original discrete input module engineered for the MicroNet series turbine and industrial control platform. Designed to deliver reliable digital signal acquisition in demanding power generation, oil & gas, and heavy industrial environments, this module is a mission-critical spare for any facility operating WOODWARD MicroNet-based governor and control systems. Sourced directly from verified supply channels, each unit undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock and deploy with zero hesitation.

In industrial facilities where unplanned downtime translates directly into production loss and safety risk, having the right spare module on the shelf is not optional — it is a core maintenance discipline. The 5464-643 discrete input module captures digital on/off signals from field devices such as limit switches, proximity sensors, emergency shutdown contacts, and valve position feedback circuits. Its role within the MicroNet control cabinet is foundational: without accurate discrete input data, the governor controller cannot execute safe sequencing, load management, or protective trip logic.

Whether you are managing a gas turbine generator set, a steam turbine drive, or a compressor train, the 5464-643 represents the kind of original-specification replacement that keeps your control architecture intact without requiring firmware reconfiguration or system re-commissioning. Compatibility with the existing MicroNet backplane and I/O bus means installation is a direct swap — reducing mean time to repair (MTTR) and allowing your team to restore full control capability within a single maintenance window.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any MicroNet-based control system extends well beyond replacing a single module. When scheduling a planned outage or responding to a fault alarm on the 5464-643, experienced maintenance teams treat the event as an opportunity to audit the entire control cabinet and associated field wiring. This approach minimizes the risk of a secondary failure occurring shortly after the primary repair — a scenario that is both costly and avoidable.

During a discrete input module replacement, it is standard practice to simultaneously inspect the WOODWARD MicroNet analog input module (such as the 5464-642 or equivalent series analog I/O card) that shares the same chassis slot group, since both modules are exposed to identical thermal cycling and vibration loads. The MicroNet power supply module — typically a 24 VDC regulated supply feeding the I/O backplane — should have its output voltage and ripple verified; a degraded power supply is a common root cause of intermittent discrete input faults that are misdiagnosed as module failures.

Field wiring terminations at the MicroNet terminal board or marshalling panel should be re-torqued and inspected for oxidation, particularly on the discrete input signal commons and shield grounds. If your facility uses signal isolators or signal conditioners between field devices and the MicroNet input channels, these should be tested for drift — a failing isolator can cause false discrete states that trigger nuisance trips or mask genuine process alarms.

The MicroNet communication module (Ethernet or serial gateway card) that links the governor controller to the plant DCS or SCADA system should be checked for firmware currency and connector integrity during the same maintenance window. Equally, the MicroNet controller CPU module — the core processing card that executes governor logic — benefits from a visual inspection for capacitor bulge, corrosion on edge connectors, and battery backup status if real-time clock retention is required.

For facilities running extended turbine campaigns, it is advisable to maintain a minimum bench stock of the 5464-643 discrete input module alongside the MicroNet speed input module (magnetic pickup signal processing card), the MicroNet relay output module for trip and alarm circuits, and the MicroNet analog output module for actuator positioning signals. Collectively, these four module types cover the majority of field-replaceable failure modes in a MicroNet governor system and represent a practical minimum spare parts inventory for any site with a single-string critical turbine.

Fuse modules and DIN-rail fuse holders protecting individual discrete input field loops are frequently overlooked during routine inspections. A blown fuse on a discrete input channel produces the same symptom as a failed module — a stuck-off input state — and should always be ruled out before condemning the 5464-643 itself. Keeping a stock of the correct fuse ratings (typically 1A or 2A fast-blow, depending on field device supply voltage) eliminates unnecessary module replacements and reduces spare parts expenditure.

Strategic Replacement Solutions

The WOODWARD 5464-643 is a direct form-fit-function replacement for the original module installed in MicroNet control systems. Because WOODWARD maintains backward compatibility across MicroNet hardware revisions, the 5464-643 can be installed into existing chassis without requiring changes to the application software, I/O configuration files, or calibration parameters. This is a significant operational advantage compared to migrating to a newer control platform, where re-engineering costs, re-commissioning time, and operator retraining can easily exceed the value of the original equipment.

For facilities managing aging MicroNet installations — systems that may have been in continuous service for 15 to 25 years — the availability of original-specification spare modules like the 5464-643 is the primary enabler of a cost-effective life extension strategy. Rather than committing to a full control system upgrade during a major turnaround, maintenance managers can selectively replace degraded I/O modules, restore system reliability to as-new performance levels, and defer capital expenditure by 5 to 10 years. This approach is well-established in the power generation and petrochemical sectors, where control system replacement projects carry significant schedule risk and regulatory approval requirements.

When sourcing the 5464-643 as a replacement, procurement teams should verify that the supplier provides a documented pre-shipment test report, confirms the hardware revision level, and offers a minimum 12-month warranty covering both parts and labor for module-level defects. TOPNLMS meets all three criteria, with each unit tested against WOODWARD functional specifications prior to dispatch and supported by a 12-month warranty from the date of delivery.
