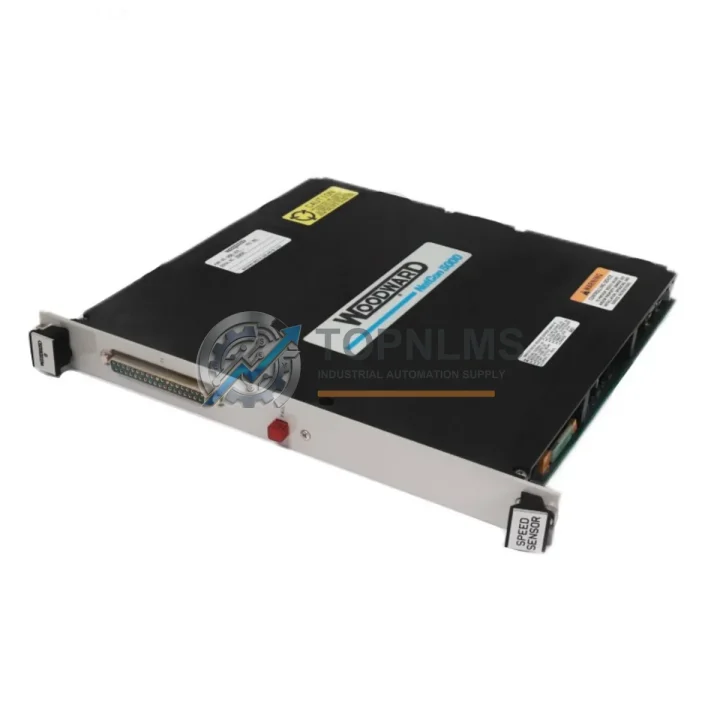

WOODWARD 5464-414 Original Industrial Spare DMP Compatible

Product Overview

WOODWARD 5464-414 Original Industrial Spare DMP Compatible: System Stability Through Precision Speed Sensing

In high-stakes industrial environments — gas turbines, steam turbines, reciprocating compressors, and rotating machinery — speed sensing accuracy is not a convenience; it is the foundation of system stability. The WOODWARD 5464-414 Digital Micro Process (DMP) speed sensor module is an original spare part engineered to maintain the precise rotational feedback that WOODWARD governors and control systems depend on for safe, continuous operation. Whether you are managing a planned shutdown, responding to an unscheduled trip, or building a strategic spare parts inventory, the 5464-414 is a mission-critical component that deserves priority placement in your maintenance program.

WOODWARD’s Digital Micro Process platform has been deployed across power generation, oil and gas, marine propulsion, and industrial compression applications for decades. The 5464-414 module integrates directly into DMP-series control cabinets, providing the governor with real-time shaft speed data used for startup sequencing, load control, overspeed protection, and shutdown logic. A failed or degraded speed sensor is one of the most common causes of nuisance trips and unplanned outages in turbomachinery — stocking a verified original replacement eliminates that risk entirely.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a turbine or compressor control cabinet is only as reliable as its weakest module. When scheduling a planned outage or responding to a speed-related fault, the 5464-414 should never be inspected in isolation. A comprehensive inspection of the DMP control cabinet should include the WOODWARD 5464-410 power supply module, which provides regulated DC power to all DMP cards — a degraded power supply can cause intermittent speed signal errors that mimic sensor failure. Simultaneously, verify the condition of the WOODWARD 5464-416 analog output module, which translates governor commands into actuator signals; if the speed sensor is being replaced due to a trip event, the analog output module may have been exposed to the same transient conditions.

The magnetic pickup (MPU) probe mounted on the gear tooth wheel is the upstream source for the 5464-414’s input signal. Inspect and, if necessary, replace the WOODWARD MPU speed pickup sensor (typically a passive variable-reluctance type) at the same time — a worn or misaligned MPU will cause the new module to produce erratic readings immediately after installation. Check the shielded signal cable between the MPU and the DMP cabinet for insulation damage, connector corrosion, and proper grounding; unshielded or poorly grounded MPU cables are a leading cause of speed signal noise in industrial environments.

Within the DMP cabinet, inspect the WOODWARD 5464-412 digital input/output module for contact wear on discrete I/O channels used for overspeed trip relays and run-permissive signals. The WOODWARD 5464-418 communication module — if present for Modbus or proprietary serial communication to the plant DCS — should be checked for firmware version compatibility after any card replacement. Terminal blocks and wiring harnesses inside the cabinet deserve attention as well: loose or oxidized terminals on the speed signal circuit can introduce resistance that degrades signal quality even with a new 5464-414 installed.

For facilities operating multiple turbine or compressor trains, a proactive spare parts strategy should include at minimum one 5464-414 per control system, alongside a WOODWARD 5009 digital control or WOODWARD 505 digital governor spare card set if those platforms are in use at the same site. Cross-referencing your installed base against available spare modules during annual maintenance windows — rather than waiting for a failure — is the single most effective way to reduce mean time to repair (MTTR) and protect production continuity.

Strategic Replacement Solutions

The WOODWARD 5464-414 is a direct OEM replacement for the original module installed in DMP-series control systems. Unlike aftermarket alternatives, the genuine 5464-414 requires no firmware modification, calibration offset adjustment, or wiring adaptation — it is a plug-and-replace solution that restores the control system to its original certified configuration. This is particularly important in regulated industries such as power generation and offshore oil and gas, where control system modifications must be documented and approved; using an original OEM spare eliminates the change-management burden associated with non-OEM substitutions.

For aging DMP installations where the original control platform is approaching end-of-support, stocking the 5464-414 alongside other DMP series modules extends the operational life of the existing system without requiring a costly full-system upgrade. Many facilities have successfully operated DMP-based governor systems well beyond their nominal design life by maintaining a disciplined spare parts inventory — deferring capital expenditure while preserving system reliability. The 5464-414’s continued availability as a genuine OEM part makes this strategy viable for the near to medium term.

When a speed sensor fault causes an unplanned shutdown, every hour of downtime carries significant financial and operational cost. Having a 5464-414 on the shelf — tested, documented, and ready to install — compresses the repair cycle from days (procurement lead time) to hours (physical replacement and recommission). Our pre-shipment function testing and 12-month warranty provide additional assurance that the replacement module will perform correctly from the first startup.

Support FAQ

Q1: Is the WOODWARD 5464-414 compatible with all DMP series control cabinets?
The 5464-414 is designed for WOODWARD Digital Micro Process (DMP) governor control systems. Compatibility depends on your specific DMP cabinet configuration and firmware revision. We recommend confirming your cabinet part number and DMP software version before ordering. Our technical team can assist with compatibility verification upon request.

Q2: What testing is performed before shipment?
Every 5464-414 unit is function-tested prior to dispatch to verify signal processing integrity and card communication. A test report is available upon request. Units are packaged in anti-static protective packaging to prevent ESD damage during transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed promptly with replacement or refund options.

Q4: How should I manage spare parts inventory for a DMP-based control system?
Best practice is to maintain at least one spare of each unique card type installed in your DMP cabinet — including the speed sensor module (5464-414), power supply module, and I/O modules. For critical or single-train assets, consider holding two spares of the highest-failure-risk cards. Annual inventory audits aligned with planned maintenance outages help ensure spare stock remains current and that stored modules are rotated to prevent shelf degradation.
