Woodward 5464-335 Original Industrial Spare MicroNet Compatible

Product Overview

Woodward 5464-335 Original Industrial Spare MicroNet Compatible: System Stability & Turbine Governor Maintenance Value

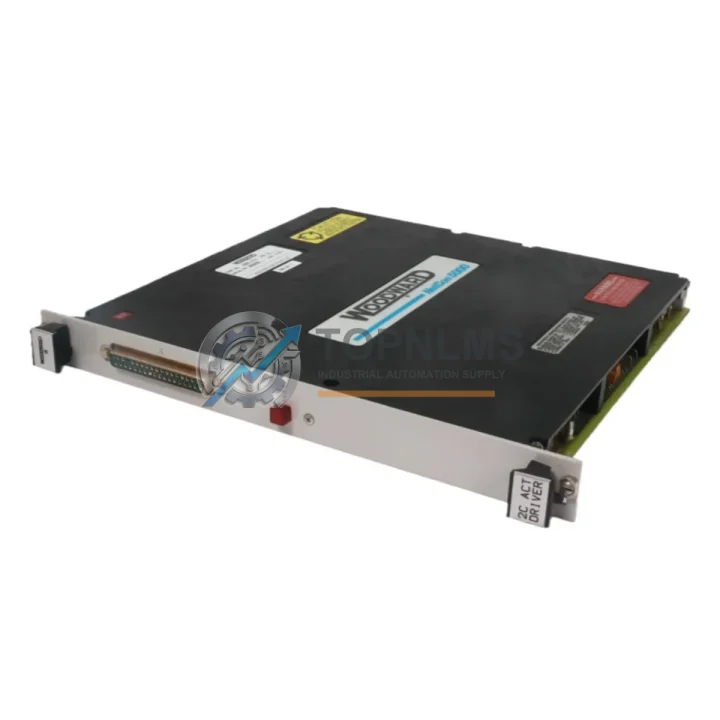

The Woodward 5464-335 is an original Analog I/O Module engineered for the MicroNet turbine governor control platform — one of the most widely deployed digital control architectures in gas turbine, steam turbine, and compressor applications worldwide. In industrial facilities where continuous uptime is non-negotiable, the 5464-335 occupies a critical position in the control cabinet: it bridges the physical process — temperatures, pressures, valve positions, speed signals — with the digital control logic that governs turbine behavior. A failed or degraded analog I/O module can trigger unplanned shutdowns, erratic governor response, or loss of critical process visibility, all of which translate directly into production losses and safety risks.

Sourcing a verified original replacement unit before failure occurs is the single most effective strategy for protecting turbine availability. TOPNLMS maintains ready stock of the Woodward 5464-335 to support emergency replacement, scheduled overhaul, and long-term spare parts inventory programs for MicroNet-based control systems.

Critical Technical Specs

Preventive Maintenance Strategy

Turbine governor control systems are not single-component machines. The 5464-335 Analog I/O Module operates as part of a tightly integrated MicroNet control cabinet, and its reliable performance depends on the health of every adjacent component in the signal chain. When planning a scheduled outage, overhaul, or predictive maintenance inspection, maintenance engineers should treat the 5464-335 replacement as an opportunity to audit the entire control system for latent wear and degradation.

Begin with the MicroNet controller backplane — the chassis that hosts the 5464-335 and all other I/O modules. Backplane connector pins corrode over years of thermal cycling, and a compromised backplane can cause intermittent module faults that are difficult to diagnose. Inspect and, if necessary, replace the backplane during the same maintenance window as the analog I/O module swap.

The MicroNet power supply module (such as the Woodward 5464-xxx series PSU) should be checked for output voltage stability and ripple. An aging power supply delivering marginal 24 VDC to the backplane bus will cause analog measurement drift and erratic output signals — symptoms that are frequently misdiagnosed as analog I/O module failure. Replacing a worn PSU alongside the 5464-335 eliminates this ambiguity.

Analog signal integrity depends heavily on the field wiring terminal blocks and signal cables connecting process transmitters to the MicroNet I/O chassis. Inspect all terminal connections for oxidation, loose crimps, and insulation degradation. In high-vibration turbine environments, terminal screws back out over time, introducing resistance that corrupts 4–20 mA loop signals. Re-torque or replace terminal blocks as part of the same service event.

For systems using thermocouple or RTD inputs routed through the 5464-335, signal isolators and input conditioning modules in the signal chain should be tested for drift. A degraded isolator will introduce offset errors that appear as process measurement anomalies even after the I/O module is replaced. Verify isolator calibration or replace units that are beyond their recommended service interval.

The MicroNet digital I/O modules sharing the same chassis — responsible for discrete speed pickup signals, solenoid valve commands, and alarm relay outputs — should be inspected for contact wear and firmware version alignment. Mismatched firmware between I/O modules and the main controller can cause communication faults that affect the entire governor system, not just the analog channels.

Actuator output signals from the 5464-335 drive electro-hydraulic actuators and servo valves that control fuel flow and inlet guide vanes. If the actuator or its associated LVDT position feedback module is worn, replacing the analog I/O module alone will not restore full governor performance. Inspect actuator response time and LVDT calibration as part of the commissioning check after module replacement.

Finally, review the MicroNet communication module (typically a Modbus RTU or Ethernet gateway card) that links the governor controller to the plant DCS or SCADA system. Communication module failures can mask analog I/O faults by preventing alarm data from reaching the control room, delaying fault detection and increasing the risk of undetected degradation. Confirm communication module health and update firmware if applicable during the same maintenance window.

A comprehensive spare parts kit for a MicroNet-based turbine governor system should include: the 5464-335 Analog I/O Module, at least one spare power supply module, a set of terminal block assemblies, signal isolators for critical measurement loops, and a spare communication module. This kit approach minimizes the number of separate procurement events and ensures that all critical components can be replaced within a single planned outage window.

Strategic Replacement Solutions

The Woodward 5464-335 has been in service in turbine governor applications for many years, and a significant installed base of MicroNet systems continues to operate in power generation, oil & gas, and industrial process facilities globally. As OEM production of legacy MicroNet modules transitions, sourcing verified original replacement units becomes increasingly critical for operators who need to maintain system compatibility without undertaking a full control system upgrade.

The 5464-335 is a direct plug-in replacement for the OEM-installed unit. No firmware changes, no re-engineering of the control cabinet, and no reconfiguration of the MicroNet application software are required — the replacement module is recognized by the MicroNet controller automatically upon installation. This makes the 5464-335 the lowest-risk, lowest-cost path to restoring full governor functionality after a module failure.

For facilities managing aging MicroNet systems, a proactive replacement strategy — purchasing one or two spare 5464-335 units before failure occurs — eliminates the risk of extended lead times during an emergency. Unplanned turbine shutdowns caused by control system component failures typically cost far more in lost production than the cost of maintaining a small on-site spare parts inventory. TOPNLMS supports both emergency single-unit orders and bulk procurement programs for maintenance departments managing multiple turbine units.

All units shipped by TOPNLMS are tested prior to dispatch and covered by a 12-month warranty from the date of shipment. Each module is inspected for physical integrity, connector condition, and functional performance before packaging. Expedited shipping options are available for emergency replacement scenarios where turbine downtime must be minimized.

Support FAQ

Q1: Is the Woodward 5464-335 a direct drop-in replacement for the original OEM module?
Yes. The 5464-335 is an original Woodward MicroNet Analog I/O Module and is fully compatible with MicroNet, MicroNet Plus, and MicroNet TMR control system chassis. It installs directly into the existing backplane slot with no hardware or software modifications required. After installation, the MicroNet controller will recognize the module automatically during its startup self-check sequence.

Q2: How is the module tested before shipment, and what does the 12-month warranty cover?
Every 5464-335 unit is functionally tested prior to shipment to verify analog input accuracy, output signal integrity, and backplane communication. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. If a unit exhibits a fault within the warranty period, TOPNLMS will provide a replacement or repair at no additional cost. Contact [email protected] to initiate a warranty claim.

Q3: What is the recommended inventory strategy for MicroNet Analog I/O Modules in a multi-turbine facility?
For facilities operating two or more MicroNet-controlled turbines, we recommend maintaining a minimum of one spare 5464-335 per three turbine units, with at least one unit always in stock regardless of fleet size. Given that analog I/O module failures can cause immediate unplanned shutdowns, the cost of a single spare unit is negligible compared to the production loss from even a few hours of unplanned downtime. For facilities with critical uptime requirements, a two-unit on-site spare inventory is advisable.

Q4: Can the 5464-335 be used to replace modules in both MicroNet TMR (Triple Modular Redundant) and simplex MicroNet configurations?
Yes. The 5464-335 Analog I/O Module is compatible with both simplex and TMR MicroNet architectures. In TMR systems, all three redundant module slots must be populated with compatible units; replacing a single failed module in a TMR chassis restores full triple redundancy. Verify the chassis slot assignment and TMR voting configuration in the MicroNet application software after replacement to confirm correct system operation.
