Woodward 5464-334 Original Industrial Spare MicroNet TMR Compatible

Product Overview

Woodward 5464-334 MicroNet TMR 8-Channel Analog Input Module: System Stability & Industrial Spare Maintenance Value

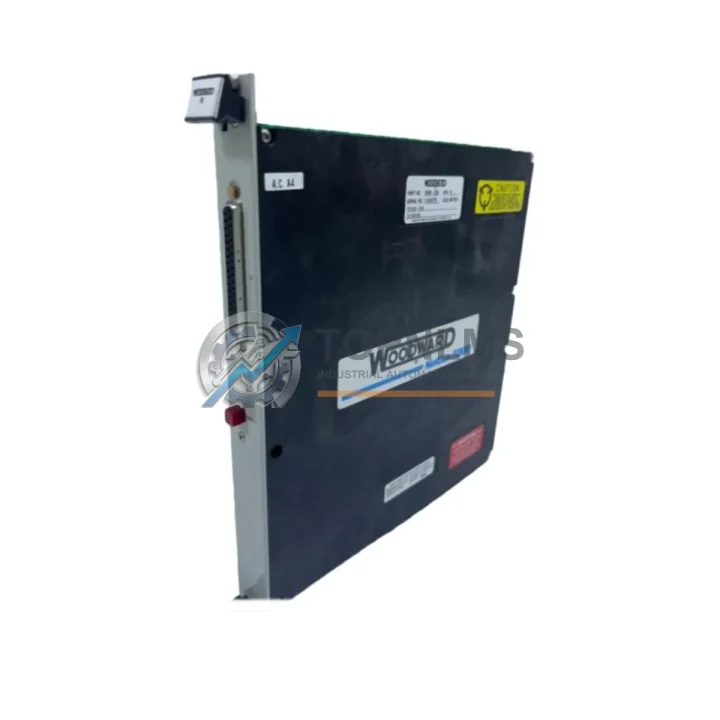

The Woodward 5464-334 is an original 8-channel analog input module designed for the MicroNet TMR (Triple Modular Redundancy) turbine control platform. In critical power generation, oil & gas, and industrial process environments, this module serves as the primary interface between field instrumentation and the TMR control logic — converting analog signals from thermocouples, RTDs, pressure transmitters, and flow sensors into digital values processed by the controller. Maintaining a verified spare of the 5464-334 is a foundational element of any responsible turbine control system maintenance strategy.

Unplanned downtime in turbine-driven systems carries severe operational and financial consequences. A failed analog input module can render an entire control loop blind, triggering protective shutdowns or, worse, masking process deviations that lead to equipment damage. Stocking the Woodward 5464-334 as a certified original spare eliminates the critical-path delay of emergency procurement, allowing maintenance teams to execute module swap-outs within a single planned or unplanned maintenance window.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for MicroNet TMR-based turbine control systems extends well beyond the analog input module itself. When scheduling a planned outage or responding to a diagnostic alarm on the 5464-334, experienced maintenance engineers treat the event as an opportunity to inspect the entire control cabinet and associated field wiring. Signal integrity issues that appear to originate in the analog input module are frequently caused by upstream or downstream components — making a holistic inspection protocol essential.

Begin with the MicroNet TMR power supply modules (such as the Woodward 5464-079 or equivalent redundant PSU cards). Verify output voltage stability under load; a marginal power supply will introduce noise into analog signal chains and cause intermittent diagnostic faults that are easily misattributed to the input module. Simultaneously, inspect the TMR controller backplane for corrosion, bent connector pins, and secure module seating — a loose backplane connection is a common root cause of analog channel faults.

Field wiring connected to the 5464-334’s input channels should be checked for insulation integrity, shield continuity, and correct termination at the terminal blocks and marshalling panels. Loose or corroded terminal connections introduce resistance that distorts 4–20 mA loop signals and can cause out-of-range readings that trigger spurious shutdowns. If the system uses signal isolators or signal conditioners between field instruments and the analog input module, verify their calibration and output linearity — these devices age and drift, and a faulty isolator will produce errors indistinguishable from a failed input channel.

For systems monitoring thermocouple or RTD inputs, inspect the thermocouple extension cables and RTD lead wires for continuity and correct polarity. Cold junction compensation accuracy depends on stable reference conditions at the module connector; damaged or improperly routed extension cables are a frequent source of temperature measurement error. Where fuse modules or circuit protection blocks protect individual analog input loops, verify fuse continuity and replace any that show signs of thermal stress.

The MicroNet TMR communication modules — responsible for inter-channel voting logic and external SCADA/DCS connectivity — should be inspected for firmware version consistency and communication error counters. A communication module accumulating CRC errors may indicate backplane signal integrity issues that will eventually affect analog input data quality. If the turbine control system interfaces with a distributed control system (DCS) via Modbus or OPC, verify gateway module health and communication latency during the maintenance window.

Finally, review the MicroNet TMR I/O expansion modules and digital output modules associated with the same control loops. Analog input data from the 5464-334 typically drives digital output decisions — actuator commands, valve positioners, and alarm relay modules. A complete loop test from sensor through the 5464-334 to the associated output module confirms end-to-end signal integrity and validates the replacement module’s calibration before returning the system to service.

Strategic Replacement Solutions

The Woodward 5464-334 was designed for long-service-life turbine control applications, but the MicroNet TMR platform has an established installed base that spans decades of power generation and oil & gas infrastructure. As original equipment manufacturers phase out legacy module production, sourcing verified original spare parts becomes increasingly critical for operators committed to maintaining their existing control architecture without undertaking a full control system upgrade.

Replacing the 5464-334 with a verified original Woodward module — rather than an uncertified aftermarket substitute — preserves the TMR voting logic integrity that is the platform’s core safety feature. The Triple Modular Redundancy architecture requires that all three redundant channels process identical signal conditioning; a non-OEM module with different input impedance or filter characteristics can introduce voting discrepancies that degrade system reliability and may trigger nuisance trips.

For facilities managing aging MicroNet TMR installations, a strategic spare parts inventory should include at minimum one 5464-334 analog input module per installed rack, alongside matched spares for the power supply, controller, and communication modules. This approach eliminates the 4–12 week lead time typically associated with emergency OEM procurement and allows maintenance teams to restore turbine control functionality within hours rather than days — a critical advantage in baseload power generation or continuous process environments where extended outages carry significant financial penalties.

Each 5464-334 supplied by TOPNLMS is tested prior to shipment, packaged in ESD-protective materials, and accompanied by documentation confirming part number and serial traceability. The 12-month warranty covers manufacturing defects and provides a clear recourse path in the event of early-life failure — reducing the financial risk associated with spare parts procurement from non-OEM channels.

Support FAQ

Q1: Is the Woodward 5464-334 compatible with all MicroNet TMR rack configurations?
The 5464-334 is designed for the MicroNet TMR backplane and is compatible with standard MicroNet TMR rack assemblies. Compatibility with specific rack revisions or firmware versions should be verified against your system’s configuration documentation. Contact our technical team with your system serial number for confirmation prior to ordering.

Q2: How is the module tested before shipment?
Each 5464-334 unit undergoes functional verification testing prior to dispatch, including power-on self-test validation and analog channel continuity checks. Units are shipped in ESD-protective packaging with inspection records. A 12-month warranty from the date of shipment covers manufacturing defects identified under normal operating conditions.

Q3: What is the recommended spare parts stocking strategy for MicroNet TMR systems?
For critical turbine control applications, we recommend maintaining at least one spare 5464-334 per installed rack, with additional spares proportional to the number of installed units and the criticality of the driven process. Pairing the analog input module spare with matched power supply and controller module spares ensures that any single-module failure can be resolved within a single maintenance shift without emergency procurement delays.

Q4: Can the 5464-334 be installed as a hot-swap replacement during turbine operation?
