WOODWARD 5463-581 Original Industrial Spare Governor Compatible

Product Overview

WOODWARD 5463-581 Original Industrial Spare Governor Compatible: Ensuring Turbine Control System Stability

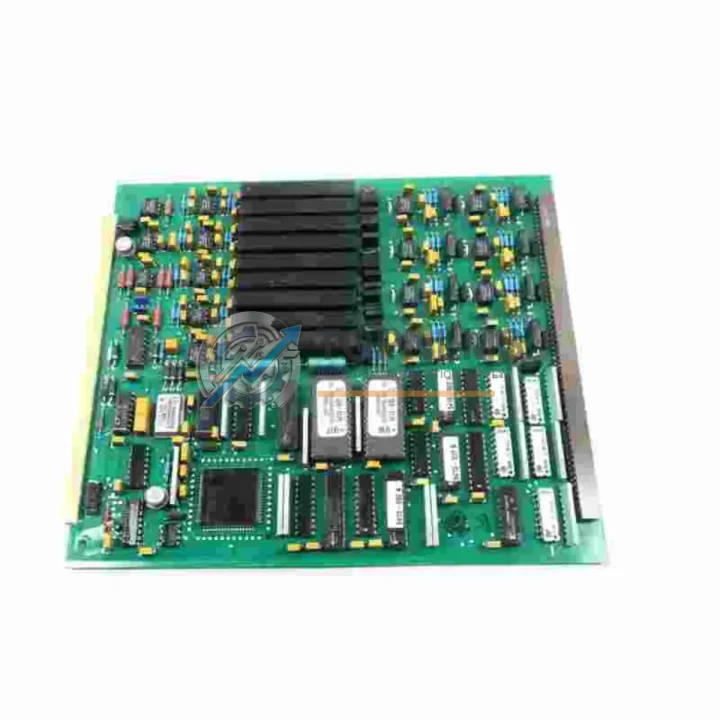

The WOODWARD 5463-581 Isolated Input Module is a precision-engineered original spare part designed for turbine governor control systems operating in power generation, oil & gas, and heavy industrial environments. When a governor control cabinet experiences signal anomalies, erratic speed regulation, or input channel faults, the 5463-581 is frequently the root-cause component requiring immediate replacement. Sourcing an original, tested module — rather than a refurbished or counterfeit substitute — is the single most effective action a maintenance team can take to restore system integrity and avoid cascading turbine trips.

At TOPNLMS, every WOODWARD 5463-581 unit is inspected, function-tested, and shipped with a 12-month quality warranty. Our inventory is maintained specifically to support unplanned outages and scheduled turnarounds where lead time from the OEM is unacceptable.

Critical Technical Specs

Preventive Maintenance Strategy

Turbine governor control systems are among the most failure-sensitive assemblies in any power plant or compressor station. A single degraded input module can corrupt speed feedback, trigger false trips, or cause erratic load-sharing behavior — all of which translate directly into unplanned downtime and revenue loss. When scheduling a maintenance window around the WOODWARD 5463-581, experienced maintenance engineers treat the replacement as an opportunity to audit the entire governor cabinet rather than a single-point fix.

Begin with the power supply module feeding the governor chassis. WOODWARD governor systems typically rely on a dedicated 24 VDC regulated supply; a supply with marginal output voltage will stress every module in the rack, including the 5463-581, and shorten its service life. Replacing or bench-testing the power supply module during the same outage window eliminates a common repeat-failure scenario.

Next, inspect the analog output modules and speed reference modules that work in tandem with the isolated input channels. If the 5463-581 has been logging input faults, the downstream actuator driver module — which converts governor commands into valve or fuel-rack positioning signals — should be checked for drift or contact wear. Replacing a faulty actuator output module at the same time prevents a second outage within weeks of the first.

The communication module linking the governor controller to the plant DCS or SCADA system deserves attention during any governor cabinet inspection. Intermittent communication faults are frequently misdiagnosed as governor logic errors when the actual cause is a degraded serial or Ethernet communication module. Stocking a spare communication module alongside the 5463-581 is a low-cost insurance policy for facilities running continuous processes.

Terminal blocks and field wiring connectors on the input side of the 5463-581 should be torqued to specification and inspected for corrosion, particularly in humid or coastal environments. Loose or oxidized terminations are a leading cause of intermittent input faults that mimic module failure. While the cabinet is open, inspect the relay output modules and discrete I/O modules in adjacent slots — these components share the same environmental stresses and often reach end-of-life at similar intervals.

For facilities running older WOODWARD MicroNet, NetCon, or 505 series governor platforms, the CPU or controller module itself should be evaluated during major overhauls. If the 5463-581 is being replaced as part of a life-extension program for a legacy system, sourcing a tested spare CPU module and a compatible HMI operator panel ensures that the control system can be fully restored even if a second critical component fails during the same outage. Fuse modules and surge protection devices on the field input circuits round out a comprehensive preventive maintenance bill of materials.

Strategic Replacement Solutions

The WOODWARD 5463-581 is a direct slot-compatible replacement for degraded or failed isolated input modules within the same governor chassis. No firmware reconfiguration is required when replacing like-for-like within the same series, which means a trained technician can complete the swap, perform a functional verification test, and return the turbine to service within a single shift — a critical advantage during forced outages where every hour of downtime carries a measurable cost.

For facilities managing aging WOODWARD governor systems where OEM support has been reduced or discontinued, maintaining a small buffer stock of the 5463-581 and its companion modules is a proven strategy for extending system life by five to ten years beyond the original design horizon. This approach defers the capital expenditure of a full governor system upgrade while maintaining the reliability standards required by insurance underwriters and regulatory bodies.

When a direct replacement is not immediately available, the 5463-581’s isolated input architecture is compatible with the signal conditioning standards used across the broader WOODWARD 5463-series family, providing flexibility for cross-referencing with adjacent part numbers in the same series during emergency procurement. TOPNLMS maintains cross-reference records to assist procurement teams in identifying functionally equivalent alternatives when the exact part number is on extended backorder from the OEM.

Every unit shipped by TOPNLMS undergoes pre-shipment functional testing, is packed in anti-static shielding, and is accompanied by a test report. The 12-month warranty covers all functional defects arising under normal operating conditions, giving maintenance managers the confidence to stock spare modules without concern about shelf-life degradation.

Support FAQ

Q1: Is the WOODWARD 5463-581 compatible with my existing governor chassis without hardware modification?
A: Yes. The 5463-581 is designed as a direct slot-in replacement for the same module position within WOODWARD governor control chassis of the same series. No hardware modification is required. We recommend performing a functional input verification test after installation before returning the turbine to load.

Q2: What is the recommended spare inventory quantity for a facility running multiple turbine governor systems?
A: Industry best practice for critical isolated input modules in continuous-process facilities is a minimum of one spare per governor system, with a facility-wide buffer of two to three units for sites operating three or more turbines. This ensures same-day replacement capability without dependence on emergency freight.

Q3: How is the module tested before shipment, and what does the 12-month warranty cover?
A: Each WOODWARD 5463-581 unit is functionally tested under simulated operating conditions prior to shipment. The 12-month warranty covers all functional defects under normal operating conditions. Physical damage caused by incorrect installation, overvoltage events, or environmental contamination beyond the module’s rated specifications is excluded.

Q4: What is the typical lead time, and can expedited shipping be arranged for emergency outages?
A: In-stock units are dispatched within 1–2 business days. Expedited shipping via DHL Express or FedEx Priority is available for emergency outage situations. Contact our team directly at [email protected] or +86 18359293191 to confirm stock availability and arrange priority dispatch.
