WOODWARD 5460-667 Replacement for 5000 Series

Product Overview

WOODWARD 5460-667 Replacement Upgrade Solution for 5000 Series: Seamless Transition from Legacy Power Supply Systems

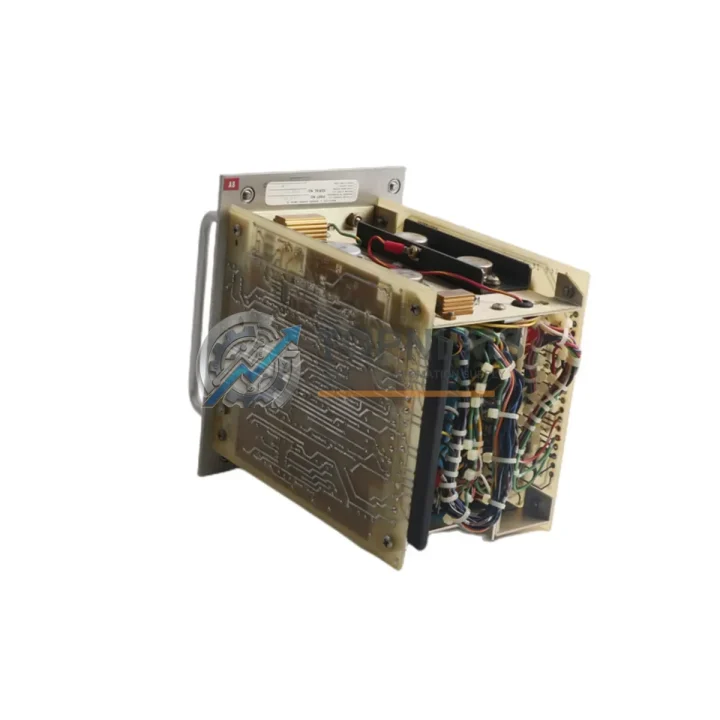

The WOODWARD 5460-667 is a 125V DC/DC Power Supply Module engineered for the WOODWARD 5000 Series control platform — a proven architecture widely deployed in turbine control, generator management, and industrial power generation systems. As aging 5000 Series installations approach end-of-service milestones, plant engineers and procurement teams increasingly require a reliable, drop-in compatible replacement that preserves existing wiring infrastructure, minimizes reprogramming effort, and eliminates costly extended downtime windows.

TOPNLMS maintains verified stock of the WOODWARD 5460-667 module, sourced through established industrial supply channels and subject to pre-shipment functional verification. Each unit is dispatched from our Xiamen warehouse with full documentation support, making it a practical choice for both emergency breakdown replacement and planned preventive maintenance upgrades.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 5000 Series power supply migration rarely involves a single module in isolation. In practice, the WOODWARD 5460-667 replacement is most effective when evaluated alongside the broader control system architecture. During turbine or generator control system retrofits, engineers commonly address the WOODWARD 5501-369 CPU module and the WOODWARD 5460-630 I/O module in the same maintenance window, since power supply degradation often correlates with age-related wear across the entire rack assembly.

For installations where the 5000 Series backplane interfaces with external communication networks, the WOODWARD 5501-470 communication module may require concurrent inspection or replacement to maintain Modbus RTU or proprietary serial protocol integrity after the power supply swap. Similarly, if the control cabinet houses a WOODWARD 5460-648 analog input module or a WOODWARD 5460-652 digital output module, verifying their power rail tolerance against the replacement supply’s output characteristics is a recommended commissioning step.

In multi-rack configurations, the WOODWARD 5460-660 power distribution module and associated terminal blocks should be inspected for contact oxidation before the new 5460-667 is energized. Where the existing installation includes a WOODWARD 2301A or 2301D load sharing and speed control unit operating in parallel with the 5000 Series rack, confirming the DC bus voltage stability post-replacement is essential to avoid nuisance trips during initial startup. For sites that have already partially migrated to the WOODWARD MicroNet or ProTech platform, the 5460-667 can serve as an interim bridge supply while the full migration project is phased in, reducing capital expenditure in the current budget cycle.

Procurement teams sourcing the 5460-667 as a long-lead spare should also consider stocking the WOODWARD 5460-664 redundant power supply module to establish a hot-standby configuration, particularly in critical generation assets where unplanned outages carry significant financial or safety consequences.

Retrofit Guidance FAQ

Q: Can the 5460-667 be installed without modifying existing field wiring?
A: Yes. The 5460-667 is a direct form-fit-function replacement for the original 5000 Series DC/DC power supply position. Existing 125V DC input wiring and backplane connector assignments are retained without modification.

Q: Is reprogramming of the 5000 Series controller required after the power supply swap?
A: No application software changes are required. The power supply module does not store control logic. After installation, a standard system power-cycle and watchdog reset sequence is sufficient to resume normal operation.

Q: What communication protocols are affected during the replacement procedure?
A: The 5460-667 supplies regulated DC power to the backplane bus. Modbus RTU, proprietary WOODWARD serial links, and any Ethernet-based supervisory connections routed through the 5000 Series rack will be interrupted only during the physical swap window, typically under 30 minutes for a prepared maintenance team.

Q: Are there physical space or mounting constraints to consider?
A: The 5460-667 occupies the standard 5000 Series power supply slot. No additional panel space, DIN rail adaptation, or bracket modification is required. Verify that the rack slot is free of debris and that the backplane connector pins are undamaged before insertion.

Q: How should the replacement unit be tested before returning the system to service?
A: After installation, measure the DC output voltage at the backplane test points to confirm it is within the specified tolerance band. Verify that all downstream I/O modules, CPU modules, and communication modules power up without fault indicators before releasing the system to automatic control mode.

Warranty Assurance

Every WOODWARD 5460-667 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment inspection that includes visual examination, connector integrity verification, and where applicable, functional power-on testing. Units that fail inspection are quarantined and not offered for sale.

In the event of a confirmed warranty claim, TOPNLMS will arrange a replacement unit or issue a credit note based on the customer’s preference and stock availability. Our after-sales response target is within 24 business hours of a documented fault report. Customers are requested to retain the original packaging and provide a brief fault description to expedite the claims process.

For time-critical plant situations, TOPNLMS can prioritize expedited dispatch from Xiamen with DHL Express or equivalent carrier, with tracking provided at the time of shipment confirmation. Bulk procurement orders for maintenance spares programs are accommodated with volume pricing — contact our sales team for a formal quotation.
