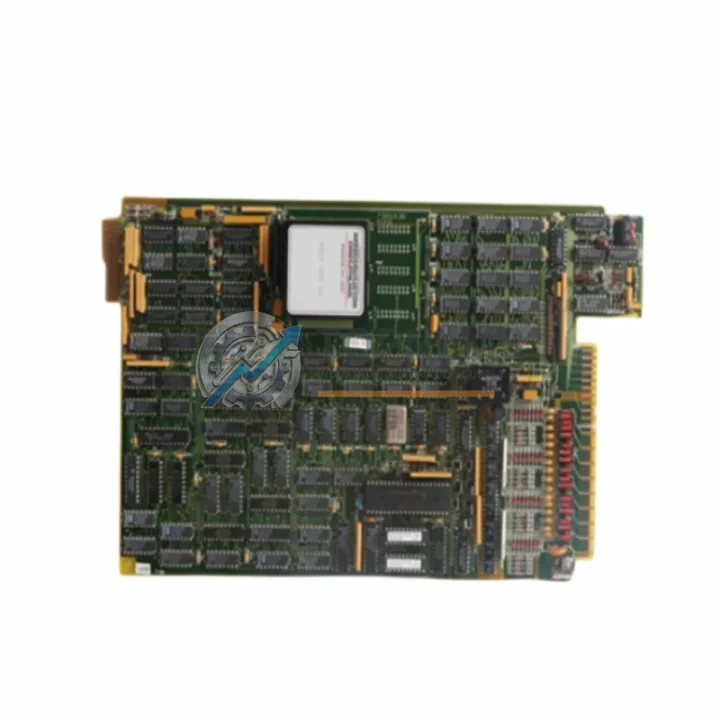

Westinghouse 7380A36G01 Replacement for WDPF Series

Product Overview

Westinghouse 7380A36G01 Replacement for WDPF Series: Smooth Migration & Legacy System Compatibility

The Westinghouse 7380A36G01 is a critical circuit board module within the WDPF (Westinghouse Distributed Processing Family) distributed control system platform. As aging WDPF installations approach end-of-life and OEM support becomes increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement modules that maintain full backward compatibility with existing wiring, rack infrastructure, and control logic. TOPNLMS stocks the 7380A36G01 as a direct drop-in replacement, enabling facilities to extend operational life or execute a phased migration to modern platforms such as Emerson Ovation without incurring full system shutdowns.

The WDPF architecture relies on a tightly integrated ecosystem of processing boards, I/O modules, and communication interfaces. The 7380A36G01 functions as a board-level processing or signal conditioning component within this ecosystem, interfacing directly with the WDPF backplane and communicating via the proprietary WDPF data highway. When replacing this module, engineers must verify backplane slot compatibility, confirm the firmware revision level matches the existing system configuration, and ensure that the field wiring termination assignments on the associated terminal board — typically a companion TU board — remain unchanged. In most WDPF installations, the 7380A36G01 can be swapped without rewiring field cables, significantly reducing planned outage duration.

For facilities undertaking a broader migration from WDPF to Emerson Ovation DCS, the 7380A36G01 replacement strategy typically forms part of a phased approach. During the transition period, the existing WDPF data highway, including associated modules such as the 7379A10G01 Highway Interface Module and the 7380A35G01 processing board, continues to operate alongside newly commissioned Ovation controller nodes. This hybrid architecture allows engineering teams to migrate control loops incrementally, validating each loop in the new environment before decommissioning the legacy WDPF segment. The 7380A36G01 replacement ensures continuity of the legacy segment throughout this process.

Wiring compatibility is a primary concern during any WDPF module replacement. The 7380A36G01 connects to field instruments through a dedicated terminal unit board mounted in the same or adjacent cabinet. The terminal board pinout and field wiring remain unchanged when substituting a like-for-like replacement module, eliminating the need for field cable re-termination. This is particularly important in power generation, chemical processing, and refinery environments where field wiring runs may span hundreds of meters and re-termination carries significant labor and safety risk. TOPNLMS verifies that all supplied 7380A36G01 units retain the original connector configuration and are compatible with the standard WDPF terminal board interface.

Communication protocol compatibility is equally critical. The WDPF platform uses a proprietary serial data highway for inter-module communication, distinct from modern open protocols such as PROFIBUS, MODBUS TCP, or EtherNet/IP. The 7380A36G01 is designed exclusively for this WDPF data highway environment. Customers migrating to Ovation or other modern DCS platforms will require gateway or bridge modules — such as the Emerson Ovation OCR400 Controller or associated Ovation I/O modules — to interface legacy WDPF field devices with the new control network. During the interim period, the 7380A36G01 replacement maintains the integrity of the existing WDPF communication segment.

Physical installation space and power supply compatibility are straightforward for like-for-like replacements. The 7380A36G01 occupies a standard WDPF module slot within the existing rack or cabinet assembly. No mechanical modifications to the cabinet are required. The module draws power from the WDPF rack power supply — typically a Westinghouse WDPF power supply module rated for the installed rack configuration — and no additional power conditioning is needed for a direct replacement. For facilities consolidating cabinet space as part of a broader modernization effort, the compact form factor of modern Ovation I/O modules offers a significant footprint reduction compared to legacy WDPF racks.

Control program and configuration compatibility is maintained when replacing the 7380A36G01 with a verified equivalent. The WDPF system configuration, including loop definitions, alarm setpoints, and I/O assignments stored in the WDPF Engineer’s Console or associated configuration database, does not require modification for a like-for-like module swap. Engineers should perform a cold backup of the system configuration prior to any module replacement and verify I/O channel assignments post-installation using the WDPF diagnostic tools. For sites without active OEM support contracts, TOPNLMS can advise on configuration verification procedures based on standard WDPF commissioning practices.

Procurement teams evaluating the 7380A36G01 as a spare or emergency replacement should note that this module is no longer manufactured by the original OEM. TOPNLMS sources verified units through authorized surplus and refurbishment channels, with each unit subject to functional testing prior to shipment. Alongside the 7380A36G01, customers frequently procure related WDPF spares including the 7379A09G01 Data Highway Interface, 7380A34G01 processing board, Westinghouse WDPF I/O expansion modules, and WDPF rack termination assemblies to maintain a comprehensive on-site spare parts inventory. Holding critical spares on-site is the most effective strategy for minimizing unplanned downtime in legacy WDPF installations where OEM lead times are no longer predictable.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful WDPF migration or spare parts strategy rarely involves a single module in isolation. Facilities replacing the 7380A36G01 typically require a coordinated set of components to maintain system integrity throughout the transition. The 7379A10G01 Highway Interface Module is frequently replaced in parallel, as it manages data highway communication for the WDPF segment and is subject to the same obsolescence pressures. The 7380A35G01 and 7380A34G01 processing boards are closely related variants within the same WDPF module family and are commonly stocked alongside the 7380A36G01 to cover multiple slot positions within the same rack.

For I/O expansion and signal conditioning, WDPF installations rely on dedicated WDPF analog input modules and WDPF digital output modules that interface with the same backplane. These modules share the same rack power supply and data highway infrastructure as the 7380A36G01, making coordinated procurement efficient. Sites transitioning toward Emerson Ovation will also require Ovation OCR400 or OCR1100 controller modules and associated Ovation remote I/O nodes to build out the new control architecture in parallel with the legacy WDPF system.

Communication infrastructure components — including WDPF data highway repeaters and fiber optic interface modules used in larger plant installations — should be assessed as part of any comprehensive WDPF spare parts audit. Programming and diagnostic connectivity is maintained via WDPF Engineer’s Console workstations or compatible PC-based configuration tools. TOPNLMS can source the full range of WDPF spares and advise on Ovation migration component requirements based on your specific system architecture.

Retrofit Guidance FAQ

Q: Can I replace the 7380A36G01 without rewiring field cables?
A: Yes. The 7380A36G01 connects to field instruments via a companion terminal unit (TU) board. A like-for-like module replacement does not require changes to the TU board or field wiring. Verify the TU board model and wiring diagram before installation to confirm compatibility.

Q: Do I need to modify the WDPF system configuration after replacing this module?
A: No configuration changes are required for a direct replacement with a verified 7380A36G01 equivalent. Back up the system configuration before the swap and perform I/O verification after installation using WDPF diagnostic utilities.

Q: Is the 7380A36G01 compatible with the WDPF data highway used in my existing installation?
A: Yes. The module uses the standard WDPF proprietary data highway interface. Ensure the firmware revision of the replacement unit is consistent with the revision level of other modules in the same WDPF segment to avoid communication conflicts.

Q: What physical space is required for installation?
A: The 7380A36G01 occupies a single standard WDPF module slot. No cabinet modifications are required. Confirm the target slot is correctly assigned in the WDPF rack configuration before insertion.

Q: Can this module be used during a phased migration from WDPF to Emerson Ovation?
A: Yes. The 7380A36G01 replacement supports continued operation of the WDPF segment during a phased Ovation migration. The legacy WDPF data highway remains fully operational alongside newly commissioned Ovation nodes until each control loop is migrated and validated.

Q: How do I verify the module is functioning correctly after installation?
A: Use the WDPF Engineer’s Console or WDPF diagnostic software to verify module status, I/O channel assignments, and data highway communication. TOPNLMS provides pre-shipment functional test documentation upon request.

Warranty Assurance

Every Westinghouse 7380A36G01 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing to verify electrical integrity and basic operational performance. In the event of a confirmed defect within the warranty period, TOPNLMS will provide a replacement unit or issue a refund in accordance with our standard warranty terms.

Our after-sales response team is available via email at [email protected] and by phone at +86 18359293191 to support installation queries, warranty claims, and urgent procurement requirements. Shipments are dispatched from Xiamen, China, with express international freight options available to minimize lead time for emergency replacement scenarios. Customers requiring expedited processing should contact us directly to confirm stock availability and shipping schedule before placing an order.

TOPNLMS maintains a standing inventory of critical WDPF spares to support unplanned outage scenarios. For facilities managing aging WDPF installations, we recommend establishing a pre-qualified supplier relationship and maintaining a documented spare parts list to ensure rapid response when module failures occur. Our team can assist with spare parts audits and procurement planning tailored to your specific WDPF system configuration.
