Westinghouse 5X00376G01 Replacement for Ovation DCS

Product Overview

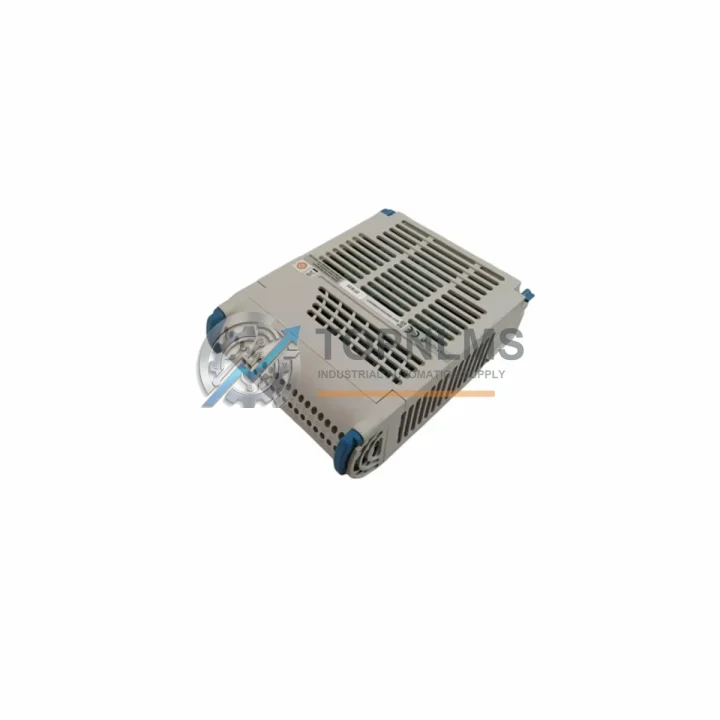

Westinghouse 5X00376G01 Replacement for Ovation DCS: Seamless Transition & System Continuity

When a critical Westinghouse Ovation DCS controller module fails or reaches end-of-life, every hour of unplanned downtime translates directly into lost production and escalating maintenance costs. The Westinghouse 5X00376G01 is a proven DCS Controller Module engineered for the Ovation distributed control system platform — a system trusted across power generation, oil & gas, and process industries worldwide. Whether you are replacing a failed unit, retiring an aging spare, or executing a planned system modernization, the 5X00376G01 delivers the electrical compatibility, communication integrity, and physical form factor required for a smooth, low-risk transition.

This module slots directly into the existing Ovation controller rack without requiring modifications to the control cabinet structure, backplane wiring, or I/O termination assemblies. Maintenance engineers who have managed Ovation systems for years will find the 5X00376G01 immediately familiar — the same mounting footprint, the same connector pinout, and the same firmware handshake behavior that the platform demands. For facilities running legacy Ovation configurations, sourcing a verified replacement unit is often the fastest path back to full operational status, far outpacing the lead times and integration risks associated with a full platform migration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Ovation DCS controller module replacement rarely involves a single component in isolation. The 5X00376G01 sits at the heart of a tightly integrated control architecture, and a thorough upgrade plan accounts for the surrounding ecosystem of modules and infrastructure that must remain synchronized during and after the transition.

Begin by auditing the Ovation I/O modules installed in the same rack. Analog input modules such as the 5X00119G01 and digital output modules in the 5X00 series communicate directly with the controller over the backplane bus. If these I/O modules are running on firmware that predates the 5X00376G01’s compatibility window, a coordinated firmware refresh across the rack prevents communication faults from appearing after the controller swap. Similarly, the Ovation power supply module — typically a redundant 24 VDC unit mounted in the controller rack — should be inspected for output stability and ripple before the new controller is commissioned. A marginal power supply that was tolerated by an aging controller may trigger protection faults in a freshly installed unit.

Communication infrastructure deserves equal attention. The Ovation network relies on a dedicated Ovation controller network interface card and structured Ethernet cabling to maintain deterministic scan times. If the existing network switch or Ovation OCR400 communication module is approaching end-of-life, replacing it concurrently with the 5X00376G01 eliminates a common source of intermittent network dropouts that are difficult to diagnose post-installation. For facilities that have extended their Ovation system with PROFIBUS DP gateway modules or Modbus RTU interface cards to integrate third-party field devices, verifying that these protocol bridges remain compatible with the updated controller firmware is a mandatory pre-commissioning step.

On the human-machine interface side, the Ovation Operator Station and any associated Ovation Engineering Workstation software must be at a release level that recognizes the 5X00376G01’s controller firmware version. Mismatched software versions between the controller and the HMI layer are a leading cause of post-replacement alarm floods and display anomalies. If the workstation software is several major releases behind, this replacement project is an ideal trigger point for a coordinated software update.

For facilities managing multiple Ovation drops across a large plant, the Ovation drop cable assemblies and termination panel assemblies that connect field instruments to the I/O rack should be inspected during the same maintenance window. Corroded terminals or degraded cable shields introduce noise that the new controller’s analog input circuitry will detect more sensitively than an aged predecessor. Addressing wiring integrity proactively avoids nuisance trips in the weeks following the module replacement.

Finally, if the facility is using Ovation redundant controller pairs, the partner controller module should be verified for firmware parity with the 5X00376G01 before returning the system to automatic redundancy switchover mode. Mismatched firmware between primary and secondary controllers can cause unexpected failover behavior under load.

Retrofit Guidance FAQ

Q1: Can the 5X00376G01 replace an older Ovation controller module without rewiring the I/O termination assemblies?
Yes. The 5X00376G01 uses the same standard Ovation backplane connector and module form factor as predecessor controller modules in the Ovation platform. Field wiring terminates at the I/O termination assemblies, not at the controller module itself, so no rewiring is required at the field level. The controller module is removed and reinserted at the rack level only.

Q2: Is the 5X00376G01 compatible with the existing Ovation software and HMI configuration?
The 5X00376G01 is designed for the Ovation DCS platform and is compatible with current Ovation software releases. However, if the site’s Ovation Operator Station or Engineering Workstation software is significantly out of date, a firmware compatibility check is recommended before installation. TOPNLMS can provide the module’s firmware revision details upon request to support your pre-installation verification process.

Q3: What communication protocols does the 5X00376G01 support, and will it work with existing PROFIBUS or Modbus field devices?
The 5X00376G01 communicates natively over the Ovation proprietary controller network. Integration with PROFIBUS DP, Modbus RTU, or other fieldbus protocols is handled by dedicated gateway or interface modules installed in the same or adjacent racks — not by the controller module directly. These gateway modules remain unchanged during a controller module replacement, preserving all existing fieldbus device configurations.

Q4: What physical space and installation requirements should be verified before ordering?
Confirm the target rack slot designation in your Ovation system documentation. The 5X00376G01 occupies a standard Ovation controller module slot. Verify that the rack backplane is free of damage and that the 24 VDC power supply output is within specification before insertion. No additional mounting hardware or cabinet modifications are required for a like-for-like replacement.

Warranty Assurance

Every Westinghouse 5X00376G01 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional inspection and power-on verification to confirm that the module is free from visible damage, connector defects, and obvious electrical faults. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund based on the circumstances of the claim. Our after-sales response target is within 24 hours of a warranty claim submission. We maintain stock of the 5X00376G01 and related Ovation platform modules to support rapid replacement dispatch, minimizing the gap between a warranty claim and the arrival of a substitute unit at your facility.

For procurement teams managing multi-site Ovation installations, TOPNLMS offers volume purchasing arrangements and can reserve allocated stock against planned maintenance schedules. Contact our technical sales team to discuss lead times, inspection reports, and documentation packages that support your site’s spare parts qualification process.
