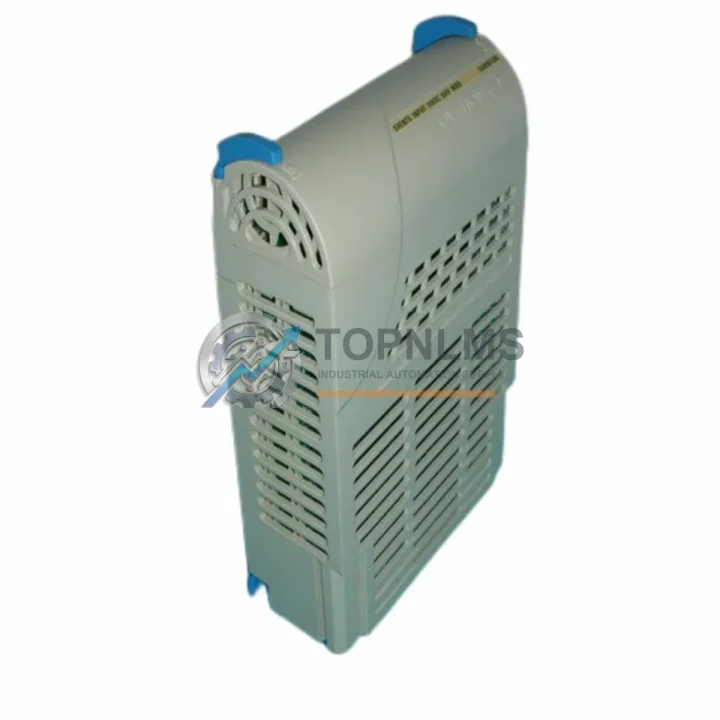

Westinghouse 5X00357G05 Replacement for WDPF Series

Product Overview

Westinghouse 5X00357G05 Replacement for WDPF Series: Seamless Transition & Legacy System Compatibility

The Westinghouse 5X00357G05 is a programmable controller module within the WDPF (Westinghouse Distributed Processing Family) distributed control system platform — one of the most widely deployed DCS architectures in power generation, petrochemical, and heavy industrial facilities built between the 1980s and early 2000s. As original equipment manufacturers have discontinued support and spare parts availability has tightened, facilities running legacy WDPF infrastructure face increasing pressure to source verified replacement units that maintain full backward compatibility with existing wiring, I/O configurations, communication buses, and control logic.

At TOPNLMS, we specialize in sourcing, testing, and supplying hard-to-find industrial control system components including the 5X00357G05. Every unit undergoes functional verification prior to shipment, and is backed by a 12-month warranty — giving procurement engineers and plant maintenance teams the confidence to proceed with replacement without full system overhaul.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 5X00357G05 is rarely an isolated action — it typically occurs within a broader WDPF system maintenance or partial modernization project. During the replacement process, engineers frequently need to address adjacent components to ensure the restored controller integrates cleanly with the rest of the control architecture.

In many WDPF installations, the programmable controller module operates alongside dedicated I/O interface modules such as the Westinghouse 5X00119G01 analog input module and the 5X00070G01 digital output module, both of which share the same rack backplane and communicate over the WDPF Data Highway. When the controller is replaced, it is good practice to inspect these I/O modules for age-related degradation, particularly capacitor wear and connector oxidation, as they are often of the same vintage as the failed controller.

The WDPF Data Highway communication infrastructure — including the 5X00095G01 data highway interface module — should also be verified during the replacement window. A degraded highway interface can cause intermittent communication faults that are easily misdiagnosed as controller failures, so confirming highway integrity before and after the 5X00357G05 swap reduces the risk of repeat callouts.

Power supply integrity is another critical checkpoint. The WDPF 5X00032G01 power supply module provides regulated DC power to the rack, and any instability in the supply rail can cause the replacement controller to exhibit erratic behavior during commissioning. Verifying output voltage under load before inserting the new controller module is a standard field practice that prevents unnecessary troubleshooting cycles.

For facilities that have partially migrated toward Ovation DCS — Emerson’s successor platform to WDPF — the replacement of the 5X00357G05 may coincide with the installation of Ovation-to-WDPF gateway modules or OPC communication bridges. In these hybrid environments, the controller replacement is often the last step before a full rack cutover, and ensuring the 5X00357G05 can communicate correctly with both legacy WDPF nodes and any Ovation controller nodes on the network is essential for a stable transition.

Terminal blocks and field wiring termination assemblies — such as the Westinghouse 5X00268G01 termination panel — should be inspected during the replacement outage. These passive components are often overlooked but are a common source of intermittent faults in aging WDPF systems. Replacing or re-torquing field terminations during the same maintenance window eliminates a significant category of post-replacement issues.

Finally, for sites that use WDPF operator interface stations or historian nodes, confirming that the replacement 5X00357G05 is recognized correctly by the WEStation engineering workstation software — and that the controller’s node address and configuration database entries are intact — is the final validation step before returning the loop to automatic control.

Retrofit Guidance FAQ

Q: Can I replace the 5X00357G05 without modifying field wiring?
A: Yes. The 5X00357G05 uses the same backplane connector and I/O addressing scheme as earlier G-revision modules. Field wiring connected to WDPF termination panels does not need to be disturbed. Only the controller card itself is swapped.

Q: Do I need to reload the control program after replacement?
A: In most cases, the control configuration resides in the WDPF database on the engineering workstation, not in the module’s non-volatile memory. After inserting the replacement module and powering up the rack, the WEStation software will download the configuration to the new controller automatically during the initialization sequence. Confirm this behavior with your site’s WDPF documentation before proceeding.

Q: Is the 5X00357G05 compatible with both older and newer WDPF rack chassis?
A: The module is designed for the standard WDPF card cage form factor. Compatibility with specific rack revisions should be confirmed against the module’s hardware revision level. Contact our technical team with your rack model number and we will confirm compatibility before shipment.

Q: What communication protocols does the 5X00357G05 support?
A: The module communicates natively over the WDPF Data Highway proprietary bus. It does not natively support Modbus, PROFIBUS, or Ethernet/IP without an external gateway module. If your facility requires integration with a modern SCADA or DCS platform, a protocol converter or gateway module will be required in addition to the controller replacement.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After installation, monitor the module’s status LEDs for normal run indication, confirm the WEStation engineering workstation shows the node as online, and verify that all associated I/O points are reading correctly in the operator display. Run the loop in manual mode for a commissioning period before returning to automatic control.

Q: What if the physical installation space in the control cabinet is constrained?
A: The 5X00357G05 has the same physical dimensions as all standard WDPF controller modules. No cabinet modification, DIN rail adaptation, or additional mounting hardware is required. The module slides directly into the existing rack slot.

Warranty Assurance

Every Westinghouse 5X00357G05 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process that includes power-on testing, communication bus response confirmation, and visual inspection for physical defects. Units that do not pass verification are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the defect and the customer’s preference. Our after-sales response target is within 24 hours of claim submission. Warranty claims are processed via email at [email protected] with the order number and a description of the observed fault.

For procurement teams requiring documentation, we can provide a test report, certificate of conformance, or packing list upon request. We ship globally from Xiamen, China, with DHL, FedEx, and UPS express options available. Lead time for in-stock units is typically 3–5 business days from order confirmation to dispatch.

For urgent plant breakdown situations, please contact us directly at +86 18359293191 to discuss priority dispatch options and expedited shipping arrangements.
