Westinghouse 5X00270G01 Replacement for Ovation DCS

Product Overview

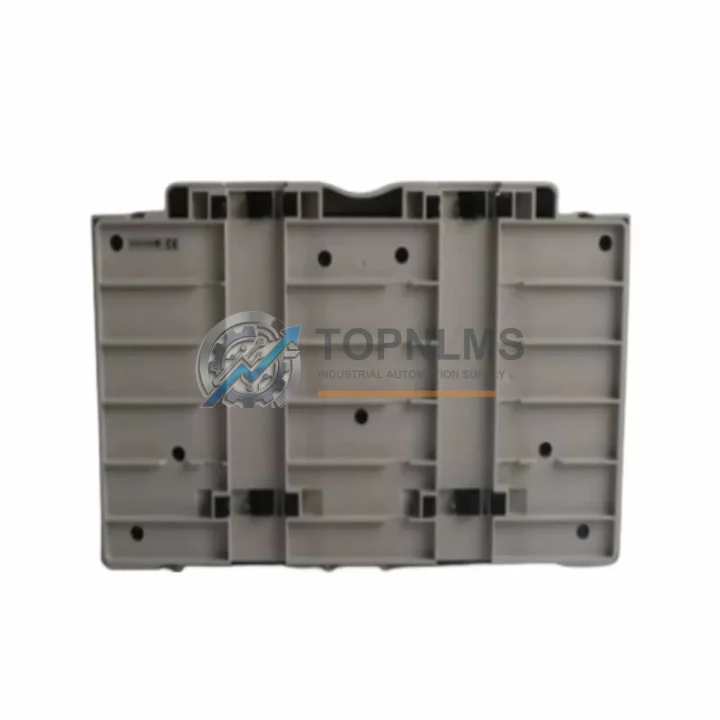

Westinghouse 5X00270G01 Replacement for Ovation DCS: Seamless Transition & Legacy System Upgrade

The Westinghouse 5X00270G01 is a core Process Module within the Ovation Distributed Control System (DCS) platform, widely deployed across power generation, petrochemical, and utilities industries. As aging Ovation systems approach end-of-life and original spare parts become increasingly scarce, facilities face mounting pressure to source verified replacement modules that preserve system integrity without triggering a full-scale control system overhaul. TOPNLMS supplies the 5X00270G01 as a direct drop-in replacement, fully tested and backed by a 12-month warranty, enabling your engineering team to execute a smooth, low-risk migration from legacy hardware to a reliable, in-stock alternative.

Whether your plant is managing a scheduled turnaround, responding to an unplanned fault, or executing a phased modernization of an older Ovation DCS architecture, the 5X00270G01 is engineered to slot into existing rack positions without requiring rewiring of field termination assemblies. The module interfaces directly with the Ovation controller backplane, maintaining compatibility with the standard Ovation I/O bus and communication protocols used across the platform. Field wiring connected to the associated FTA (Field Termination Assembly) remains undisturbed, dramatically reducing installation time and the risk of wiring errors during hot-swap or planned maintenance windows.

In practice, many Ovation DCS modernization projects involve replacing not just the process module itself, but a coordinated set of components across the control cabinet. The 5X00270G01 is commonly deployed alongside the Westinghouse 5X00119G01 controller module, which manages the primary control loop execution, and the 5X00095G01 power supply module that feeds the I/O rack. When upgrading a full I/O node, engineers frequently pair the 5X00270G01 with the 5X00106G01 analog input module and the 5X00107G01 analog output module to maintain a consistent signal chain from field instruments through to the DCS historian. For facilities running Ovation networks over Ethernet-based communication backbones, the 5X00220G01 network interface module is a typical companion component ensuring uninterrupted data exchange between the process module and the Ovation workstation layer.

From a physical installation standpoint, the 5X00270G01 occupies a standard Ovation I/O rack slot and is compatible with both the older 5X00049G01 rack chassis and the updated 5X00049G02 chassis variants. No additional mounting hardware or bracket modification is required. The module draws power from the rack’s internal bus, eliminating the need for external power wiring changes. For sites where cabinet space is constrained, this plug-and-play form factor is a significant advantage over alternative retrofit solutions that may require additional DIN rail components or signal isolators.

Communication protocol compatibility is a critical consideration in any DCS migration. The 5X00270G01 operates natively within the Ovation proprietary communication architecture, which means it does not require protocol conversion gateways or additional configuration to integrate with existing Ovation operator stations, engineering workstations, or the Ovation historian server. For plants that have introduced Modbus RTU or PROFIBUS DP field devices as part of incremental modernization efforts, the existing Ovation communication modules in the rack handle protocol bridging independently, leaving the 5X00270G01’s role as process data handler unaffected.

From a procurement and supply chain perspective, TOPNLMS maintains ready stock of the 5X00270G01 at our Xiamen facility, with standard lead times of 3–7 business days for international shipments. Each unit undergoes functional verification testing prior to dispatch, including power-on self-test, I/O channel integrity checks, and communication bus handshake validation. Units are shipped in anti-static packaging with full documentation. For urgent plant shutdowns or emergency replacements, expedited shipping options are available upon request.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Ovation DCS node upgrade typically involves coordinating several interdependent components. The 5X00270G01 Process Module works in concert with the 5X00119G01 controller module for loop execution, the 5X00095G01 power supply module for rack power distribution, and the 5X00106G01 analog input module for field signal acquisition. Analog output functions are handled by the 5X00107G01, while network connectivity to the Ovation supervisory layer is maintained through the 5X00220G01 network interface module. For sites migrating from older Ovation I/O architectures, the 5X00049G01 rack chassis provides the physical backbone, and the 5X00049G02 chassis is available for updated installations. Where field signal conditioning is required between legacy transmitters and the new module, DIN-rail-mounted signal isolators can be inserted at the FTA level without impacting the module’s slot configuration. TOPNLMS can source and supply these companion components to support a complete, single-vendor procurement for your upgrade project.

Retrofit Guidance FAQ

Q: Does replacing the 5X00270G01 require rewiring field cables?
A: No. The module connects to the field via the existing FTA. Field wiring at the terminal block level remains unchanged. Only the module itself is swapped in the rack slot.

Q: Is reprogramming the Ovation controller required after module replacement?
A: In most cases, no. The Ovation DCS recognizes the replacement module automatically during the next controller scan cycle. Configuration data resides in the controller, not the process module. A cold restart of the I/O node may be required depending on your Ovation software version.

Q: Is the 5X00270G01 compatible with all Ovation DCS software versions?
A: The module is hardware-compatible across the Ovation platform. Software compatibility depends on your specific Ovation release. TOPNLMS recommends confirming your Ovation version with your system integrator prior to installation if you are running a legacy software release below Ovation 3.x.

Q: What are the physical space requirements in the control cabinet?
A: The 5X00270G01 occupies one standard Ovation I/O rack slot. No additional space, DIN rail, or external enclosure is required. Cabinet layout remains unchanged.

Q: Can this module be used as a hot-standby spare?
A: Yes. The module can be pre-staged as a cold spare and installed during a planned or unplanned outage. TOPNLMS recommends storing spares in anti-static packaging in a climate-controlled environment.

Warranty Assurance

Every 5X00270G01 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection including power-on self-test, I/O channel verification, and communication bus validation. Units that do not pass inspection are quarantined and not shipped. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned module. Our after-sales response time target is 24 hours for warranty inquiries. We support customers through installation questions, compatibility verification, and post-installation commissioning guidance at no additional charge.

For bulk orders, long-term supply agreements, or emergency procurement, please contact our sales team directly. We maintain buffer stock for high-demand Ovation DCS components to support unplanned outage scenarios.
