Westinghouse 5X00105G07 Replacement for WDPF Series

Product Overview

Westinghouse 5X00105G07 Replacement for WDPF Series: Smooth Transition & Legacy System Compatibility

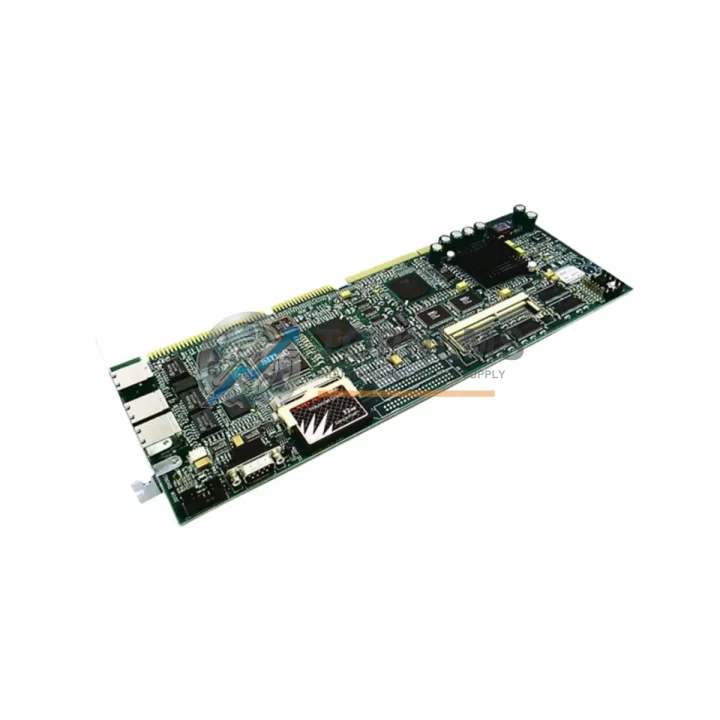

The Westinghouse 5X00105G07 is a process control board designed for the WDPF (Westinghouse Distributed Processing Family) distributed control system platform. As WDPF systems age and OEM support windows close, plant engineers and procurement teams face increasing pressure to source verified replacement boards that maintain full backward compatibility with existing field wiring, I/O termination assemblies, and inter-module communication buses. This listing provides a tested, in-stock 5X00105G07 replacement unit, sourced and inspected at our Xiamen facility, ready for immediate dispatch to minimize unplanned downtime.

The WDPF platform was widely deployed across power generation, petrochemical refining, and continuous process industries throughout the 1980s and 1990s. Many of these installations remain operational today, supported by a dwindling pool of spare boards. When a 5X00105G07 process control board fails, the impact is immediate: the associated control loop drops to manual, operators lose automated regulatory control, and production throughput is at risk. Having a verified replacement on the shelf — or being able to source one within 24–72 hours — is the difference between a controlled switchover and an unplanned shutdown.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful WDPF board replacement rarely involves a single component in isolation. During a typical 5X00105G07 swap, field engineers also inspect and often replace adjacent modules that share the same rack or control cabinet. The WDPF power supply module — which feeds the DC bus to all boards in the chassis — should be verified for output stability before the new control board is inserted; a marginal power supply is a common root cause of repeated board failures. Similarly, the WDPF data highway interface card that manages communication between the process control board and the plant-wide data highway should be confirmed operational, as a degraded highway card can cause the replacement board to appear faulty during commissioning.

Termination assemblies and marshalling panels connected to the 5X00105G07 via field cable bundles should be inspected for corroded terminals or loose connections before the replacement board is powered up. In many WDPF installations, the I/O termination panel is a separate assembly mounted in the same control cabinet; replacing the process control board without checking termination integrity can result in signal errors that are difficult to distinguish from a board fault. If the plant is also upgrading adjacent analog input modules or digital output modules within the same WDPF rack, coordinating those replacements during the same maintenance window reduces total downtime.

For sites undertaking a broader migration from WDPF to a modern DCS platform — such as Emerson Ovation, ABB System 800xA, or Honeywell Experion — the 5X00105G07 replacement can serve as a bridge solution, keeping the legacy system stable while the migration project is engineered and validated. During this transition period, WDPF-compatible programming cables and engineering workstation software licenses may also need to be sourced to support configuration backup and restore operations. Signal isolators and loop-powered transmitter barriers are frequently required when integrating legacy WDPF I/O signals into a new DCS front-end controller, ensuring signal integrity across the old and new system boundaries.

HMI workstations running WDPF operator interface software should also be assessed during any control board replacement project. Outdated HMI hardware running end-of-life operating systems represents a parallel risk to the control board itself, and many plant managers choose to address both during the same planned outage. Coordinating spare board procurement, HMI refresh, and communication infrastructure upgrades into a single maintenance event is the most cost-effective approach to WDPF system life extension.

Retrofit Guidance FAQ

Q: Do I need to modify field wiring when replacing the 5X00105G07?
No. The replacement board uses the same backplane connector and termination interface as the original. Existing field cables, marshalling wiring, and termination assemblies are reused without modification.

Q: How is the replacement board configured after installation?
Configuration is downloaded from the WDPF engineering workstation using the existing project database. The replacement board accepts the same configuration file as the original; no reprogramming from scratch is required provided the engineering workstation and software version are compatible.

Q: Is the WDPF data highway address retained after board swap?
Yes. The data highway node address is typically set via hardware switches or stored in non-volatile memory on the board. Verify the address setting matches the original before powering up to avoid highway conflicts.

Q: What physical space is required in the rack?
The 5X00105G07 replacement occupies the same card slot as the original. No rack modification, additional mounting hardware, or cabinet space reallocation is needed.

Q: Can this board be used as a cold standby spare?
Yes. Many plants maintain a pre-configured cold standby 5X00105G07 on the shelf. The board can be stored in its anti-static packaging and inserted into service when required, with configuration downloaded at the time of replacement.

Q: What if the root cause of failure was a power supply issue?
Inspect and test the WDPF rack power supply module before installing the replacement board. Inserting a new board into a rack with an unstable power supply risks damaging the replacement unit.

Warranty Assurance

Every 5X00105G07 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a pre-dispatch functional inspection to verify physical integrity, connector condition, and basic operational status. If a unit is found to be defective on arrival or fails within the warranty period under normal operating conditions, we provide replacement support and after-sales response within one business day.

We maintain stock at our Xiamen warehouse and can arrange express international freight to minimize lead time for urgent plant requirements. Customs documentation, commercial invoices, and packing lists are prepared to support smooth import clearance. For procurement teams requiring formal quotations, test reports, or material certifications, please contact us directly.

Stock is available for immediate dispatch. Lead time for standard orders is typically 3–7 business days to most destinations, with expedited options available on request.
