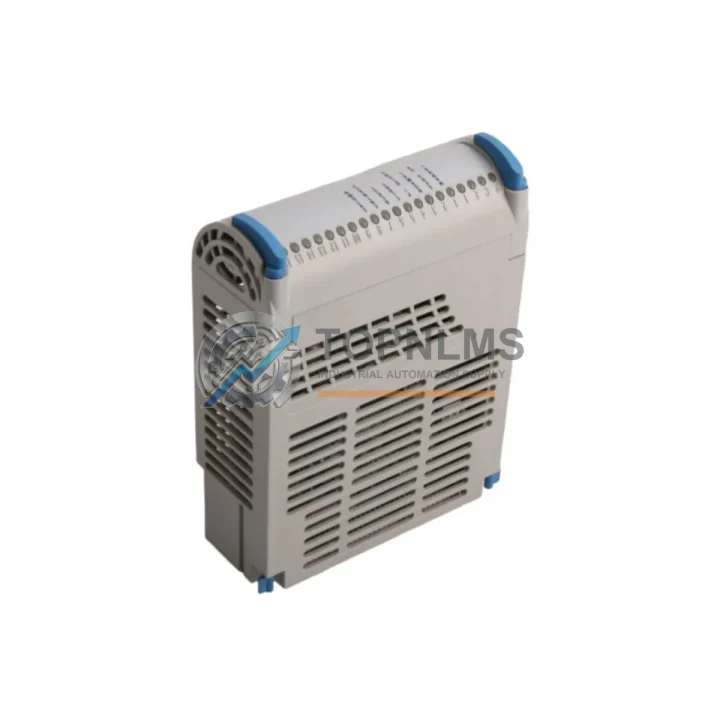

Westinghouse 1C31194G01 Ruggedized Valve Positioner Module

Product Overview

Westinghouse 1C31194G01 Ruggedized Valve Positioner Module: Industrial Resilience for Harsh Environments

The Westinghouse 1C31194G01 is a high-reliability valve positioner module engineered for the Ovation Distributed Control System (DCS) platform — one of the most trusted control architectures deployed across power generation, oil & gas, water treatment, and heavy industrial facilities worldwide. Designed to operate continuously in demanding field conditions, this module delivers precise valve positioning feedback and control signal integrity even under extreme thermal cycling, persistent vibration, elevated humidity, and high electromagnetic interference (EMI) environments.

In critical infrastructure applications where process uptime is non-negotiable, the 1C31194G01 serves as the nerve center between the DCS controller and field actuators. Its ruggedized construction ensures stable analog output and position feedback across the full operating temperature range, making it a preferred choice for engineers specifying components for continuous production lines, hazardous area control cabinets, and safety-instrumented systems (SIS).

Rugged Specifications Table

Comprehensive Protection Solutions

The 1C31194G01 does not operate in isolation — it is one critical node within a broader Ovation DCS architecture that demands equally robust supporting components. In a typical Ovation control cabinet, this valve positioner module works in close coordination with the Westinghouse 1C31116G01 Analog Input Module, which captures process variable feedback from field transmitters, and the 1C31122G01 Digital Output Module, which drives discrete actuator commands in parallel with analog valve positioning. Together, these modules form a tightly integrated I/O layer that feeds the Ovation controller processor.

For power conditioning and backplane stability, the Westinghouse 5X00070G01 Power Supply Module provides regulated 24 VDC to the I/O chassis, ensuring that the 1C31194G01 receives clean, stable power even when upstream grid fluctuations or load switching events occur on the plant floor. In high-vibration environments such as compressor stations or turbine halls, the integrity of the backplane connection is further protected by the Ovation 1C31234G01 I/O Termination Module, which provides secure field wiring termination and reduces mechanical stress on the module’s edge connector.

Communication integrity across the Ovation network is maintained by the Westinghouse 1C31166G01 Communication Interface Module, which bridges the I/O subsystem to the Ovation network backbone. In safety-critical loops — such as emergency shutdown (ESD) valve control in oil & gas facilities — the 1C31194G01 is often paired with a Triconex or Ovation Safety Controller to implement SIL-rated valve positioning with redundant feedback verification. For relay-based interlock circuits within the same control cabinet, the Westinghouse 1C31157G01 Relay Output Module provides hardwired trip logic that complements the analog positioning function of the 1C31194G01.

In facilities running mixed automation architectures, the 1C31194G01 has demonstrated reliable interoperability alongside Siemens S7-400 PLC I/O modules, ABB AC800M DCS controllers, and Yokogawa CENTUM VP field control stations when integrated through standardized HART or 4–20 mA signal loops. This cross-platform compatibility makes it a versatile spare for multi-vendor plant environments where a single control room may oversee both legacy Ovation systems and newer hybrid DCS/PLC architectures.

Application in Critical Infrastructure

The Westinghouse 1C31194G01 has earned its place in some of the most demanding industrial environments on the planet. In coal-fired and combined-cycle power plants, it governs the precise positioning of steam control valves and feedwater regulating valves, where a positioning error of even a fraction of a percent can cascade into turbine trip events or boiler pressure excursions. The module’s analog output stability under sustained high-temperature ambient conditions — common in turbine halls where ambient temperatures routinely exceed 45°C — makes it a preferred specification for plant engineers managing long-term reliability programs.

In upstream and midstream oil & gas facilities, including offshore platforms and onshore gas compression stations, the 1C31194G01 controls choke valves, pressure control valves, and emergency isolation valves (EIVs). These applications demand not only precise positioning accuracy but also fail-safe behavior under power loss conditions — a characteristic built into the Ovation DCS architecture that this module supports natively. The module’s resistance to salt-laden humid air and hydrocarbon vapor atmospheres, when installed in appropriately rated enclosures, makes it suitable for Zone 2 hazardous area control panels.

In municipal and industrial water treatment plants, the 1C31194G01 manages flow control valves across filtration, chemical dosing, and distribution networks. The continuous 24/7 duty cycle of water infrastructure demands components with proven mean time between failures (MTBF) ratings, and the Ovation platform’s track record in this sector — spanning decades of installed base — provides the confidence that procurement engineers require when specifying long-lifecycle spare parts.

Metallurgical and mining operations present perhaps the harshest challenge: extreme dust loading, aggressive chemical atmospheres from smelting and leaching processes, and severe mechanical vibration from crushers and conveyors. In these environments, the 1C31194G01 is typically installed in NEMA 4X or IP65-rated control enclosures, where it manages valve positioning for slurry flow control, cooling water regulation, and furnace atmosphere control — applications where a failed valve positioner module can halt an entire production line within minutes.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1C31194G01?
The 12-month warranty covers all functional failures arising from manufacturing defects or component degradation under normal operating conditions as specified by Westinghouse. This includes analog output drift, backplane communication faults, and internal power regulation failures. Physical damage caused by incorrect installation voltage, reverse polarity, or mechanical impact is excluded. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q2: How is each unit tested before shipment?
Every 1C31194G01 unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical integrity, powered functional test verifying analog output linearity across the 4–20 mA range, backplane communication handshake verification, and a burn-in cycle to screen for early-life component failures. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1C31194G01 compatible with all Ovation DCS chassis versions?
The 1C31194G01 is designed for the Ovation DCS I/O chassis family and is backward compatible with legacy Ovation rack configurations. It is interchangeable with earlier Ovation valve positioner module revisions in most applications. For installations involving specific firmware-locked Ovation controller versions or custom I/O mapping configurations, we recommend confirming the exact chassis revision with your DCS integrator before installation. Our technical team can assist with compatibility verification at no charge.

Q4: Can you support long-term or recurring supply of the 1C31194G01?
Yes. TOPNLMS maintains a dedicated inventory program for Ovation DCS spare parts, including the 1C31194G01 and related modules. We support blanket purchase orders, scheduled delivery programs, and emergency same-day dispatch for critical plant shutdowns. Our sourcing network covers both new-production and certified-refurbished units, ensuring supply continuity even for modules that have reached end-of-production status with the original manufacturer. Contact our team to discuss a long-term supply agreement tailored to your plant’s maintenance schedule.
