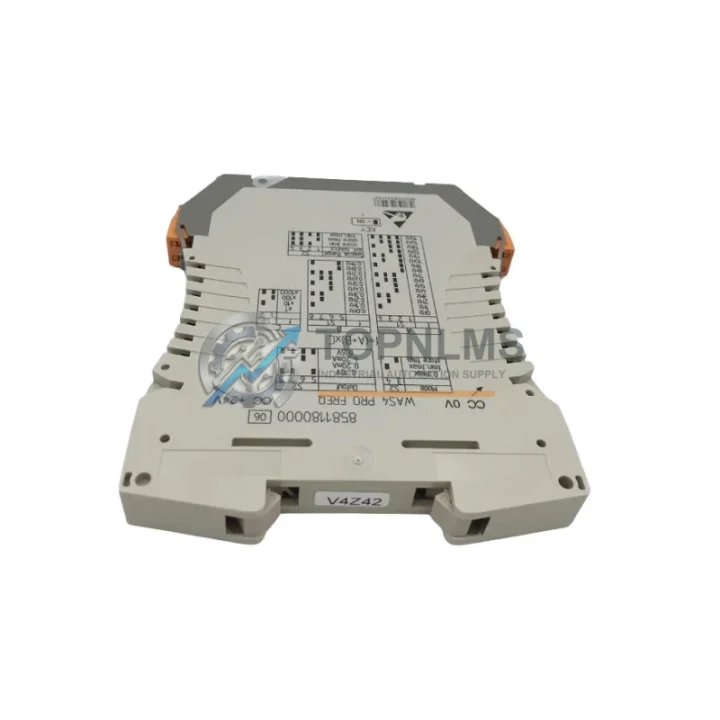

WEIDMULLER 8581180000 ACT20X Frequency Signal Isolator

Product Overview

WEIDMULLER 8581180000 ACT20X Frequency Signal Isolator: Seamless Replacement & Upgrade Solution

The WEIDMULLER 8581180000 is a high-precision frequency signal isolating converter from the ACT20X series, engineered for industrial automation environments where galvanic isolation, signal conditioning, and noise immunity are mission-critical. As legacy signal conditioners from older DCS and PLC architectures reach end-of-life, the ACT20X platform provides a direct, field-proven upgrade path that preserves existing wiring infrastructure, minimizes panel re-engineering, and dramatically reduces planned or unplanned downtime.

Whether you are migrating from discontinued WEIDMULLER PRO series signal conditioners, retiring aging Siemens SITRANS or Phoenix Contact MCR signal isolators, or consolidating a mixed-brand signal conditioning rail in a legacy control cabinet, the 8581180000 delivers a standardized, DIN-rail-mounted replacement that integrates cleanly into both new and existing marshalling panels.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the WEIDMULLER 8581180000 ACT20X rarely involves a single component swap. In practice, field engineers replacing frequency signal isolators in a running plant will encounter a cluster of interdependent components that must be evaluated together to ensure a smooth cutover.

On the power distribution side, the ACT20X module draws its auxiliary supply from the 24 V DC bus. If the existing WEIDMULLER PRO M 24VDC power supply rail is undersized or aging, it is advisable to audit the rail capacity before commissioning the new isolator. Similarly, the WEIDMULLER ACT20X-AI-AO analog input-to-output signal conditioner and the ACT20X-HART-AO HART signal converter are frequently installed alongside the 8581180000 in multi-loop marshalling panels, sharing the same DIN rail and terminal block infrastructure.

On the field wiring side, the CAGE CLAMP® push-in terminals of the ACT20X series are compatible with the WEIDMULLER KLIPPON terminal blocks (e.g., WDU 2.5 and WDU 4 series) already present in most legacy control cabinets. This means existing field cable terminations can typically be re-used without re-crimping or re-labelling, which is a significant time-saver during a live panel retrofit.

For plants running Siemens S7-300 or S7-400 PLCs with analog input modules such as the SM 331 or SM 334, the 4–20 mA output of the 8581180000 connects directly to the existing AI channel wiring without any signal scaling changes in the PLC program — provided the legacy isolator was also configured for 4–20 mA output. Engineers migrating from a Rockwell Automation 1756 ControlLogix or 1769 CompactLogix platform will find the same compatibility, as the ACT20X output conforms to the IEC 60381-1 standard current loop specification.

Where the legacy system used a PHOENIX CONTACT MCR-FL-C-UI-2UI-DCI-NC or similar frequency-to-analog converter, the 8581180000 provides a functionally equivalent replacement with improved isolation class and a narrower housing footprint. In cabinets where panel space is constrained — a common challenge in brownfield retrofits — the 12.5 mm slim profile of the ACT20X can free up meaningful rail space for additional I/O modules or a WEIDMULLER ACT20X-HART-UI HART multiplexer.

For applications involving PROFIBUS DP or PROFINET communication architectures, the frequency signal from the 8581180000 is typically fed into a remote I/O station such as the WEIDMULLER UR20 fieldbus coupler or a Siemens ET 200SP distributed I/O module, rather than directly into the fieldbus network. This architecture is unchanged from the legacy installation, so no gateway reconfiguration is required during the swap.

Finally, during commissioning, a WEIDMULLER ACT20X-HART-AO programming adapter or a standard HART communicator can be used to verify the output calibration of the new isolator before the loop is handed back to the DCS operator. This step is especially important in flow measurement loops where the frequency input originates from a turbine flowmeter or a Coriolis meter pulse output.

Retrofit Guidance FAQ

Q: Can I reuse the existing field wiring when replacing my old frequency isolator with the 8581180000?
A: In most cases, yes. The ACT20X uses CAGE CLAMP® push-in spring terminals that accept 0.2–2.5 mm² conductors. If your legacy isolator used screw terminals with the same wire gauge, the field cables can be transferred directly. Verify terminal polarity markings before re-terminating.

Q: Do I need to modify my PLC program after the swap?
A: Not if the output signal type (4–20 mA or 0–10 V) and scaling remain the same. The ACT20X output is fully compatible with standard analog input modules on Siemens S7, Rockwell ControlLogix, Schneider Modicon, and Mitsubishi MELSEC platforms. Confirm the input range setting on the ACT20X matches the legacy device before powering up.

Q: What communication protocols does the ACT20X support?
A: The standard 8581180000 provides hardwired analog output (4–20 mA / 0–10 V). It does not natively communicate over PROFIBUS, PROFINET, or EtherNet/IP. For fieldbus integration, the analog output is wired to a remote I/O module or AI card on the fieldbus node — the same architecture used with the legacy isolator.

Q: Will the 8581180000 fit in the same DIN rail slot as my old isolator?
A: The ACT20X has a 12.5 mm housing width on a standard 35 mm DIN rail. If your legacy device was wider (e.g., 22.5 mm), you will gain rail space. If it was narrower, check adjacent component clearances. No panel drilling or rail modification is required.

Q: How do I configure the input frequency range?
A: The 8581180000 is configured via DIP switches or rotary encoders on the front face (depending on firmware revision). Input type (HTL, TTL, NAMUR), frequency range, and output scaling are all field-adjustable without a PC tool. Refer to the WEIDMULLER ACT20X configuration guide for the switch map.

Q: What if my legacy system used a different supply voltage?
A: The ACT20X accepts a wide-range 24 V DC auxiliary supply (typically 18–30 V DC). If your legacy isolator was powered from a 115 V AC or 230 V AC rail, you will need to provide a 24 V DC SMPS — such as the WEIDMULLER PRO M 24VDC 2.5A power supply — before installing the ACT20X.

Warranty Assurance

Every WEIDMULLER 8581180000 ACT20X unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including output signal accuracy check, isolation resistance test, and terminal integrity inspection. Units that do not meet WEIDMULLER factory specifications are quarantined and not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our standard response time for warranty claims is 1–3 business days from receipt of the defective unit. Customers are encouraged to retain the original packaging and test records provided with the shipment to facilitate any warranty claim.

Stock is held in Xiamen, China, and orders are typically dispatched within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, depending on destination and customer preference. Express delivery to most industrial hubs in Europe, Southeast Asia, and the Americas is achievable within 5–7 business days from order confirmation.

For urgent plant-down situations, please contact our sales team directly to arrange priority picking and same-day dispatch where stock availability permits.
