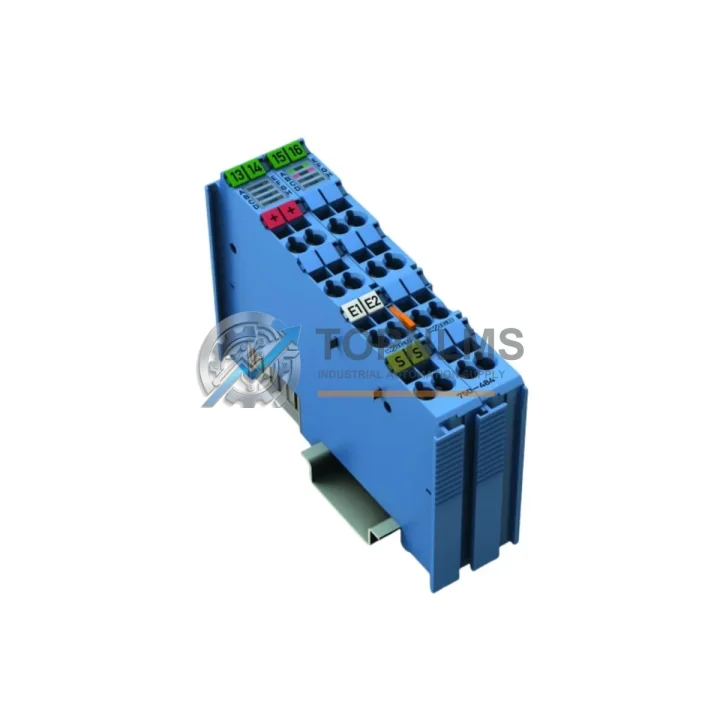

WAGO 750-484 Ruggedized Analog Input Module

Product Overview

WAGO 750-484 Ruggedized Analog Input Module for Harsh Industrial Environments

The WAGO 750-484 is a 2-channel analog input module engineered for the WAGO-I/O-SYSTEM 750 Series FIELDBUS infrastructure. Designed to deliver precise 12-bit signal acquisition across 0–20 mA and 4–20 mA current loops, this module is built to sustain continuous, reliable operation in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining galleries, vibration-intensive heavy machinery platforms, and electromagnetically noisy power generation switchgear rooms.

Where signal integrity is non-negotiable and downtime carries catastrophic cost, the WAGO 750-484 provides the measurement accuracy and environmental resilience that process engineers and control system integrators depend on. Its compact rail-mount form factor integrates seamlessly into WAGO 750 Series I/O nodes, enabling scalable, modular expansion of analog acquisition capacity without redesigning the control cabinet architecture.

Rugged Specifications Table

Comprehensive Protection Solutions

The WAGO 750-484 does not operate in isolation — it is a precision component within a broader, safety-critical control architecture. In a typical industrial control cabinet, it works alongside the WAGO 750-352 PROFIBUS DP Fieldbus Coupler, which serves as the communication gateway between the I/O node and the host PLC or DCS. Analog signals acquired by the 750-484 are transmitted upstream to controllers such as the WAGO 750-8202 PFC200 Programmable Fieldbus Controller, where process logic executes in real time.

On the output side, the 750-484 pairs naturally with the WAGO 750-554 2-Channel Analog Output Module to form a closed-loop control pair — one module reading process variables, the other driving actuators or control valves. For digital I/O expansion within the same node, the WAGO 750-430 8-Channel Digital Input Module and WAGO 750-530 8-Channel Digital Output Module extend the node’s reach to discrete field devices such as proximity sensors, solenoid valves, and motor contactors.

Power integrity across the I/O node is maintained by the WAGO 787-1002 EPSITRON Power Supply, which delivers stable 24 VDC rail power even under fluctuating load conditions. In safety-instrumented systems, the 750-484 is frequently deployed alongside the WAGO 750-665 Safety Digital Input Module and WAGO 750-667 Safety Digital Output Module, ensuring that analog measurement data feeds into SIL-rated safety logic without compromising the integrity of the safety loop. Communication modules such as the WAGO 750-653 RS-232/RS-485 Serial Interface Module further extend connectivity to legacy field instruments and serial-protocol devices within the same control cabinet.

Application in Critical Infrastructure

In oil and gas upstream facilities, the WAGO 750-484 monitors 4–20 mA signals from pressure transmitters and flow meters installed on wellhead manifolds and separator skids. Its resistance to vibration and wide operating temperature range make it suitable for both onshore compressor stations and offshore platform control rooms where ambient conditions fluctuate significantly.

In municipal water treatment and pumping stations, the module acquires analog signals from level sensors, turbidity analyzers, and chemical dosing flow meters. Its 12-bit resolution ensures that fine variations in chemical concentration or tank level are captured accurately, enabling precise PID control of dosing pumps and aeration blowers.

In metallurgical and steel mill environments, where electromagnetic interference from large induction furnaces and arc welders is pervasive, the 750-484’s EMC-compliant design maintains signal fidelity across long cable runs. It is routinely deployed in rolling mill automation panels alongside variable frequency drives and motor protection relays, where analog feedback from temperature sensors and load cells must remain stable under continuous high-current switching noise.

In coal and hard-rock mining operations, the module is installed in explosion-proof enclosures or Zone 2 rated control panels, monitoring conveyor belt load cells, ventilation airflow sensors, and hydraulic pressure transducers. Its wide storage temperature range ensures that spare units held in surface warehouses or underground parts stores remain fully functional after extended storage in variable-temperature environments.

In power generation and substation automation, the WAGO 750-484 interfaces with current transformers and transducers monitoring generator output, transformer loading, and bus voltage — providing the analog data backbone for SCADA systems managing grid-connected assets.
