VMIC R91133022C7 SH01.1C Original Industrial Spare SH01 Compatible: Ensuring System Stability in Servo Drive Applications

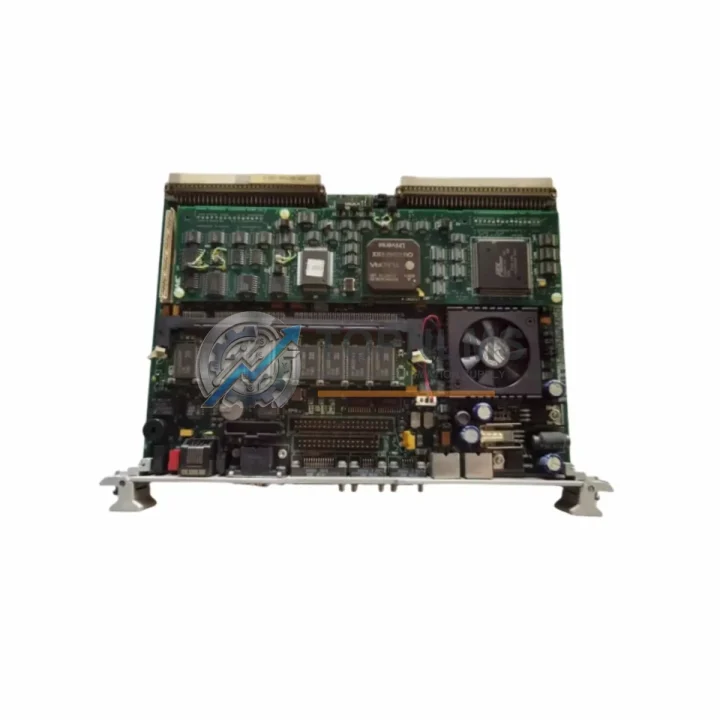

The VMIC R91133022C7 (full part number: SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW) is an original servo drive control board engineered for demanding industrial automation environments. As a critical component within the SH01 series servo drive platform, this control board governs the core logic, feedback processing, and communication functions of the servo drive unit. In high-availability production lines — from automotive assembly to precision CNC machining and packaging automation — the integrity of this board directly determines whether the servo axis operates within specification or triggers a costly unplanned shutdown.

Sourced from Germany and verified against original VMIC manufacturing standards, the R91133022C7 is a genuine replacement that eliminates the compatibility risks associated with aftermarket or refurbished alternatives. For maintenance engineers managing aging SH01-series servo systems, stocking this board as a critical spare is one of the most effective strategies to reduce mean time to repair (MTTR) and protect production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

When a servo drive control board such as the R91133022C7 is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance teams know that the servo drive rarely fails in isolation. A comprehensive inspection of the surrounding electrical cabinet and drive system is essential to prevent repeat failures and ensure the repaired axis returns to full operational reliability.

Begin by inspecting the servo drive power supply module that feeds the SH01.1C unit. Voltage ripple or insufficient current capacity under load is a leading cause of control board degradation over time. Simultaneously, check the DC bus capacitor bank within the drive chassis — capacitor aging is a well-documented failure mode in servo drives operating in high-cycle environments and should be evaluated whenever the control board is accessed.

The encoder feedback cable and connector assembly (compatible with EN1/ENS interface) should be inspected for insulation wear, connector oxidation, and signal integrity. A degraded encoder cable can generate intermittent position errors that are frequently misdiagnosed as control board faults, leading to unnecessary board replacements. Replacing the cable alongside the R91133022C7 eliminates this diagnostic ambiguity.

Within the same control cabinet, the 24VDC auxiliary power supply module powering the control logic should be load-tested. Fluctuations in the 24V rail are a common root cause of control board resets and communication faults in SH01-series drives. If the cabinet also houses I/O expansion modules or digital input/output terminal blocks connected to the servo controller, inspect their wiring terminations and relay contacts for signs of arcing or loose connections.

For systems using fieldbus communication — particularly those with PROFIBUS-DP or EtherCAT communication modules integrated into the drive network — verify that the network topology remains intact after the board swap. A new control board with factory firmware may require re-parameterization of the communication node address and baud rate settings. Having a handheld servo parameter unit or PC-based commissioning tool on hand during the replacement procedure significantly reduces re-commissioning time.

If the servo system is part of a multi-axis motion controller architecture, it is advisable to inspect the motion controller backplane or rack assembly for signs of thermal stress or connector wear. In older installations, the battery backup module for the controller’s SRAM — which retains axis parameters and program data during power loss — should be tested and replaced if its service life exceeds the manufacturer’s recommendation. Neglecting this component can result in complete parameter loss during the next power cycle following the servo repair.

Finally, review the condition of the EMC filter and line reactor at the drive input. These components protect the servo drive from mains-borne interference and transient overvoltages. Degraded EMC filters are a silent contributor to premature control board failure and are frequently overlooked during reactive maintenance events.

Strategic Replacement Solutions

The VMIC R91133022C7 SH01.1C-SE-ENS-EN1-NNN-S2-S-NN-FW is a direct original replacement for aging or failed control boards within the SH01.1C servo drive family. Unlike generic or third-party alternatives, this genuine VMIC board retains full compatibility with the original drive firmware, parameter structure, and encoder interface — eliminating the risk of axis tuning drift or communication protocol mismatches that can arise from non-original substitutions.

For facilities managing legacy servo systems that are no longer in active production by the OEM, sourcing original spare boards is the most cost-effective strategy to extend system service life without the capital expenditure of a full drive replacement. A single unplanned servo axis failure on a production line can result in downtime costs that far exceed the investment in a proactive spare board inventory. Stocking one or two R91133022C7 units — particularly in high-cycle or multi-shift operations — provides immediate swap capability and eliminates lead-time risk during critical production periods.

Each unit dispatched from TOPNLMS undergoes pre-shipment functional verification, is packaged in anti-static protective materials, and is accompanied by documentation supporting traceability. The 12-month warranty covers manufacturing defects and provides procurement teams with the confidence required for MRO budget approval and supplier qualification processes.
