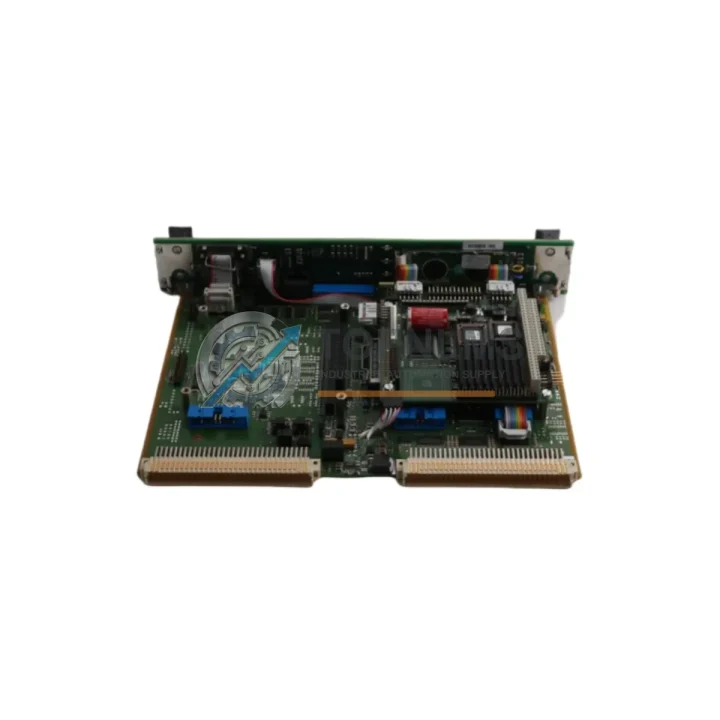

VIBRO-METER VM600-CPU-M-200-595-074-122 Upgrade Solution

Product Overview

VIBRO-METER VM600-CPU-M-200-595-074-122 Upgrade Solution: Seamless Migration from Legacy VM600 Rack Systems

The VIBRO-METER VM600-CPU-M-200-595-074-122 is the central processing unit of the VM600 modular vibration monitoring platform, designed for continuous machinery protection in turbines, compressors, pumps, and rotating equipment across power generation, oil & gas, and heavy industry. As legacy VM600 rack installations age and original CPU modules approach end-of-life, facilities face increasing pressure to source verified replacement units that maintain full backward compatibility with existing I/O wiring, communication infrastructure, and condition monitoring software.

This listing provides a tested, ready-to-ship VM600-CPU-M-200-595-074-122 replacement module, sourced and inspected to meet the original VIBRO-METER specification. Whether you are executing a like-for-like swap of a failed CPU, upgrading a degraded rack processor, or building a strategic spare inventory ahead of a planned shutdown, this unit is prepared for immediate deployment into your existing VM600 chassis.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VM600-CPU-M-200-595-074-122 replacement rarely involves the CPU module alone. In practice, field engineers migrating from aging VM600 installations typically address several interdependent components during the same maintenance window to minimize repeat downtime.

The VM600 rack itself — whether a 4-slot, 8-slot, or 12-slot chassis — must be inspected for backplane integrity before the new CPU is seated. In many retrofit projects, the VM600-RPS (Rack Power Supply) module is replaced simultaneously, as power supply degradation is a common root cause of CPU instability in long-running installations. Ensuring the power supply is within specification protects the new CPU from premature failure.

On the I/O side, the VM600-MPC4 (Machinery Protection Card) and VM600-IOC (I/O Conditioning Module) are frequently serviced alongside the CPU. These modules handle the raw vibration, speed, and process signals from proximity probes, accelerometers, and velocity transducers. Confirming that I/O module firmware and channel configuration remain intact after a CPU swap is a standard commissioning step.

For facilities running VIBRO-METER systems integrated into a plant-wide DCS or SCADA environment, the VM600-CMC (Communication Module Card) governs the data exchange between the VM600 rack and upstream control systems via Modbus RTU, Modbus TCP, or Profibus DP. Verifying communication module settings post-CPU replacement ensures that alarm setpoints, trend data, and trip signals continue to propagate correctly to the control room.

In turbine protection applications, the VM600-TDM (Tachometer and Dynamic Measurement Module) provides speed and phase reference signals that the CPU uses for vector-based vibration analysis. This module’s calibration should be verified as part of any CPU replacement procedure. Similarly, the VM600-XMx series signal conditioning modules — handling displacement, velocity, and acceleration channels — should be checked for channel mapping consistency against the new CPU’s configuration file.

For sites where the VM600 system interfaces with a GE Mark V, Mark VI, or Emerson Ovation DCS, or where the vibration monitoring data feeds into an OSIsoft PI historian, the communication gateway configuration must be validated after the CPU is replaced and the rack is restarted. This is particularly important in combined-cycle power plants where turbine protection logic is distributed across multiple control platforms.

Finally, for facilities building a comprehensive spare parts strategy, stocking a VM600-CPU-M-200-595-074-122 alongside matched I/O modules, a communication card, and a power supply module provides a complete rack-level recovery kit — enabling full system restoration within a single planned outage window rather than multiple emergency callouts.

Retrofit Guidance FAQ

Q: Do I need to rewire the terminal blocks when replacing the CPU module?
A: No. The VM600-CPU-M-200-595-074-122 uses the same backplane connector and front-panel interface as the original CPU. Field wiring connected to I/O modules in the same rack is unaffected. Only the CPU slot is disturbed during replacement.

Q: Can I reuse my existing rack configuration file?
A: Yes. Configuration files created with VIBRO-METER’s Rack Configuration Software are stored externally and can be reloaded onto the replacement CPU. It is recommended to verify all channel assignments, alarm thresholds, and trip setpoints after loading the configuration and before returning the system to service.

Q: Is the VM600-CPU-M-200-595-074-122 compatible with both Modbus and Profibus communication modules?
A: The CPU module itself is protocol-agnostic at the rack level. Communication protocol support is determined by the VM600-CMC or equivalent communication module installed in the rack. The replacement CPU is fully compatible with existing communication modules — no protocol reconfiguration is required.

Q: What is the physical installation procedure?
A: Power down the VM600 rack using the established lockout/tagout procedure. Remove the failed CPU module from its designated rack slot. Seat the replacement VM600-CPU-M-200-595-074-122 firmly into the backplane connector. Restore power and reload the configuration file. Perform a channel-by-channel verification of all I/O signals before returning the system to automatic protection mode.

Q: How do I verify communication with the DCS after replacement?
A: After the CPU is restarted and configured, initiate a communication test from the DCS or SCADA workstation. Confirm that all mapped tags — vibration amplitude, speed, alarm status, and trip outputs — are updating correctly. If using Modbus TCP, verify the IP address assignment on the communication module has not been reset to factory default.

Q: What if the physical rack slot or backplane connector is damaged?
A: If backplane damage is suspected, the rack chassis should be inspected and replaced before installing the new CPU. Installing a new module into a damaged backplane risks immediate failure. Contact our technical team for guidance on VM600 rack chassis sourcing and compatibility.

Warranty Assurance

Every VM600-CPU-M-200-595-074-122 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify power-on behavior, backplane interface integrity, and communication readiness. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers in active production environments. Our technical team is available to assist with installation questions, configuration guidance, and compatibility verification throughout the warranty period.

Shipment is handled with ESD-safe packaging and appropriate cushioning for international freight. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units. Express shipping options are available for emergency breakdown situations.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration upon request. All units are shipped from Xiamen, China, with full export compliance documentation.
