VIBRO-METER PLD772 254-774-010-024 Original Spare CM Series

Product Overview

VIBRO-METER PLD772 254-774-010-024 Original Spare CM Series: System Stability & Industrial Spare Value

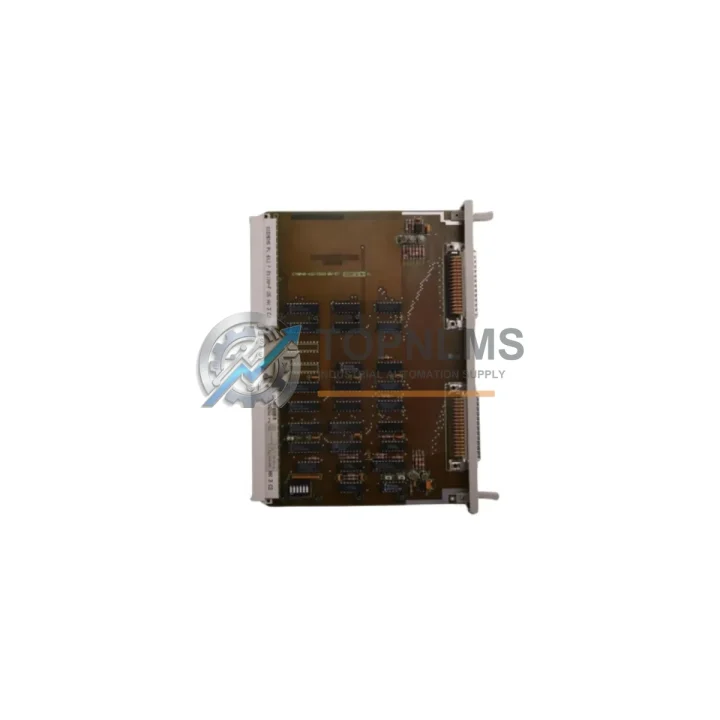

The VIBRO-METER PLD772 (Part No. 254-774-010-024) is an original vibration signal processor module from Meggitt’s CM Series condition monitoring platform. Designed for continuous, high-accuracy vibration measurement in rotating machinery — including turbines, compressors, pumps, and generators — this module serves as a critical link between field-mounted accelerometers or proximity probes and the plant’s DCS or PLC control architecture. Maintaining a verified spare of the PLD772 in your maintenance inventory is one of the most cost-effective decisions a reliability engineer can make: a single unplanned shutdown on a critical rotating asset routinely costs multiples of the module’s replacement value.

Critical Technical Specs

Preventive Maintenance Strategy

When a PLD772 module is flagged for replacement during a scheduled outage or condition-monitoring audit, experienced maintenance teams treat the event as a trigger for a broader inspection of the entire vibration monitoring rack and associated electrical circuit. The CM Series chassis typically houses multiple signal processor cards operating in parallel — if one PLD772 shows calibration drift or relay-output degradation, adjacent channels should be verified before the machine is returned to service.

Begin by checking the CM Series rack power supply module (e.g., VM-METER PSU variants): a marginal supply voltage is a common root cause of intermittent processor faults and should be confirmed with a calibrated multimeter before condemning the signal card itself. Next, inspect the field wiring terminal blocks and cable connectors between the accelerometer or proximity probe and the PLD772 input — corroded or loose terminations account for a significant proportion of apparent module failures in humid or vibration-prone environments.

The proximity probe extension cables and driver/oscillator units (such as the VIBRO-METER VM600 series drivers or equivalent Bently Nevada 3300 XL proximitors) should be checked for impedance and gap voltage at the same time. If the plant runs a mixed monitoring architecture, verify that the analogue I/O modules on the receiving DCS or PLC — whether Siemens ET 200SP AI modules, ABB S800 I/O cards, or Emerson DeltaV CHARMs — are correctly scaled to the PLD772’s 4–20 mA output range.

For facilities operating gas turbines or large centrifugal compressors, the PLD772 replacement interval is also a natural checkpoint for the keyphasor module (phase reference signal conditioner) and any tachometer signal processors in the same rack — these components share the same environmental stresses and often reach end-of-life within the same maintenance window. Similarly, relay output modules and alarm annunciator cards downstream of the PLD772 should be function-tested: a healthy signal processor feeding a failed relay card will still result in a missed shutdown alarm.

Finally, document the replacement in your CMMS and update the vibration baseline trend data in your condition monitoring software. Establishing a new post-replacement baseline within the first 72 hours of operation ensures that future alarm thresholds remain meaningful and that the investment in the original spare part translates directly into measurable uptime improvement.

Strategic Replacement Solutions

The PLD772 254-774-010-024 is a direct OEM replacement for aging CM Series vibration processor cards. Many plants operating legacy Meggitt or VIBRO-METER monitoring systems face the challenge of sourcing original modules as the product line matures — third-party alternatives frequently introduce signal-conditioning differences that require re-calibration of alarm setpoints and can invalidate existing machinery protection certifications.

Sourcing an original PLD772 eliminates this risk entirely. The module slots directly into the existing CM Series rack without firmware changes, preserves the original 4–20 mA scaling, and maintains relay-output logic that downstream safety systems depend on. For plants running SIL-rated machinery protection loops, maintaining OEM hardware is often a compliance requirement, not merely a preference.

Stocking one or two PLD772 units as cold-standby spares reduces mean-time-to-repair (MTTR) for vibration monitoring channel failures from days (procurement lead time) to hours (pull-from-shelf replacement). For multi-train facilities with identical rotating equipment, a single spare can cover multiple assets, making the per-asset inventory cost negligible relative to the downtime risk it mitigates. Each unit shipped from TOPNLMS is tested for output signal accuracy and relay function prior to dispatch, and is covered by a 12-month warranty from the shipment date.

Support FAQ

Q1: Is the PLD772 254-774-010-024 an original OEM part or a compatible replacement?
This is an original VIBRO-METER (Meggitt) part. It is not a third-party compatible or remanufactured unit. Each module is sourced from authorized supply channels and carries the OEM part number 254-774-010-024.

Q2: How do I verify compatibility with my existing CM Series rack before ordering?
Confirm your rack model and existing card slot configuration from your system documentation or the rack’s front-panel label. The PLD772 is designed for standard CM Series card slots. If you are unsure, share your rack model and existing card part numbers with our technical team at [email protected] and we will confirm compatibility before shipment.

Q3: What pre-shipment testing is performed on each unit?
Every PLD772 unit undergoes functional verification of analogue output signal (4–20 mA range check), relay output continuity, and power supply draw before dispatch. A test report is available on request. Units are packed in anti-static protective packaging suitable for international air and sea freight.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage from incorrect installation, overvoltage, or physical impact. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any available diagnostic data. We will arrange return, inspection, and replacement or repair within an agreed lead time.
