VIBRO-METER MPC4 200-510-078-115 Ruggedized Mechanical Protection Module for Harsh Environments

Product Overview

VIBRO-METER MPC4 200-510-078-115: Industrial Resilience in Mechanical Protection

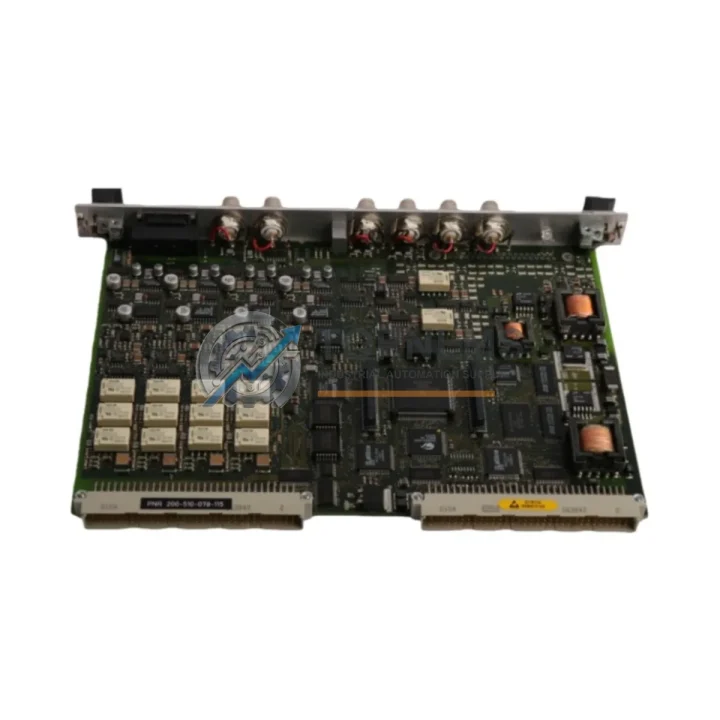

The VIBRO-METER MPC4 200-510-078-115 is a 4-channel mechanical protection card engineered for the VM600 machinery protection system — one of the most trusted platforms in continuous industrial monitoring. Designed and manufactured in Switzerland to the exacting standards that define VIBRO-METER’s reputation, this module delivers unwavering signal integrity and trip-relay reliability in environments where failure is not an option.

Industrial facilities operating rotating machinery — turbines, compressors, pumps, fans, and gearboxes — demand protection hardware that performs without compromise under high temperature, high humidity, persistent vibration, electromagnetic interference, and corrosive atmospheres. The MPC4 200-510-078-115 is purpose-built for exactly these conditions. Its ruggedized card design, conformal-coated PCB, and precision analog front-end ensure that vibration, displacement, and speed signals are processed accurately even in the most electrically noisy environments found in oil refineries, gas compression stations, power generation plants, and heavy metallurgical facilities.

Within the VM600 rack architecture, the MPC4 card slots directly alongside companion modules such as the VM600 RPS600 rack power supply, the VM600 IOC4T I/O and communication card, and the VM600 AMC8 analog monitoring card, forming a tightly integrated protection system. The MPC4 handles the critical final-stage protection logic: it receives conditioned signals from field transducers — eddy-current probes, velocity sensors, or accelerometers — evaluates them against configurable alarm and danger thresholds, and drives relay outputs to initiate controlled shutdowns before catastrophic mechanical failure occurs. This deterministic, hardware-based protection layer operates independently of the host DCS or PLC, ensuring that a communication fault or software exception in the plant’s Siemens S7-400 DCS controller or ABB AC800M process controller cannot mask a genuine mechanical danger condition.

In high-vibration environments such as steel rolling mills or cement kiln drives, the MPC4’s relay outputs can be wired directly into the safety interlock chain of a Rockwell Automation GuardLogix safety PLC or integrated with a Pilz PNOZ safety relay module to enforce SIL-rated shutdown sequences. The card’s isolated analog outputs simultaneously feed real-time vibration trend data to the plant historian via the IOC4T communication card, supporting predictive maintenance programs without interrupting the protection function.

For facilities running variable-speed drives, the MPC4 200-510-078-115 maintains measurement accuracy across the full speed range, making it equally effective when paired with ABB ACS880 variable frequency drives or Siemens SINAMICS S120 drive systems controlling large induction motors. The card’s speed-tracking filters automatically adapt to shaft rotational frequency, eliminating false trips during run-up and coast-down — a critical requirement in power plant auxiliary systems and petrochemical compressor trains.

Field wiring connects through the VM600 system’s dedicated terminal modules, which accept standard shielded instrumentation cable and provide surge-protected inputs that guard against transient overvoltages from nearby high-voltage switchgear or lightning events. In hazardous-area installations, the MPC4 can be deployed in conjunction with MTL or Pepperl+Fuchs Zener barrier modules to maintain ATEX/IECEx compliance for Zone 1 and Zone 2 classified areas in upstream oil and gas applications.

Procurement teams sourcing the MPC4 200-510-078-115 as a spare or replacement card benefit from TOPNLMS’s pre-shipment functional verification process. Every unit undergoes bench testing against VM600 system specifications before dispatch, and is shipped with full anti-static and moisture-barrier packaging to preserve card integrity during international transit. Stock is maintained to support urgent breakdown requirements, with express air-freight options available to minimize plant downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The MPC4 200-510-078-115 is most effective when deployed as part of a complete, layered protection architecture. Within the VM600 rack, it works in concert with the VM600 AMC8 analog monitoring card, which provides continuous 8-channel vibration and process variable monitoring to complement the MPC4’s hard-wired protection trips. The VM600 IOC4T I/O and communication card bridges the protection system to plant-level networks, enabling Modbus RTU or Profibus DP communication with the site’s DCS infrastructure.

At the power supply level, the VM600 RPS600 redundant power supply module ensures that a single PSU failure cannot compromise the protection system’s availability — a non-negotiable requirement in continuous-process industries. For facilities requiring SIL 2 or SIL 3 rated protection loops, the MPC4’s relay outputs integrate cleanly with Hima HIMatrix F60 safety controllers or Triconex Tricon TMR safety systems, providing the hardware voting layer that completes a certified safety instrumented function.

On the field device side, the MPC4 accepts signals from VIBRO-METER 200-series eddy-current probe systems and VM600-compatible velocity transducers, maintaining the signal chain integrity that Swiss-precision measurement demands. In control cabinet installations, Phoenix Contact QUINT power supplies and Weidmüller terminal blocks are commonly used alongside the VM600 rack to provide clean, regulated 24 VDC auxiliary power and organized field wiring termination — both critical for long-term reliability in dusty or vibration-prone enclosures.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the MPC4 200-510-078-115 protects gas turbine-driven compressors and centrifugal pumps on offshore platforms and onshore processing trains. Its fail-safe relay architecture ensures that a card power loss or internal fault triggers an immediate trip signal, preventing undetected bearing failures from escalating into catastrophic seal failures or fires in hydrocarbon-rich environments.

In thermal and combined-cycle power plants, the MPC4 monitors steam turbine shaft vibration and axial displacement, providing the early-warning and hard-trip functions that protect multi-hundred-megawatt generating assets. Utilities operating aging turbine fleets rely on VM600 system spares — including the MPC4 card — to maintain protection system availability without the cost and lead time of full system replacement.

In mining and mineral processing, large ball mills, SAG mills, and conveyor drive systems generate extreme vibration and shock loads. The MPC4’s robust analog front-end and configurable band-pass filters allow protection engineers to isolate specific fault frequencies — such as bearing defect frequencies or gear mesh frequencies — and set targeted alarm thresholds that distinguish genuine faults from normal process-induced vibration.

In water and wastewater treatment, the MPC4 protects large vertical turbine pumps and blower trains that must operate continuously with minimal maintenance intervention. Its 4–20 mA analog outputs feed vibration trend data to SCADA systems, enabling operations staff to track bearing condition over time and schedule maintenance during planned outages rather than responding to emergency breakdowns.

In metallurgical and steel production facilities, where electromagnetic interference from arc furnaces and induction heaters is severe, the MPC4’s conformal-coated PCB and shielded input architecture maintain measurement accuracy that unprotected general-purpose I/O cards cannot match.
