Vibro-Meter GSI130 244-130-000-204 Replacement for VM600

Product Overview

Vibro-Meter GSI130 244-130-000-204 Replacement for VM600: Seamless Transition & Legacy System Upgrade

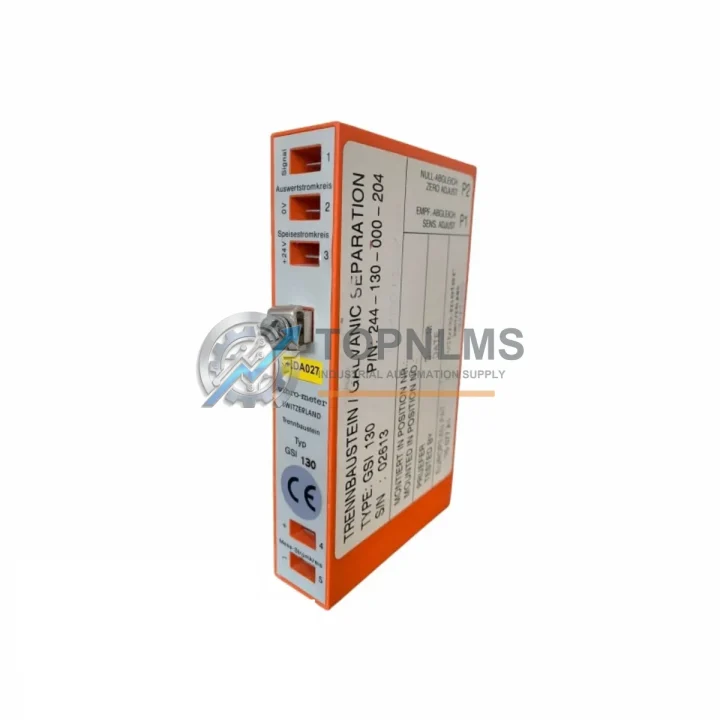

The Vibro-Meter GSI130 (Part No. 244-130-000-204) is a galvanic isolation signal conditioner engineered for the VM600 Series vibration monitoring platform. As aging VM600 racks reach end-of-service life and OEM support windows close, plant engineers and reliability teams face increasing pressure to source verified replacement modules that maintain signal integrity, channel isolation, and rack-level compatibility without triggering a full system overhaul.

TOPNLMS supplies the GSI130 244-130-000-204 as a direct, tested replacement for facilities operating Vibro-Meter VM600 machinery protection systems in power generation, oil & gas, petrochemical, and heavy rotating equipment environments. Every unit is inspected prior to dispatch, ships with full documentation, and is backed by a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful GSI130 replacement rarely happens in isolation. In most VM600-based machinery protection systems, the galvanic isolation module works in concert with a broader set of signal chain and rack components. When planning a like-for-like swap or a phased modernization, engineers typically address the following adjacent modules in the same service window:

The VM600 MPC4 machinery protection card is the most common companion to the GSI130 — it processes the conditioned signals and executes trip logic. If the MPC4 is also approaching end-of-life, replacing both in the same outage eliminates a second planned shutdown. Similarly, the VM600 AMC8 absolute measurement card is frequently found in the same rack for displacement and phase measurement on large turbomachinery, and its signal inputs depend on clean, isolated conditioning from the GSI130 stage.

On the power side, the VM600 RPS6U redundant power supply module provides the rack-level DC power that feeds all signal conditioning cards. A degraded PSU can cause intermittent faults that are misdiagnosed as card failures — verifying or replacing the RPS6U during a GSI130 swap is standard practice. For facilities running eddy-current proximity probes, the VM600 IOC4T I/O card handles the terminal connections between field wiring and the rack backplane, and its terminal block assignments must be verified against the GSI130 channel mapping during reinstallation.

Communication to the plant DCS or SCADA layer is typically handled by the VM600 RCOM rack communication module, which aggregates alarm and measurement data from all cards in the chassis over Modbus RTU, Modbus TCP, or OPC-DA depending on site configuration. No changes to the RCOM configuration are required when performing a direct GSI130 swap, but the module’s firmware version should be confirmed compatible if the replacement card carries a newer hardware revision.

For sites migrating from older Vibro-Meter VM3000 or VM5000 series systems to the VM600 platform, the GSI130 244-130-000-204 is a key enabling component — it provides the isolation barrier that allows legacy Bently Nevada 3300 or 7200 series proximity probes to interface with the VM600 measurement cards without ground loop interference. In these cross-platform migration projects, a VM600 programming cable and VibroSight configuration software license are required to re-map channel parameters after physical installation.

Where signal runs exceed 50 metres or pass through electrically noisy environments (VFD cabinets, high-voltage switchgear rooms), a DIN-rail signal isolator or surge protection terminal block is recommended upstream of the GSI130 input to protect the isolation barrier from transient overvoltage events. TOPNLMS can advise on compatible surge protection accessories based on your site’s cable routing and hazardous area classification.

Retrofit Guidance FAQ

Q: Can I replace the GSI130 244-130-000-204 without powering down the entire VM600 rack?
A: The VM600 chassis supports hot-swap card replacement on most slot positions. However, the specific slot’s alarm inhibit function should be activated in VibroSight before card removal to prevent spurious trip signals from propagating to the DCS. Consult your site’s machinery protection bypass procedure before proceeding.

Q: Will the replacement GSI130 require re-parameterization in VibroSight?
A: For a direct part-number-for-part-number swap (244-130-000-204 to 244-130-000-204), the existing VibroSight configuration file is retained on the MPC4 or AMC8 measurement card — the GSI130 itself is a passive isolation stage and does not store channel parameters. No software changes are required in a like-for-like replacement.

Q: Is the wiring connector on the replacement GSI130 identical to the original?
A: Yes. The 244-130-000-204 uses the standard VM600 front-panel connector format. Field wiring connected to the original module can be transferred directly to the replacement card without re-termination, provided the terminal block is undamaged.

Q: What communication protocols does the VM600 system support after this replacement?
A: The VM600 platform supports Modbus RTU, Modbus TCP/IP, OPC-DA, and PROFIBUS DP via the RCOM communication module. The GSI130 replacement does not affect protocol configuration — all communication settings remain on the RCOM and host measurement cards.

Q: Can the GSI130 244-130-000-204 interface with Bently Nevada proximity probes?
A: Yes. The GSI130 is designed to accept standard eddy-current probe signals (e.g., 200 mV/mil or 8 mV/µm sensitivity) from probes including Bently Nevada 3300 XL and 7200 series, provided the driver/oscillator output voltage range is within the GSI130 input specification. Verify probe driver output levels against the GSI130 datasheet before installation.

Q: What is the physical installation space requirement?
A: The GSI130 occupies a single standard VM600 card slot (6U Eurocard form factor). No additional panel space or DIN-rail mounting is required. The module slides directly into the existing slot vacated by the outgoing card.

Warranty Assurance

Every GSI130 244-130-000-204 supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection including visual examination, connector integrity check, and where test equipment permits, signal path continuity verification. Units that do not meet inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3–5 business days of claim confirmation. Customers are not required to return the defective unit before the replacement is shipped for critical-path orders — a deposit-free advance replacement arrangement is available for verified industrial accounts. Warranty coverage includes manufacturing defects and functional failure under normal operating conditions; it does not cover physical damage caused by incorrect installation, overvoltage events beyond specification, or unauthorized modification.

TOPNLMS maintains stock of VM600 series modules including the GSI130 244-130-000-204 in our Xiamen warehouse, enabling same-day or next-day dispatch for in-stock orders placed before 15:00 CST. International shipments are handled via DHL Express, FedEx International Priority, or freight forwarder depending on destination and order volume. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all cross-border shipments.

For procurement teams requiring traceability documentation, TOPNLMS can provide inspection records, shipment photos, and serial number logs upon request. OEM datasheet copies and installation guides are included with every shipment at no additional charge.
