VIBRO-METER 200-510-074-113 Ruggedized Machinery Protection Module

Product Overview

VIBRO-METER 200-510-074-113 Ruggedized Machinery Protection Module: Industrial Resilience for Harsh Environments

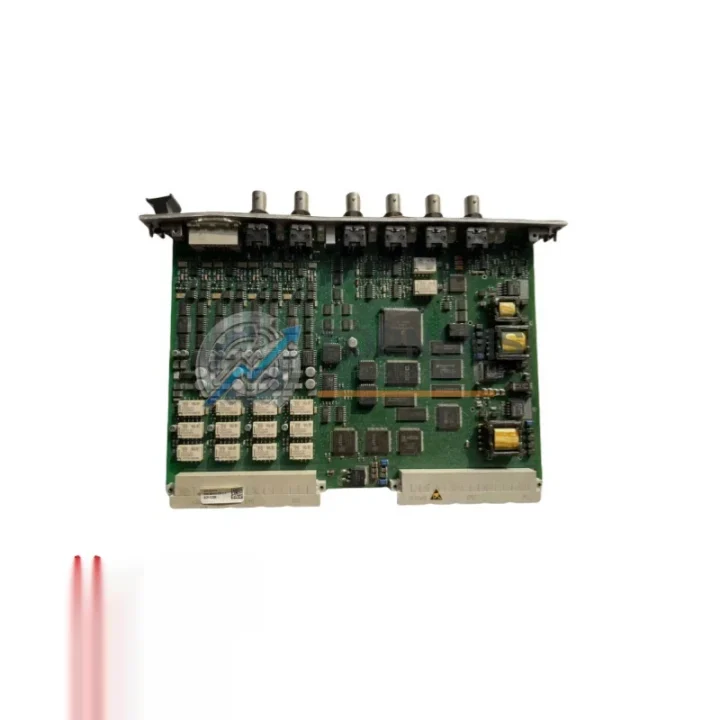

The VIBRO-METER 200-510-074-113 is a high-integrity Machinery Protection I/O Card engineered for the VM600 platform — one of the most trusted continuous machinery monitoring architectures deployed in critical industrial infrastructure worldwide. Designed to operate without compromise in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, this module delivers the signal fidelity and fault-detection reliability that heavy industry demands.

As a core component of the VM600 rack-based system, the MPC4 card interfaces directly with proximity probes, velocity transducers, and accelerometers to acquire real-time vibration, position, and speed data from rotating machinery. Its ruggedized hardware architecture ensures that measurement accuracy is maintained even when installed in close proximity to high-power drives, variable frequency drives (VFDs), large motor starters, and transformer banks — all of which generate significant electromagnetic noise that can corrupt sensitive analog signals in lesser-grade modules.

Rugged Specifications Table

Comprehensive Protection Solutions

The VIBRO-METER 200-510-074-113 MPC4 card does not operate in isolation — it is the sensing and decision-making heart of a broader machinery protection architecture. In a fully configured VM600 rack, it works in concert with the VM600 RPS6 rack power supply, which provides stable, isolated DC power to all installed cards, ensuring that voltage transients from the plant power grid do not propagate into the measurement circuitry. Alongside the MPC4, the VM600 IOC4T I/O card handles relay output routing and trip logic, while the VM600 AMC8 absolute measurement card extends the system’s capability to monitor slow-speed or absolute position signals on auxiliary machinery.

For facilities running integrated control architectures, the VM600 system communicates upstream to Siemens S7-400 or S7-300 series PLCs via Profibus-DP or Modbus RTU, enabling the DCS or SCADA layer to receive real-time machinery health data without additional signal conditioning. In plants where Rockwell Automation ControlLogix or Allen-Bradley CompactLogix controllers govern the process, the VM600 platform’s open communication interfaces allow seamless integration into existing control cabinet architectures.

On the power and protection side, the MPC4 card’s relay outputs are typically wired to Phoenix Contact safety relays or Pilz PNOZ safety modules to enforce hard-wired trip actions independent of the PLC scan cycle — a critical requirement under API 670 and IEC 61511 for turbomachinery protection. Upstream, Weidmüller or Phoenix Contact terminal blocks provide the field wiring interface, ensuring clean, vibration-resistant terminations even in high-shock environments such as compressor halls or turbine decks.

For communication-intensive installations, the VM600 system can be paired with Moxa industrial Ethernet switches or Hirschmann MICE series managed switches to deliver redundant, ring-topology network connectivity — ensuring that machinery protection data reaches the control room without interruption even if a single network segment fails.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the VIBRO-METER 200-510-074-113 is deployed to protect gas compressors, centrifugal pumps, and expander-compressor trains operating continuously in classified hazardous areas. The module’s ability to detect shaft displacement, bearing wear, and rotor imbalance in real time allows operators to transition from reactive maintenance to condition-based maintenance strategies — dramatically reducing unplanned downtime and the risk of catastrophic mechanical failure.

In coal-fired and combined-cycle power plants, the MPC4 card monitors steam turbine shaft vibration and axial position, providing the protection relay logic that trips the turbine before a rub event causes irreversible rotor damage. Its high-noise immunity is particularly valuable in generator halls where large alternators and excitation systems generate broadband electromagnetic interference that can saturate conventional analog I/O cards.

In mining and mineral processing operations, where ball mills, SAG mills, and large slurry pumps run continuously under heavy mechanical load, the VM600 MPC4 card provides the early-warning vibration signatures that maintenance teams rely on to schedule bearing replacements during planned shutdowns rather than emergency stoppages. The module’s tolerance for dusty, high-humidity environments — common in underground and open-pit mining — ensures measurement integrity without requiring additional environmental enclosures.

In water and wastewater treatment plants, the 200-510-074-113 protects high-capacity centrifugal blowers and pump stations that must operate 24/7 with minimal intervention. Its compact rack-mount form factor allows installation in space-constrained control cabinets alongside PLCs, I/O modules, and communication gateways without requiring dedicated protection panel space.

In metallurgical and steel production environments, where rolling mills and continuous casting machines subject instrumentation to extreme vibration and thermal cycling, the VM600 MPC4’s ruggedized design and SIL-capable architecture provide the reliability margins required by both plant safety engineers and insurance underwriters.
