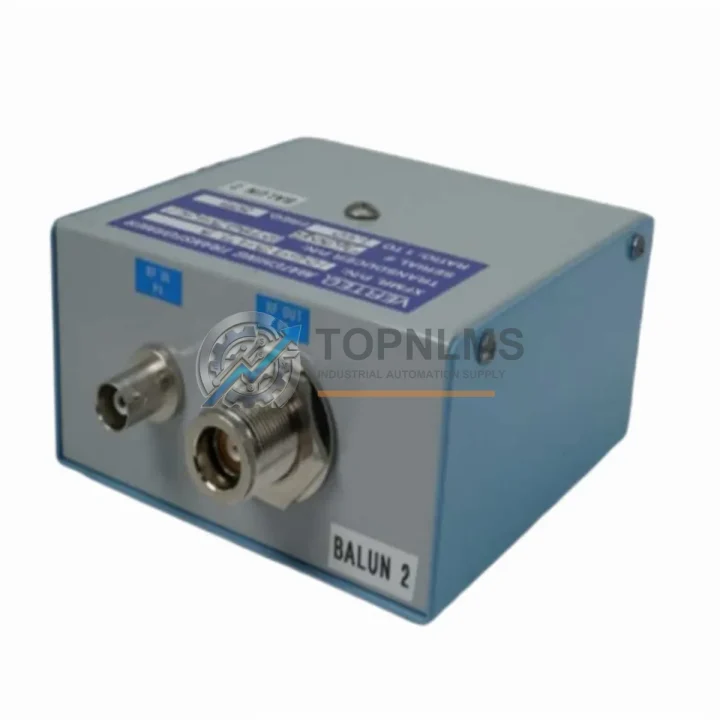

VERTEQ 1078234.5.1 RF Matching Transformer Replacement

Product Overview

VERTEQ 1078234.5.1 RF Matching Transformer Replacement: Seamless Transition & Legacy System Compatibility

The VERTEQ 1078234.5.1 RF Matching Transformer is a precision impedance-matching component engineered for Megasonic wafer cleaning systems widely deployed across semiconductor fabs and advanced packaging facilities. As original VERTEQ Megasonic platforms age and OEM support windows close, facilities face increasing pressure to source reliable replacement or upgrade units that maintain process integrity without requiring full system redesign. This listing addresses that exact need — providing a direct-fit, specification-matched replacement for the 1078234.5.1 (cross-reference: 1069347.3) that enables a smooth, low-risk transition with minimal downtime.

The RF Matching Transformer serves as the critical interface between the RF power generator and the Megasonic transducer array. Its primary function is to dynamically match the impedance of the transducer load to the 50-ohm output of the RF generator, ensuring maximum power transfer efficiency and protecting the generator from reflected power damage. In legacy VERTEQ Megasonic systems — including the Goldfinger, Titan, and Saturn platform variants — the 1078234.5.1 unit is a known wear component that degrades over extended operational cycles due to thermal stress, dielectric aging, and mechanical vibration from the transducer assembly. Facilities running 24/7 wet bench operations typically encounter matching transformer failures every 18–36 months depending on process chemistry aggressiveness and duty cycle.

When replacing the 1078234.5.1, the physical installation is straightforward for qualified process equipment engineers. The unit mounts directly to the existing transducer housing bracket using the original M4 fastener pattern, and the RF coaxial connection to the generator output uses a standard SMA or N-type interface depending on the specific system revision. The DC control signal harness — which carries the auto-tune feedback signal from the matching network controller to the generator — uses the original OEM connector pinout, eliminating the need for any wiring modification. Facilities that have previously replaced the VERTEQ RF Generator Module or the Megasonic Transducer Assembly will find the 1078234.5.1 replacement integrates without any additional interface adaptation.

From a system architecture perspective, the matching transformer operates in conjunction with the VERTEQ Megasonic Power Controller, which manages frequency sweep, power level, and impedance feedback in a closed-loop configuration. Replacement of the 1078234.5.1 does not require re-programming of the power controller or modification of the process recipe parameters stored in the system’s PLC or embedded controller. Facilities using VERTEQ’s proprietary control software or third-party SCADA integration will experience no software-layer disruption during the swap. The replacement unit is pre-tuned to the standard 850 kHz or 1 MHz Megasonic frequency band (confirm your system’s operating frequency prior to ordering) and requires only a brief auto-tune cycle upon first power-up to optimize impedance matching for your specific transducer load characteristics.

For facilities managing a broader Megasonic system retrofit — for example, upgrading from an end-of-life VERTEQ Goldfinger platform to a modernized wet cleaning architecture — the 1078234.5.1 replacement can serve as an interim component to extend the operational life of the existing system while the full migration is planned and budgeted. In this context, it is common to simultaneously source the VERTEQ Megasonic Transducer Assembly, the RF Power Generator Module, the Process Chemistry Pump Module, and the System Control Board as a coordinated set of replacement components to restore full system performance. Facilities that have already upgraded the Megasonic Tank Assembly or the Chemical Delivery Manifold will find the 1078234.5.1 is the final link in restoring the RF subsystem to full specification.

Procurement teams should note that the 1078234.5.1 is a controlled-obsolescence part — VERTEQ no longer manufactures this component under active production, and OEM channel availability is extremely limited. TOPNLMS maintains verified stock of this unit sourced through authorized industrial surplus and OEM overstock channels, with each unit subject to pre-shipment functional verification including impedance sweep testing and visual inspection of the transformer core, winding insulation, and connector integrity. Units are shipped in anti-static packaging with full traceability documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Megasonic system restoration or controlled migration typically involves more than a single component swap. Facilities upgrading from legacy VERTEQ platforms commonly source the following components in parallel with the 1078234.5.1 RF Matching Transformer to achieve a full-system return to specification:

The VERTEQ Megasonic Transducer Assembly is the most frequent co-replacement item — transducer degradation and matching transformer failure often occur concurrently due to shared thermal and electrical stress cycles. Replacing both simultaneously eliminates the risk of a second unplanned outage within the same maintenance window. The VERTEQ RF Power Generator Module is the upstream power source that drives the matching transformer; facilities with generators showing reflected power alarms or frequency instability should evaluate the generator alongside the matching transformer to confirm the fault is isolated to the transformer stage. The VERTEQ Megasonic Power Controller Board manages the closed-loop auto-tune algorithm and is a common upgrade target when migrating from older analog control architectures to digital feedback systems. The VERTEQ Process Chemistry Pump Module and Chemical Delivery Manifold are frequently refreshed during the same planned maintenance outage to minimize total system downtime. For facilities integrating the Megasonic system into a broader fab automation architecture, the VERTEQ System Control Board and associated I/O Interface Module provide the PLC communication bridge between the Megasonic subsystem and the fab-level MES or SCADA platform. Facilities managing multi-tank wet bench configurations may also require the VERTEQ Tank Assembly Liner and Overflow Weir Assembly as part of a comprehensive wet bench overhaul. Finally, the VERTEQ Megasonic Frequency Controller is a recommended upgrade for systems originally configured for single-frequency operation that are being migrated to dual-frequency or swept-frequency process recipes to improve particle removal efficiency on advanced node wafers.

Retrofit Guidance FAQ

Q: Does replacing the 1078234.5.1 require any wiring changes to the existing system?
A: No. The replacement unit uses the original OEM connector pinout for both the RF coaxial interface and the DC control signal harness. No rewiring or cable modification is required for a standard swap on VERTEQ Megasonic platforms.

Q: Will the replacement unit work with my existing RF generator without re-tuning?
A: Yes. The unit is pre-tuned to the standard Megasonic frequency band. A brief auto-tune cycle is recommended upon first power-up to optimize matching for your specific transducer load, but no manual adjustment of the generator is required.

Q: Is the replacement compatible with both 850 kHz and 1 MHz Megasonic systems?
A: Please confirm your system’s operating frequency before ordering. The 1078234.5.1 is frequency-band specific — contact TOPNLMS with your system serial number or process specification to confirm compatibility.

Q: Can this unit be installed without taking the full wet bench offline?
A: The RF matching transformer replacement requires de-energizing the RF subsystem and isolating the transducer circuit. Full wet bench shutdown is recommended for safety compliance. Typical swap time for a qualified process equipment engineer is 30–60 minutes.

Q: What if my system uses a third-party RF generator instead of the original VERTEQ unit?
A: The 1078234.5.1 is designed for the VERTEQ generator output impedance specification. Compatibility with third-party generators depends on the generator’s output impedance and connector type. Contact TOPNLMS for a compatibility assessment before ordering.

Q: Is the replacement unit tested before shipment?
A: Yes. Every unit undergoes impedance sweep testing and visual inspection of the transformer core, winding insulation, and connector integrity before shipment. A test report is available upon request.

Warranty Assurance

Every VERTEQ 1078234.5.1 RF Matching Transformer shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. This warranty covers functional failure under normal operating conditions and includes replacement support for units that fail to meet specification within the warranty period. Pre-shipment functional verification — including impedance sweep testing and physical inspection — is performed on every unit before dispatch from our Xiamen facility. Units are packaged in anti-static, shock-protected packaging with full traceability documentation including part number, serial reference, and test date.

In the event of a warranty claim, TOPNLMS provides a streamlined RMA process with a target response time of 1–2 business days. Replacement units are dispatched from verified stock, and expedited shipping options are available for facilities with critical uptime requirements. Our procurement support team is available to assist with cross-referencing, compatibility verification, and multi-unit sourcing for planned maintenance programs or emergency breakdown scenarios.

For volume procurement, blanket orders, or consignment stock arrangements, contact our industrial sales team directly. TOPNLMS maintains ongoing stock of high-demand VERTEQ Megasonic components to support semiconductor fab customers with predictable lead times and consistent quality standards.
