VERIFLO 0050-36242 Original Industrial Spare 944 Compatible

Product Overview

VERIFLO 0050-36242 Original Industrial Spare 944 Compatible: System Stability & Maintenance Value

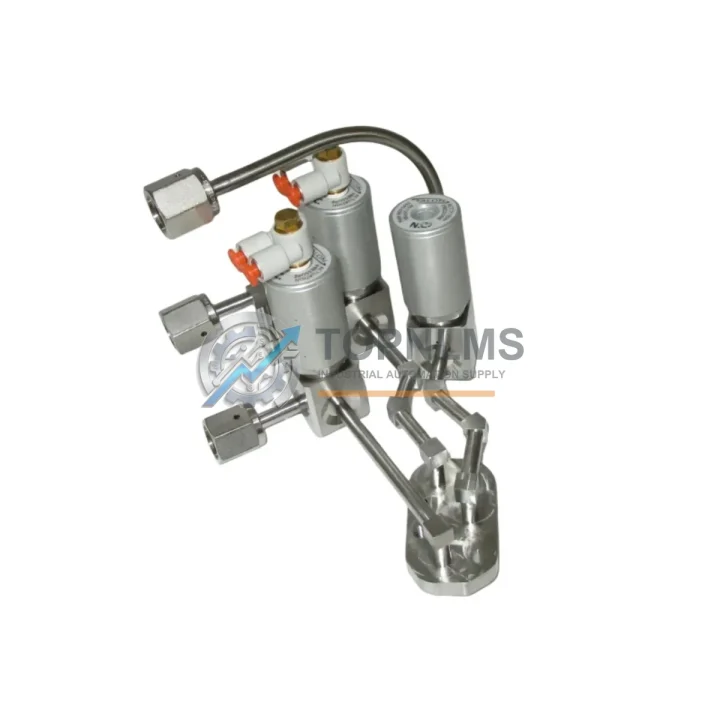

The VERIFLO 0050-36242 is a high-purity 3-valve gas manifold from the 944 Series, engineered for precision gas distribution in semiconductor fabrication, specialty gas delivery, and process-critical industrial environments. As an original spare component, it delivers the dimensional accuracy, material compatibility, and leak-integrity performance that maintenance engineers depend on when system uptime is non-negotiable. Whether you are managing a scheduled turnaround, responding to an unplanned shutdown, or building a strategic spare parts inventory, the 0050-36242 is a direct-fit replacement that eliminates the risk of cross-compatibility failures associated with aftermarket alternatives.

In high-purity gas systems, every connection point is a potential failure node. The 944 Series manifold design addresses this by integrating weldment assembly construction that minimizes particle generation and reduces the number of potential leak paths. For facilities running ultra-high-purity (UHP) process gases — including nitrogen, argon, hydrogen, or specialty dopant gases — maintaining the original specification of each manifold in the distribution network is essential to process yield and personnel safety. The 0050-36242 preserves that specification integrity without requiring system re-qualification.

Critical Technical Specs Table

Preventive Maintenance Strategy

A gas manifold replacement is rarely an isolated event. When a 944 Series manifold such as the 0050-36242 is flagged for replacement — whether due to a failed leak check, a flow restriction, or a scheduled PM interval — experienced maintenance teams treat it as a trigger for a broader system inspection. The gas distribution cabinet housing the manifold should be inspected in full, including the upstream pressure regulators and downstream isolation valves that govern flow to each process tool.

During the same maintenance window, technicians should verify the condition of the stainless-steel tubing and VCR or face-seal fittings connecting the manifold to the gas panel backbone. Fitting wear, micro-cracks, or contamination at these junctions can compromise the purity of the entire gas train even after a new manifold is installed. It is also advisable to inspect the purge valve assemblies and vent valve components within the same gas stick, as these components share the same operational duty cycle and are subject to similar wear patterns.

For facilities using automated gas delivery systems, the mass flow controllers (MFCs) downstream of the manifold should be zero-checked and span-verified after any manifold replacement to confirm that the new component has not introduced a pressure differential that shifts MFC calibration. Similarly, the pressure transducers and differential pressure switches monitoring the gas panel should be tested to ensure accurate readings post-installation.

In multi-zone gas distribution architectures — common in large-scale semiconductor fabs or chemical processing plants — the gas panel may also include pneumatic actuator assemblies, solenoid valve banks, and filter/purifier modules that should be inspected on the same PM cycle. Replacing the 0050-36242 while deferring inspection of adjacent solenoid valves or filter elements is a common source of repeat failures within 30–90 days of the initial repair.

For facilities managing aging gas distribution infrastructure, this maintenance event is also an opportunity to audit the condition of the gas panel’s manual shutoff valves and check valves. These components, often overlooked during routine inspections, can develop seat wear or internal leakage that is only detectable under full system pressure. Proactive replacement of worn shutoff valves during the same downtime window significantly reduces the probability of an unplanned outage in the following maintenance cycle.

Finally, if the gas system feeds a PLC or DCS-controlled process, the I/O signals from the gas panel’s pressure switches and flow sensors should be verified at the controller level after the manifold swap. Signal drift or wiring disturbance during the maintenance procedure can introduce false alarms or masked faults that affect process control stability.

Strategic Replacement Solutions

The VERIFLO 0050-36242 is a direct-fit replacement for the 944 Series manifold position in existing gas distribution panels. Because it is an original VERIFLO component — not a reverse-engineered substitute — it requires no modification to existing tubing runs, fitting interfaces, or mounting hardware. This is a critical advantage in facilities where gas system re-qualification is a time-consuming and resource-intensive process: using an original spare eliminates the need for a full re-qualification cycle and allows the system to return to production status under the existing process qualification documentation.

For facilities that have been sourcing aftermarket manifolds to reduce procurement costs, the 0050-36242 provides a path back to OEM specification without a system redesign. The weldment assembly construction matches the original internal geometry, ensuring that flow coefficients, pressure drop characteristics, and purge efficiency are consistent with the original system design intent. This consistency is particularly important in processes where gas purity specifications are tied to regulatory compliance or customer audit requirements.

From a lifecycle management perspective, maintaining a minimum stock of one or two 944 Series manifold spares — including the 0050-36242 — is a standard recommendation for facilities with more than three gas panels in continuous operation. The lead time for specialty gas components from OEM channels can range from several weeks to several months depending on market conditions. Holding a local spare eliminates this lead time risk entirely and provides the maintenance team with the flexibility to respond to unplanned failures within a single shift rather than a multi-week procurement cycle.

For older installations where the 944 Series has been superseded by newer VERIFLO platform designs, the 0050-36242 remains the correct replacement for the installed base. Attempting to substitute a newer-generation manifold into an older gas panel without engineering review introduces dimensional and flow compatibility risks that can compromise system integrity. The original spare is always the lowest-risk replacement path for legacy systems.

Support FAQ

Q1: What is the warranty coverage for the VERIFLO 0050-36242?
All units ship with a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment inspection including visual examination and documentation verification. Warranty claims are supported by our technical team at [email protected].

Q2: How do I verify compatibility before installation?
The 0050-36242 is designed for direct installation in 944 Series gas distribution panels. Cross-reference your existing manifold’s part number against the alternate references listed (944AOPLPNC3PWTS4275, 615-00325-000, 0200-01271). If you require additional compatibility confirmation, contact our team with your panel model and gas system configuration details.

Q3: What is the recommended spare parts inventory strategy for this component?
For facilities with three or more gas panels in continuous operation, we recommend maintaining a minimum of one 0050-36242 as a local hot spare. Given OEM lead times of 4–16 weeks for specialty gas components, a local spare eliminates procurement risk and supports a same-shift response to unplanned failures.

Q4: What pre-shipment testing is performed on each unit?
Each 0050-36242 unit is inspected prior to shipment for physical integrity, correct part number identification, and packaging condition. Units are shipped in protective packaging appropriate for precision gas components. Detailed inspection records are available upon request for quality-critical procurement processes.
