VAT PM-6 650PM-24CG-ADK4 Replacement for PM-6 Series

Product Overview

VAT PM-6 650PM-24CG-ADK4 Replacement for PM-6 Series: Seamless Transition & Smooth System Upgrade

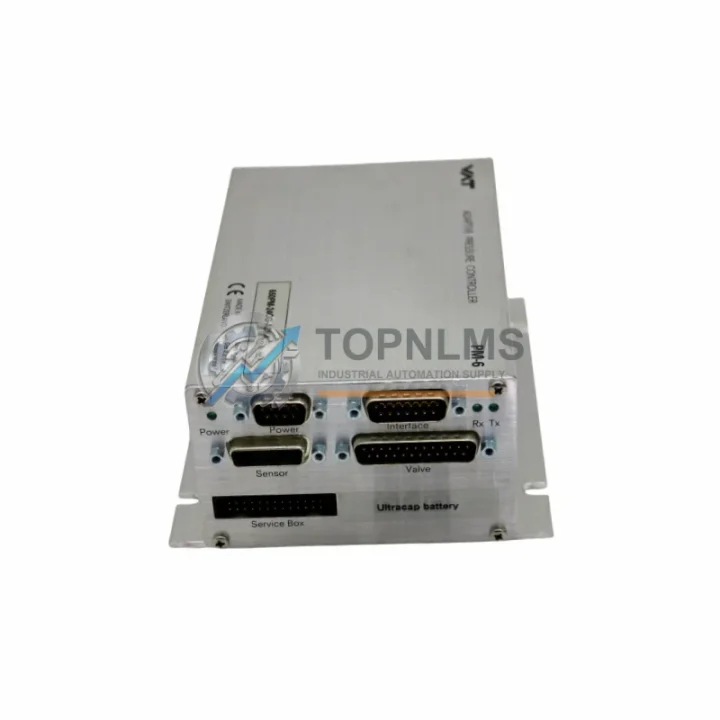

The VAT PM-6 650PM-24CG-ADK4 T208 722B11TCD2FA RAS16 is a high-precision vacuum pressure controller engineered for demanding semiconductor, flat-panel display, solar cell, and industrial vacuum process applications. As legacy PM-6 Series units approach end-of-life or become increasingly difficult to source, facilities engineering teams and procurement managers are actively seeking a verified, drop-in replacement that preserves process integrity while minimizing retrofit complexity and unplanned downtime.

TOPNLMS supplies this VAT PM-6 Series controller as a direct replacement for obsolete or discontinued units. Each unit is sourced from authorized channels, individually inspected, and shipped with a 12-month warranty — giving your maintenance and procurement teams the confidence to plan ahead rather than react to emergency failures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PM-6 Series migration rarely involves a single component swap. In practice, facilities teams upgrading from an aging vacuum control architecture will encounter a broader set of interdependencies across the process chamber and control cabinet. When replacing the VAT PM-6 650PM-24CG-ADK4, engineers typically also evaluate the condition of the associated VAT Series 61 or Series 65 pendulum gate valves that the controller drives, since worn valve actuators can mask controller performance issues and lead to misdiagnosis during commissioning.

On the signal conditioning side, the 4–20 mA or 0–10 V analog setpoint interface of the PM-6 controller connects directly to the process recipe management layer — often a Siemens S7-300 or S7-1500 PLC analog output module, or an equivalent Allen-Bradley ControlLogix 1756-OF8 analog output card. Verifying that the upstream PLC analog output module is calibrated and within specification before installing the replacement PM-6 unit prevents false alarms and setpoint drift during initial process qualification.

For facilities running older Profibus DP networks, the PM-6 Series controller’s fieldbus node address and baud rate settings must be confirmed against the existing Profibus segment configuration. If the network also includes VAT Series 590 or Series 650 pressure measurement transducers, their calibration certificates should be reviewed as part of the same maintenance window to ensure end-to-end measurement traceability.

Power distribution within the control cabinet is another critical checkpoint. The 24 VDC rail supplying the PM-6 controller should be verified against the load budget, particularly if the cabinet also powers a VAT Series 02 or Series 03 solenoid valve island, a Pfeiffer or Edwards turbomolecular pump controller, or a multi-zone heater controller. A dedicated 24 VDC DIN-rail power supply with adequate current headroom eliminates noise-induced instability that can appear as erratic pressure control behavior.

For facilities that use a SCADA or DCS layer — such as a Yokogawa CENTUM VP or Honeywell Experion PKS — the PM-6 controller’s serial or fieldbus interface parameters must be re-entered into the DCS tag database after replacement. This is a straightforward configuration step, but it must be completed before the first automated recipe run to avoid interlock faults. If the site uses a Beckhoff EtherCAT I/O terminal block as a gateway between the PM-6’s RS-232 port and the plant Ethernet backbone, the gateway mapping table should also be verified.

Finally, if the replacement is part of a broader chamber refurbishment that includes a new MFC (mass flow controller) manifold or a replacement residual gas analyzer (RGA), the PM-6 controller’s pressure setpoint ramp rates and PID parameters should be re-tuned to match the updated process gas conductance profile. TOPNLMS can provide application engineering support to assist with parameter baseline recommendations based on your chamber geometry and target process pressure range.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness from the old PM-6 unit?
A: In most cases, yes. The PM-6 650PM-24CG-ADK4 uses the standard VAT PM-6 Series connector pinout. Verify the cable shield grounding scheme against the VAT installation manual before reconnecting to avoid ground loop interference on the analog setpoint signal.

Q: Do I need to re-flash or reconfigure the controller after installation?
A: The unit ships with factory-default parameters. You will need to re-enter your site-specific PID tuning values, pressure setpoint range, and communication node address (if using Profibus or RS-232 protocol). Retain a backup of the outgoing unit’s parameter set before removal.

Q: Is the PM-6 650PM-24CG-ADK4 compatible with my existing Profibus DP segment?
A: Yes, provided the node address is set correctly and the segment termination resistors are in place. Confirm the baud rate matches the master PLC configuration — typically 1.5 Mbit/s or 12 Mbit/s for VAT PM-6 Profibus variants.

Q: What is the physical installation clearance requirement?
A: The PM-6 Series controller uses the same mounting footprint as previous PM-6 variants. No panel cutout modification is required. Ensure a minimum 50 mm clearance on the cable entry side for connector access and heat dissipation.

Q: How do I verify the replacement unit is functioning correctly before returning the chamber to production?
A: Perform a bench-level functional check using a calibrated pressure reference and a 24 VDC bench supply before installation. Confirm the analog output tracks the setpoint across the full control range (typically 0.1 mbar to 1000 mbar, model-dependent). Log the response curve for your maintenance records.

Q: What if my system uses a DeviceNet network instead of Profibus?
A: Contact TOPNLMS before ordering to confirm the specific communication option suffix of the unit in stock. The ADK4 designation in this SKU refers to the actuator and control option; the fieldbus variant is encoded in the full configuration string. Our application team will verify compatibility with your network topology.

Warranty Assurance

Every VAT PM-6 650PM-24CG-ADK4 T208 722B11TCD2FA RAS16 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection that includes power-on verification, communication interface check, and visual inspection for transit damage. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our average response time for warranty inquiries is within 1 business day. Replacement units are dispatched from our Xiamen warehouse, with express international shipping available to minimize your process downtime.

For procurement teams requiring documentation, we can provide a certificate of conformance, packing list, and commercial invoice with HS code declaration for customs clearance. Bulk orders and blanket purchase agreements are supported for facilities with ongoing PM-6 Series replacement programs.

TOPNLMS maintains a dedicated stock of VAT PM-6 Series components to support planned maintenance schedules and emergency breakdown requirements. Contact our technical sales team to discuss consignment stock arrangements or priority allocation for critical process tools.
