VARIAN E19299450 E19299451 Original Industrial Spare Mercury II Compatible

Product Overview

VARIAN E19299450 E19299451 Original Industrial Spare Mercury II Compatible: System Stability & Maintenance Value

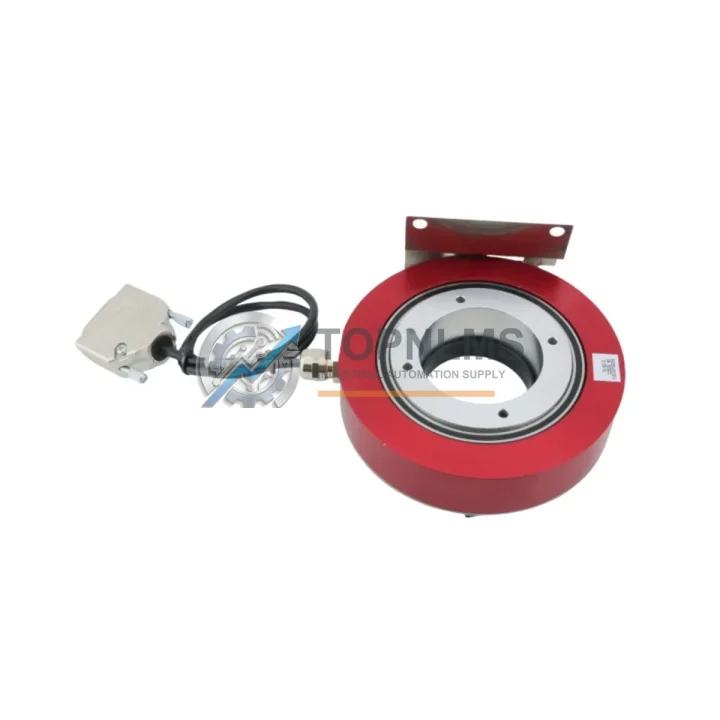

The VARIAN E19299450 / E19299451 Tilt Encoder Assembly is a precision original spare component engineered for the Mercury II 6000 Ion Implanter platform. In semiconductor fabrication and advanced ion implantation environments, the tilt encoder assembly is a mission-critical feedback device that governs wafer tilt positioning accuracy. Any degradation in encoder signal integrity directly translates to process drift, yield loss, and unplanned downtime — making proactive spare management an operational imperative rather than an option.

At TOPNLMS, every unit of the E19299450 / E19299451 is sourced as an original VARIAN component, fully tested prior to dispatch, and backed by a 12-month warranty. Our inventory is maintained to support rapid response for both emergency replacement and planned preventive maintenance cycles across global semiconductor facilities.

Critical Technical Specs

Preventive Maintenance Strategy

The Mercury II 6000 Ion Implanter is a complex multi-axis system where the tilt encoder assembly operates in close interdependence with several other motion and control subsystems. When scheduling a PM cycle or responding to a tilt-axis fault, experienced maintenance engineers know that replacing the encoder assembly in isolation rarely resolves the root cause if adjacent components have accumulated wear.

During a tilt encoder replacement, it is strongly recommended to simultaneously inspect and — where service intervals dictate — replace the VARIAN tilt motor drive board (PCA series) and the associated encoder cable harness assembly, as connector oxidation and cable fatigue are leading causes of intermittent encoder faults that can be misdiagnosed as encoder failure. The Mercury II 6000 end station motion controller board should also be verified for firmware revision compatibility with the replacement encoder assembly to avoid closed-loop tuning issues post-installation.

For facilities running multiple Mercury II 6000 tools, a structured spare parts kit approach significantly reduces mean time to repair (MTTR). A recommended kit includes the E19299450 / E19299451 tilt encoder assembly alongside the VARIAN wafer handler tilt axis servo amplifier, the end station vacuum interlock relay module, and a set of PCA-28430 compatible interface PCBs. Keeping these components in bonded inventory eliminates the 4–8 week lead time risk that typically extends unplanned downtime into production-impacting outages.

Beyond the tilt axis, a comprehensive PM inspection of the Mercury II 6000 should cover the ion beam scanner assembly, the Faraday cup assembly for dose uniformity verification, and the high-voltage power supply modules that drive the ion source. Degradation in any of these subsystems can produce process symptoms — such as dose non-uniformity or implant angle deviation — that are frequently misattributed to encoder drift, leading to unnecessary encoder replacements. Systematic PM documentation that cross-references encoder replacement history with beam diagnostic data is the most effective way to distinguish mechanical encoder wear from upstream process equipment degradation.

For facilities managing aging Mercury II 6000 fleets beyond their original design life, the VARIAN system controller VME backplane and associated VME I/O interface cards are increasingly common failure points. Stocking a spare VME card set alongside the tilt encoder assembly provides a comprehensive safety net for the most statistically probable failure modes in extended-life tool operation. Similarly, the end station roughing pump interface relay board and turbomolecular pump controller module should be included in any serious long-term spare parts strategy for this platform.

Strategic Replacement Solutions

The E19299450 / E19299451 Tilt Encoder Assembly is a direct OEM replacement for the Mercury II 6000 platform, requiring no mechanical modification, firmware re-parameterization, or motion controller recalibration beyond standard post-replacement verification procedures. This makes it the lowest-risk replacement path for facilities that need to restore tool availability quickly without introducing process qualification risk.

For facilities where the original VARIAN part number has been superseded or where procurement channels have been disrupted, the E19299450 / E19299451 assembly — cross-referenced against ME-88-Y233-1 and PCA-28430 — represents the authoritative replacement reference. TOPNLMS maintains traceability documentation for each unit, supporting incoming inspection requirements at ISO-certified fabs and SEMI S2-compliant facilities.

Compared to third-party encoder assemblies or field-rebuilt units, original VARIAN encoder assemblies preserve the factory-specified encoder resolution, signal conditioning characteristics, and mechanical runout tolerances that the Mercury II 6000 motion control algorithms are tuned to expect. Substituting non-OEM components in this position is a known source of subtle process drift that can persist through multiple PM cycles before being identified — a risk that original spare procurement eliminates entirely.

For facilities managing a planned tool decommission or system upgrade, the E19299450 / E19299451 assembly also retains residual value as a tested spare for sister tools or as a trade-in component. TOPNLMS can advise on spare parts lifecycle planning to maximize the return on your existing Mercury II 6000 spare parts inventory.

Support FAQ

Q1: What is the warranty coverage for the E19299450 / E19299451 Tilt Encoder Assembly?
Every unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Each assembly is tested prior to dispatch and ships with a test report upon request.

Q2: How do I verify compatibility with my specific Mercury II 6000 configuration before ordering?
The E19299450 / E19299451 assembly is compatible with the Mercury II 6000 Ion Implanter platform as referenced by assembly codes ME-88-Y233-1 and PCA-28430. If your tool has been modified or upgraded, please contact us at [email protected] with your tool serial number and current encoder part number for compatibility confirmation before ordering.

Q3: What is the typical lead time and how is the assembly packaged for shipment?
In-stock units are dispatched within 1–3 business days. The assembly is packaged in anti-static, shock-absorbing materials appropriate for precision motion components, with export documentation compliant with international shipping requirements. Expedited shipping options are available for emergency downtime situations.

Q4: Can this assembly be used as a long-term inventory spare, and what are the recommended storage conditions?
Yes. The E19299450 / E19299451 assembly is suitable for long-term bonded inventory. Store in a dry, temperature-controlled environment (15–30°C, <60% RH) in the original anti-static packaging. Inspect connector integrity and perform a functional test before installation if the unit has been in storage for more than 24 months. TOPNLMS recommends a rolling spare strategy with a 12–18 month replenishment cycle for high-utilization Mercury II 6000 fleets.
