VALMET DI8P D201126L Replacement Solution for DNA DCS

Product Overview

VALMET DI8P D201126L Replacement Solution for DNA DCS: Seamless Transition from Legacy I/O Systems

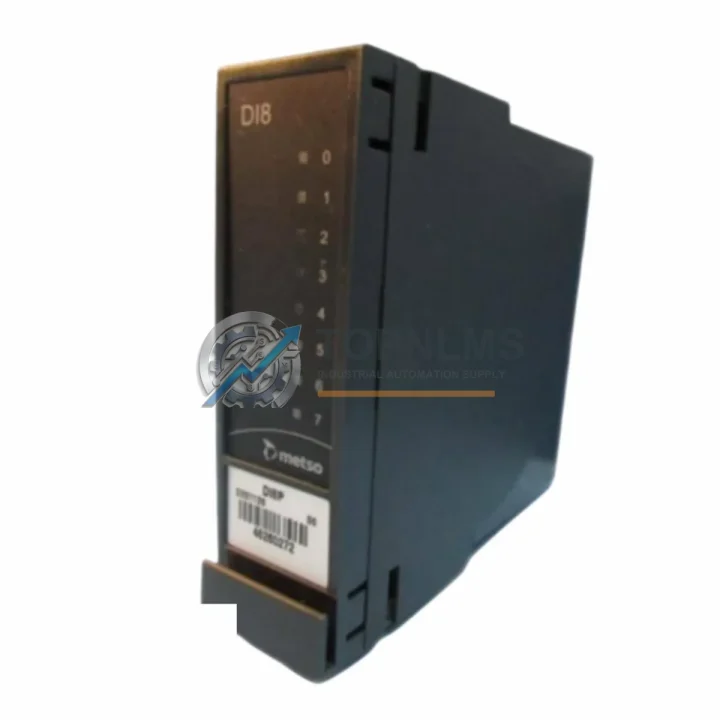

The VALMET DI8P D201126L is an 8-channel digital input module designed for the VALMET DNA Distributed Control System (DCS) platform. As aging DNA DCS installations approach end-of-life or face discontinued spare part availability, plant engineers and procurement teams are increasingly seeking verified replacement and upgrade solutions that preserve system integrity while minimizing unplanned downtime. TOPNLMS supplies the DI8P D201126L as a direct replacement module, fully tested and backed by a 12-month warranty, ready to ship from our Xiamen warehouse to industrial facilities worldwide.

The VALMET DNA DCS architecture is a modular, distributed control platform widely deployed in pulp and paper, power generation, and process industries. The I/O subsystem relies on a structured rack and backplane arrangement where digital input modules such as the DI8P D201126L interface directly with field instruments, limit switches, proximity sensors, and discrete signal sources. When a module fails or becomes obsolete, the replacement must match the original channel count, signal voltage range, isolation class, and backplane connector pinout to avoid rewiring or reprogramming the controller logic.

The DI8P D201126L accepts 8 independent digital input channels, typically operating at 24 VDC field signal levels. Each channel is optically isolated from the backplane bus, protecting the DNA controller — such as the VALMET DNA Controller DCN or associated ACN Application Controller Node — from field-side transients and ground loops. The module slots into the standard DNA I/O rack alongside companion modules including DO8P digital output modules, AI8P analog input modules, and AO4P analog output modules, all sharing the same rack backplane and power distribution architecture.

During a retrofit or emergency replacement, the DI8P D201126L can be installed without modifying the existing field wiring terminal blocks, provided the replacement module matches the original D201126L revision. The DNA system’s I/O configuration is stored in the VALMET DNA Operate engineering environment, meaning the controller does not require re-downloading of I/O maps when a module is hot-swapped in a redundant configuration. For non-redundant installations, a brief controller restart may be required to re-enumerate the I/O bus after module replacement.

Communication between the DI8P D201126L and the DNA controller node is handled over the internal DNA I/O bus, which is a proprietary high-speed serial backplane protocol. This is distinct from the plant-level DNA Field Bus or PROFIBUS DP segments that may be present elsewhere in the same control cabinet. Engineers migrating from older VALMET Damatic XD or Damatic Classic I/O modules to the DNA platform should note that the backplane connector and bus protocol are not backward-compatible; a full rack and module replacement is required when crossing platform generations.

For sites operating mixed-generation VALMET systems, the upgrade path typically involves replacing the legacy I/O rack with a DNA-compatible I/O Base Unit, installing new DI8P D201126L modules, and updating the I/O configuration in the DNA engineering tool. Field wiring can often be re-terminated directly onto the new terminal blocks, preserving the existing cable runs. Power supply modules — such as the VALMET DNA PSU 24VDC Power Supply Module — must be verified for adequate current capacity when expanding the I/O count during a migration project.

For control cabinets with limited physical space, the DI8P D201126L’s compact DIN-rail-compatible rack format allows dense I/O packing. A single DNA I/O rack can accommodate multiple DI8P modules alongside communication interface modules such as the VALMET DNA FBM Field Bus Module or PROFIBUS DP coupler, enabling hybrid architectures where legacy field devices on PROFIBUS coexist with hardwired digital inputs on the same controller node.

TOPNLMS maintains stock of the DI8P D201126L and related DNA I/O modules to support urgent replacement scenarios. Each unit undergoes functional verification prior to shipment, including channel continuity checks, isolation resistance testing, and backplane interface validation. Modules are shipped in anti-static packaging with full documentation. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DNA DCS I/O migration rarely involves a single module in isolation. When replacing the DI8P D201126L, site engineers typically also evaluate adjacent components in the same rack or control cabinet. The DO8P digital output module is the natural companion for mixed I/O applications, handling discrete output signals to solenoid valves, motor starters, and indicator lamps on the same backplane. For process variable acquisition, the AI8P 8-channel analog input module handles 4–20 mA and thermocouple inputs from transmitters and sensors, while the AO4P analog output module drives control valves and variable-speed drives.

Power integrity is critical in any I/O rack upgrade. The VALMET DNA PSU power supply module should be inspected and load-tested when adding new I/O modules to an existing rack, as cumulative current draw from multiple DI8P and DO8P modules can approach the PSU’s rated output. For sites integrating PROFIBUS DP field devices alongside hardwired I/O, the VALMET DNA PROFIBUS DP coupler provides the gateway function within the same rack, eliminating the need for a separate gateway panel. Programming and configuration changes are managed through the VALMET DNA Operate engineering workstation, which stores the I/O module database and generates the controller download package. A DNA programming cable or USB-to-serial adapter compatible with the DNA engineering port is required for on-site configuration verification after module replacement. For HMI-level integration, the VALMET DNA Operate operator station reflects real-time digital input states from the DI8P D201126L channels, enabling operators to verify field signal status immediately after commissioning.

Retrofit Guidance FAQ

Q: Can I replace the DI8P D201126L without rewiring field terminals?
A: Yes, provided the replacement module is the same D201126L revision. The terminal block connector is part of the module assembly and mates directly with the existing field wiring harness. No rewiring is required for a like-for-like replacement.

Q: Does the DNA controller need to be reprogrammed after module replacement?
A: In most cases, no. The I/O configuration is stored in the DNA controller’s non-volatile memory. For hot-swap in a redundant system, the controller automatically re-enumerates the replaced module. For simplex systems, a controller warm restart is typically sufficient.

Q: Is the DI8P D201126L compatible with PROFIBUS DP or other fieldbus protocols?
A: The DI8P D201126L communicates over the internal DNA I/O backplane bus, not PROFIBUS DP. PROFIBUS integration in a DNA system is handled by a dedicated coupler module. The DI8P is for hardwired discrete field signals only.

Q: What is the physical space requirement for installation?
A: The DI8P D201126L occupies one slot in a standard VALMET DNA I/O rack. No additional panel space is required beyond the existing rack slot. Verify that the rack has an available slot before ordering.

Q: Can this module replace Damatic XD or Damatic Classic digital input modules?
A: Not directly. The DNA platform uses a different backplane and bus protocol from the Damatic series. A full rack replacement is required when migrating from Damatic to DNA I/O architecture.

Q: How do I verify the module is functioning correctly after installation?
A: Use the VALMET DNA Operate engineering tool to monitor channel status in real time. Apply a known 24 VDC signal to each input channel and confirm the corresponding status bit changes state in the controller I/O map.

Warranty Assurance

Every VALMET DI8P D201126L module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point functional test including channel activation verification, optical isolation resistance measurement, and backplane connector inspection. Modules that do not meet original VALMET performance specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement module or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We maintain buffer stock of high-demand DNA I/O modules specifically to support rapid warranty replacements without extended lead times.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices upon request. All modules are shipped in ESD-safe packaging with moisture barrier bags and desiccant inserts to ensure safe transit to any global destination.

To place an order, request a quotation, or inquire about stock availability, contact our technical sales team directly.
