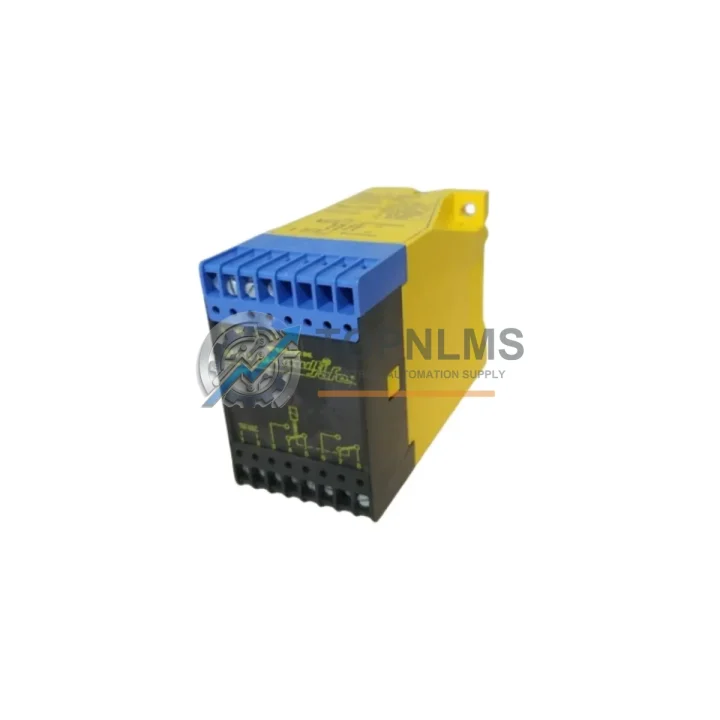

TURCK MS13-22Ex0-R Ruggedized NAMUR Switching Amplifier: Industrial Resilience for Hazardous Environments

The TURCK MS13-22Ex0-R is a high-reliability NAMUR switching amplifier engineered for continuous operation in the most demanding industrial environments. Designed to interface NAMUR-compliant proximity sensors in intrinsically safe (Ex) zones with standard control systems, this module delivers stable, interference-free signal conditioning across explosive atmospheres, high-humidity zones, heavy dust environments, and facilities subject to intense electromagnetic interference (EMI). Whether deployed in a petrochemical control cabinet, a mining automation panel, or a water treatment DCS rack, the MS13-22Ex0-R provides the galvanic isolation and relay output reliability that safety-critical processes demand.

As part of TURCK’s proven MS13 Series, this switching amplifier is built to IEC/EN 60947 and ATEX/IECEx standards, making it a trusted choice for plant engineers who cannot afford signal loss or false trips in Zone 1 and Zone 2 hazardous areas. Its compact DIN rail form factor integrates seamlessly into existing control cabinets alongside PLCs, DCS I/O modules, safety relays, and power distribution components — minimizing retrofit complexity while maximizing system uptime.

Rugged Specifications Table

Comprehensive Protection Solutions

In hazardous-area installations, the MS13-22Ex0-R rarely operates in isolation. A complete intrinsic safety architecture typically begins at the field level with TURCK NI series NAMUR inductive proximity sensors (such as the NI4-M12-AP6X-H1141), which feed clean switching signals into the MS13-22Ex0-R across the Ex barrier. On the safe-side output, the relay contacts interface directly with TURCK IM series isolating switching amplifiers or feed digital inputs on Siemens S7-300/S7-400 DI modules (e.g., SM 321 6ES7321-1BH02-0AA0) commonly used in DCS and safety PLC architectures.

Power supply integrity is equally critical in harsh environments. A TURCK PS510D-24VDC-1.3A DIN rail power supply or equivalent 24 V DC industrial SMPS with high surge immunity ensures the MS13 series amplifiers receive clean, stable power even when heavy motor drives or welding equipment create voltage transients on the same bus. Pairing the MS13-22Ex0-R with a TURCK IM12-14Ex0-HI/24VDC analog isolating amplifier in the same cabinet allows simultaneous handling of both switching and analog signals from the hazardous zone, reducing the number of cable entries through the Ex barrier gland plate.

For cabinet-level protection against EMI and surge, engineers frequently install Phoenix Contact TRABTECH surge protection modules on the 24 V DC supply rail and on individual signal lines entering from the field. Terminal blocks such as the WAGO 750 series or Phoenix Contact PTFIX distribution blocks provide organized, vibration-resistant wiring termination — essential in mining or heavy press environments where mechanical shock is a constant concern. Where the control system communicates over PROFIBUS DP or PROFINET, adding a TURCK BL20 or BL67 remote I/O gateway in the safe area allows the MS13-22Ex0-R relay outputs to be aggregated and transmitted digitally to the main PLC, eliminating long analog cable runs and their associated noise pickup.

Finally, in safety-instrumented systems (SIS) operating to IEC 61511, the MS13-22Ex0-R is often used alongside Pilz PNOZ safety relays or Rockwell Allen-Bradley GuardLogix safety controllers to form a complete SIL-rated shutdown loop. The combination of TURCK’s proven Ex isolation, robust relay output, and compatibility with leading safety PLC platforms makes the MS13-22Ex0-R a cornerstone component in any well-engineered functional safety architecture.

Application in Critical Infrastructure

Oil & Gas: In upstream and midstream facilities — wellheads, compressor stations, and pipeline metering skids — the MS13-22Ex0-R monitors position sensors on valves and actuators located in Zone 1 classified areas. Its relay output drives shutdown logic in the safe-area PLC without any risk of ignition energy reaching the hazardous zone. Offshore platforms particularly benefit from its compact DIN rail footprint, which conserves precious panel space in pressurized instrument rooms.

Mining & Minerals Processing: Underground coal mines and surface mineral processing plants expose control equipment to coal dust, silica dust, high humidity, and constant mechanical vibration. The MS13-22Ex0-R’s robust construction and full galvanic isolation protect the control system from ground loops and induced voltages generated by large conveyor motors and crushers operating nearby. It reliably signals the PLC when chute blockage sensors, belt alignment switches, or level probes in Ex-rated hoppers change state.

Power Generation & Utilities: In thermal power plants and hydroelectric facilities, the MS13-22Ex0-R interfaces NAMUR sensors on turbine lube oil systems, hydrogen-cooled generator enclosures, and fuel gas handling areas. Its high EMI immunity ensures that switching signals from proximity sensors are not corrupted by the intense electromagnetic fields generated by large generators and transformer banks.

Water & Wastewater Treatment: Pump stations and chemical dosing areas in water treatment plants often carry ATEX classifications due to chlorine gas or methane from anaerobic digesters. The MS13-22Ex0-R provides reliable level and flow switch signal conditioning in these environments, feeding SCADA systems with accurate process status data and enabling automated pump protection sequences.

Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and foundries subject control equipment to extreme heat radiation, metal dust, and high-frequency electrical noise from arc furnaces and induction heaters. The MS13-22Ex0-R’s wide operating temperature range and EMC-hardened design allow it to function reliably in control cabinets positioned close to process equipment, reducing cable lengths and improving signal integrity.
