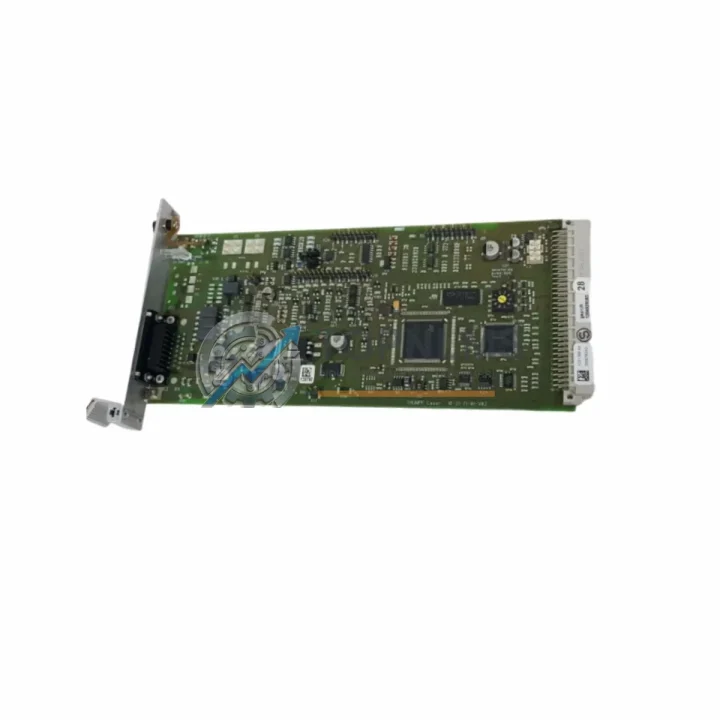

TRUMPF 1309047-18-21-71-00 Replacement for TruLaser Series

Product Overview

TRUMPF 1309047-18-21-71-00 Replacement for TruLaser Series: Smooth Transition & Legacy System Compatibility

When your TRUMPF laser cutting or punching system goes down due to a failed or end-of-life PLC interface control board, every hour of unplanned downtime translates directly into lost production capacity and delayed delivery schedules. The TRUMPF 1309047-18-21-71-00 PLC Interface Control Board is a precision-engineered replacement and upgrade solution designed to restore full operational continuity in TruLaser and TruMatic series machines — without requiring modifications to your existing wiring harness, control cabinet layout, or CNC program logic.

This board serves as a direct form-fit-function replacement for the original TRUMPF interface module, maintaining full compatibility with the machine’s internal communication bus, I/O signal routing, and axis control feedback loops. Whether you are managing a fleet of aging TruLaser 3030, TruLaser 5030, or TruMatic 6000 systems, or executing a phased modernization of your sheet metal fabrication line, this replacement board eliminates the need for costly full-controller overhauls while extending the productive service life of your existing capital equipment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful retrofit of the TRUMPF 1309047-18-21-71-00 rarely occurs in isolation. In most field scenarios, the PLC interface board failure is accompanied by — or accelerates the need to address — adjacent components within the same control cabinet or machine architecture. During the replacement process, engineers frequently inspect and, where necessary, simultaneously replace the TRUMPF power supply module that feeds the control board’s 24 VDC bus rail, as voltage irregularities are a common root cause of interface board degradation.

For machines running older TRUMPF CNC controller generations, the replacement of this interface board is often paired with an inspection of the TRUMPF axis control module and the servo drive feedback card, both of which communicate directly through the same internal bus. Ensuring these components are in serviceable condition before commissioning the new interface board prevents repeat failures and reduces the risk of a second unplanned outage.

In TruMatic combination punch-laser systems, the interface board also interacts with the TRUMPF punch head control module and the tool changer I/O board. Technicians performing a full retrofit should verify the signal integrity of these modules using the machine’s built-in diagnostic routines accessible through the TruTops or TOPS programming environment before and after board replacement.

Where the machine’s communication architecture includes an external network connection to a production management system or DNC server, the TRUMPF Ethernet communication card or fieldbus gateway module (Profibus-DP or DeviceNet variants, depending on installation vintage) should be confirmed operational, as these modules share the same backplane power distribution as the interface board being replaced.

For facilities undertaking a broader modernization initiative — upgrading from legacy TRUMPF TC controller platforms to current-generation TRUMPF TruControl or third-party Beckhoff TwinCAT-based retrofit kits — the 1309047-18-21-71-00 replacement board can serve as a bridge component, maintaining production continuity on the existing machine while the full controller migration is planned and budgeted. In such projects, the TRUMPF I/O terminal block assembly and signal isolation modules are typically retained and reused, reducing the overall retrofit cost and preserving existing field wiring.

Customers sourcing this board as part of a multi-unit spare parts program frequently combine it with the TRUMPF operator panel interface board and HMI display controller card to build a comprehensive critical-spares inventory, ensuring that the most failure-prone electronic assemblies in the control cabinet are covered under a single procurement and warranty cycle.

Retrofit Guidance FAQ

Q: Can I replace the 1309047-18-21-71-00 without modifying the existing wiring harness?
A: Yes. This is a direct plug-and-replace component. The connector pinout, mounting footprint, and signal assignments are identical to the original OEM board. No wiring modifications are required under standard replacement conditions.

Q: Do I need to reload machine parameters or CNC programs after replacement?
A: Machine parameters stored in the CNC controller’s non-volatile memory are not affected by the interface board replacement. However, it is best practice to perform a full parameter backup via TruTops or TOPS before beginning any board swap, and to verify axis reference positions and I/O assignments during the post-installation commissioning check.

Q: Is this board compatible with both TruLaser and TruMatic machine variants?
A: The 1309047-18-21-71-00 is cross-referenced to both TruLaser and TruMatic series applications. Please confirm your machine’s serial number and controller generation with our technical team prior to ordering if you are uncertain about compatibility with a specific machine variant or software version.

Q: What communication protocols does this board support?
A: The board operates on TRUMPF’s proprietary internal CNC communication bus. It does not require external fieldbus configuration. For machines with Profibus-DP or DeviceNet external communication, those protocols are handled by a separate gateway module and are not affected by this replacement.

Q: How much physical space does the replacement board require in the control cabinet?
A: The replacement board matches the original OEM form factor exactly. No additional cabinet space, modified DIN rail sections, or cable management changes are required.

Q: What is the typical installation time for a trained technician?
A: Under normal conditions, a trained TRUMPF service technician or qualified industrial electrician can complete the board swap, parameter verification, and functional test within 2–4 hours, significantly reducing total machine downtime compared to waiting for OEM service scheduling.

Warranty Assurance

Every TRUMPF 1309047-18-21-71-00 PLC Interface Control Board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-stage outgoing quality inspection that includes visual inspection for physical damage, connector integrity verification, and functional bench testing where applicable. Units that do not pass our quality gate are quarantined and never shipped to customers.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical support team at [email protected] with your order number and a description of the fault. Our team will assess the claim and, upon confirmation, dispatch a replacement unit. We do not require customers to wait for the returned unit to be received and inspected before shipping the replacement in cases where the fault description is consistent with a manufacturing defect.

For customers operating in industries where unplanned downtime carries significant financial or safety consequences, we recommend discussing our critical-spares stocking program, which allows pre-positioned inventory of high-risk components at your facility under a consignment or forward-stocking arrangement. This eliminates lead time entirely for the most time-sensitive replacement scenarios.

Stock is maintained in our Xiamen warehouse and is available for immediate dispatch. Standard international shipping lead times are 3–7 business days to most destinations, with expedited options available on request. All shipments are accompanied by a packing list, test certificate, and commercial invoice suitable for customs clearance.
