TRICONEX DI 3301 Replacement/Upgrade Solution for Tricon

Product Overview

TRICONEX DI 3301 Replacement/Upgrade Solution for Tricon: Seamless Transition from Legacy Safety Systems

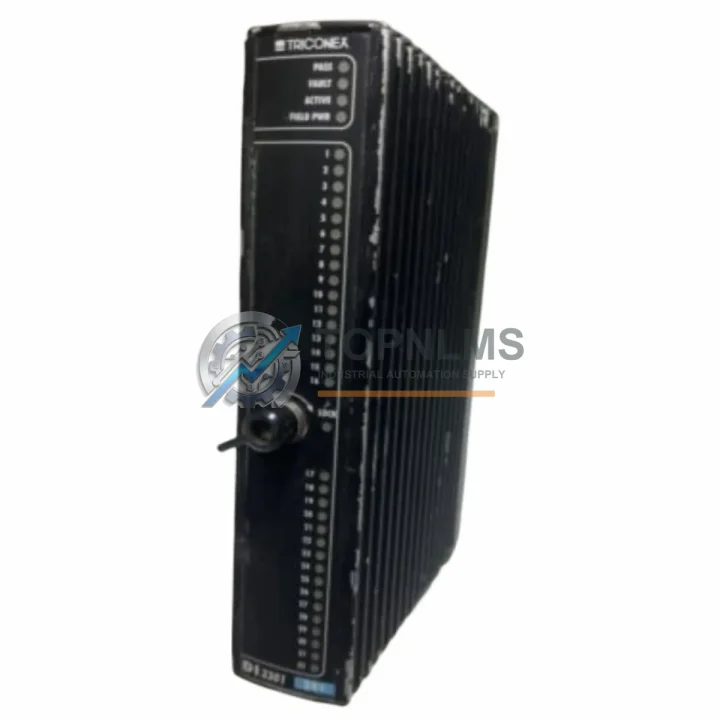

The TRICONEX DI 3301 is a 24 VDC digital input module designed for the Tricon Triple Modular Redundant (TMR) safety system platform. As aging Tricon installations approach end-of-life or as facilities undertake control system modernization programs, the DI 3301 serves as a direct, field-proven replacement for discontinued or degraded digital input modules within the same chassis. Whether your plant is migrating from an earlier-generation Tricon I/O configuration or consolidating spare-parts inventory ahead of a scheduled turnaround, the DI 3301 delivers the electrical compatibility, communication transparency, and physical form factor required for a smooth, low-risk cutover.

Industrial facilities running Tricon-based safety instrumented systems (SIS) frequently encounter the challenge of sourcing reliable replacements for modules that have been discontinued, damaged, or exhausted from safety-critical spares pools. The DI 3301 slots directly into the Tricon main chassis backplane without requiring rewiring of field termination assemblies (FTAs). Existing 32-channel wiring harnesses connected to the corresponding FTA remain intact, eliminating the need for loop re-termination and the associated loop-check procedures that extend shutdown windows. This plug-and-play compatibility is a decisive advantage when minimizing mean time to repair (MTTR) is a contractual or regulatory obligation.

From a communication architecture standpoint, the DI 3301 operates natively within the Tricon TMR backplane bus, exchanging voted digital states with the Main Processor (MP) modules without any protocol conversion layer. Plants that have standardized on TriStation 1131 programming software will find that no logic modifications are required following a module swap — the I/O map, force tables, and diagnostic messaging remain consistent with the original configuration. This is particularly valuable in SIL 2 and SIL 3 certified loops where unauthorized program changes trigger mandatory revalidation cycles.

For facilities transitioning from older Tricon hardware generations, the DI 3301 is compatible with both legacy and current Tricon chassis variants, including the 3008 and 3006 main chassis configurations. Engineers managing multi-chassis architectures connected via the Enhanced Intelligent Communication Module (EICM) or the Network Communication Module (NCM) will find that the DI 3301 integrates without disrupting the peer-to-peer communication topology between Tricon nodes. Similarly, plants using the Tricon Communication Module (TCM) for Modbus or OPC connectivity to distributed control systems (DCS) or historian platforms will experience no interruption to data acquisition pipelines during the module replacement.

Physical installation follows the standard Tricon hot-maintenance procedure where permitted by the site safety management of change (MOC) process. The module occupies a single I/O slot in the Tricon chassis and connects to the field via the standard 32-channel FTA, which may be a model such as the 3703E or 3721 termination assembly depending on the field wiring configuration. No additional mounting hardware, DIN rail adapters, or panel cutouts are required. The module’s front-panel LED diagnostics — including per-channel status, module fault, and TMR voting indicators — are identical to those of the original DI 3301, ensuring that maintenance technicians familiar with the existing installation can perform visual verification without additional training.

Power consumption and heat dissipation characteristics of the DI 3301 are within the original chassis power budget, so no reassessment of the Tricon Power Module (PM) loading is necessary in standard replacement scenarios. Plants operating near the chassis power limit due to high-density I/O configurations should confirm total slot loading as part of their pre-installation engineering review, consistent with standard Tricon system engineering practice.

From a procurement and lifecycle management perspective, sourcing a tested DI 3301 from TOPNLMS provides an alternative supply channel for facilities whose OEM support contracts have lapsed or whose regional distributors cannot meet lead-time requirements. Each unit offered by TOPNLMS is subject to functional testing prior to shipment, covering channel-level input verification, TMR voting logic, and backplane communication integrity. Units are shipped with appropriate ESD protective packaging and are accompanied by a test report upon request.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Tricon system modernization or emergency replacement rarely involves a single module in isolation. In practice, engineers sourcing a DI 3301 are often simultaneously reviewing the health of adjacent I/O and infrastructure components. The Tricon Digital Output module DO 3401, for example, shares the same chassis slot form factor and FTA wiring philosophy, making it a natural companion procurement when a control cabinet audit reveals multiple degraded modules. Similarly, the Tricon Analog Input module AI 3351 is frequently reviewed alongside digital input replacements in mixed I/O chassis configurations common in oil and gas and chemical processing applications.

The Tricon Main Processor (MP) module — particularly the 3008 MP — is another component that facilities often address during the same maintenance window as an I/O module replacement, especially when diagnostic logs indicate processor-level communication errors that could be misattributed to a faulty input module. Ensuring the MP is in good health before completing a DI 3301 swap eliminates ambiguity during post-replacement loop testing.

For plants integrating Tricon safety systems with a Honeywell Experion PKS or Yokogawa CENTUM VP distributed control system, the Tricon Communication Module (TCM) and the Enhanced Intelligent Communication Module (EICM) are critical interface components that should be verified as part of any I/O migration project. A degraded EICM can cause intermittent data loss to the DCS historian even after a successful I/O module replacement, leading to unnecessary troubleshooting cycles.

Facilities that use Modbus RTU or Modbus TCP for integration between the Tricon system and third-party SCADA platforms should also confirm the health of the Network Communication Module (NCM) during the same maintenance window. The NCM manages all external communication sessions and its firmware version must be compatible with the TriStation 1131 project version loaded on the MP modules.

Finally, the Tricon Power Module (PM) and chassis backplane integrity should be assessed whenever multiple I/O modules are being replaced. An aging PM operating near its rated output can cause marginal voltage conditions that accelerate I/O module degradation — addressing the PM proactively during a planned outage avoids a secondary unplanned shutdown. The Tricon 3006 and 3008 chassis backplanes themselves, along with the associated termination panel assemblies and field junction boxes, round out the typical bill of materials for a comprehensive Tricon system refresh project.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing the DI 3301?
No. The DI 3301 connects to the field via the existing Field Termination Assembly (FTA). The FTA remains in place and all field wiring stays connected. Only the module itself is swapped in the chassis slot.

Q: Will I need to modify my TriStation 1131 program after the replacement?
No program changes are required for a like-for-like DI 3301 replacement. The I/O address map, alias tags, and force table entries remain valid. A functional test of affected I/O points is recommended as part of the post-replacement commissioning checklist.

Q: Is the DI 3301 compatible with both the Tricon 3006 and 3008 chassis?
Yes. The DI 3301 is compatible with both main chassis variants. Confirm the slot assignment in your TriStation project matches the physical slot location before powering the chassis.

Q: Can the replacement be performed under power (hot-swap)?
Tricon TMR architecture supports hot-maintenance procedures for I/O modules under specific conditions defined in the Tricon System Planning and Installation Guide. Whether hot-swap is permissible depends on your site’s safety MOC process, the SIL rating of the affected loops, and whether the remaining two legs of the TMR are healthy. Always consult your site safety engineer before performing any hot-maintenance operation.

Q: What communication protocols does the DI 3301 support?
The DI 3301 communicates exclusively via the Tricon TMR backplane bus. External protocol interfaces (Modbus, OPC, HART) are managed by dedicated communication modules (TCM, NCM, EICM) and are not affected by a DI 3301 replacement.

Q: How do I verify the module is functioning correctly after installation?
Use TriStation 1131 online monitoring to confirm that all 32 input channels report expected states. Check the module’s front-panel LEDs for fault-free status. Perform a loop test on a representative sample of field instruments connected to the replaced module and document results in your site’s maintenance management system.

Q: What if the physical slot in my chassis is damaged?
If the chassis backplane connector is damaged, the slot must be repaired or the chassis replaced before installing a new module. TOPNLMS can advise on Tricon chassis sourcing as part of a broader system refresh scope.

Warranty Assurance

Every TRICONEX DI 3301 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing that includes channel-level input verification across all 32 digital input channels, backplane communication integrity checks, and TMR voting logic validation. A test report is available upon request and can be provided as part of the documentation package for your site’s MOC or spare-parts qualification process.

Units are packaged in anti-static ESD bags and shipped in rigid foam-lined cartons to protect against transit damage. Shipment is from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and destination. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard. HS Code 853710 applies.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund following confirmation of the defect. Our technical support team is available to assist with pre-installation verification questions and post-installation troubleshooting via email and phone. Response time for warranty inquiries is within one business day.

For volume procurement, blanket orders, or consignment stocking arrangements to support ongoing Tricon maintenance programs, please contact our sales team directly to discuss pricing, lead times, and quality documentation requirements.
