TRICONEX 9771-210 Replacement for Tricon TMR Series

Product Overview

TRICONEX 9771-210 Replacement for Tricon TMR Series: Seamless Migration & Compatibility Upgrade

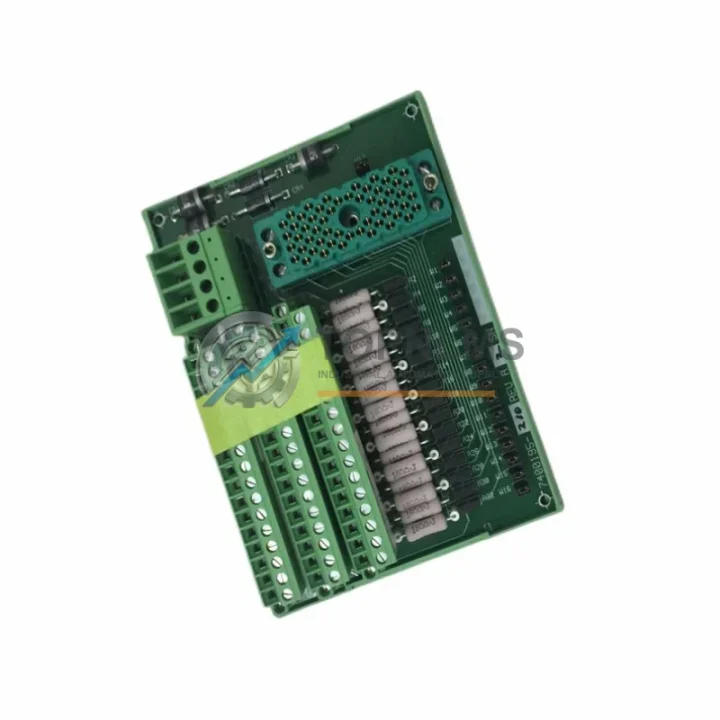

The TRICONEX 9771-210 is a Tricon Triple Modular Redundant (TMR) Field Wiring Termination Panel designed for SIL 3 certified safety instrumented systems. As legacy Tricon installations age and original panels approach end-of-life, plant engineers and procurement teams increasingly require a verified, drop-in replacement that preserves existing field wiring, cabinet layouts, and safety logic without triggering a full system re-engineering cycle. The 9771-210 sourced through TOPNLMS is tested, serialized, and shipped with a 12-month warranty, making it a reliable choice for both emergency replacement and planned maintenance shutdowns.

Facilities running Tricon TMR architectures — particularly those built around the Tricon v9 and v10 controller platforms — often face the challenge of sourcing compatible termination panels when the original OEM supply chain is constrained. The 9771-210 termination panel interfaces directly with Tricon I/O modules and maintains the same field terminal block layout, allowing field wiring to be reconnected without re-labeling or re-routing. This is critical in SIL 3 environments where any modification to the safety loop must be documented, validated, and approved under IEC 61511 or IEC 61508 frameworks. A like-for-like panel replacement minimizes the scope of the management of change (MOC) process and reduces the risk of introducing new failure modes.

During a typical Tricon TMR panel replacement, the migration workflow begins with a physical audit of the existing termination assembly. Engineers verify that the 9771-210 replacement matches the original panel’s terminal block pitch, DIN rail mounting footprint, and chassis connector pinout. In most Tricon installations, the termination panel connects to the main chassis backplane via a dedicated ribbon or D-sub interface; the 9771-210 preserves this interface geometry, ensuring that the Tricon 3008 or 3006 main chassis and associated Tricon 3700A or 3721 I/O modules remain undisturbed. No changes to the Tricon TriStation 1131 programming environment are required when replacing a termination panel on a like-for-like basis, which further reduces validation effort.

Power supply compatibility is another key consideration. The 9771-210 operates within the standard Tricon TMR power distribution architecture, accepting input from the Tricon 8312 or 8310 power supply modules without modification. In redundant power configurations — common in oil and gas, petrochemical, and nuclear applications — the panel’s passive termination design ensures that a single power supply fault does not compromise field signal integrity. This characteristic is essential for maintaining the TMR voting logic that underpins SIL 3 certification.

Communication protocol compatibility is preserved throughout the replacement process. The 9771-210 termination panel does not carry active communication logic; it serves as a passive wiring interface between field instruments and the Tricon I/O subsystem. As a result, existing Modbus, TSAA (Triconex System Access Application), or OPC-based SCADA integrations — including connections to DeltaV, Honeywell Experion, or Yokogawa CENTUM systems — remain fully operational after panel replacement. No changes to the Tricon communication module (TCM) configuration or network addressing are required.

For facilities planning a broader control system modernization, the 9771-210 replacement can serve as a bridge component during a phased migration from legacy Tricon v9 hardware to newer Tricon CX or Triconex Trident platforms. In this scenario, the termination panel is retained as a field wiring anchor point while the controller chassis and I/O modules are progressively upgraded. This approach allows production to continue during the migration window, with the 9771-210 providing a stable, certified interface layer that decouples field instrument rewiring from controller upgrade scheduling. Related components commonly involved in such migrations include the Tricon 3008 main chassis, Tricon 3700A analog input modules, Tricon 3805E digital output modules, Tricon 3664 communication modules, and Tricon 8312 power supply modules.

Installation space compatibility is a frequent concern in brownfield retrofits. The 9771-210 maintains the same physical envelope as the original panel, fitting standard 19-inch rack or DIN rail enclosures without requiring cabinet modification. In facilities where control room space is constrained — particularly offshore platforms or compact process skids — this dimensional compatibility eliminates the need for custom panel fabrication or cabinet extension, both of which introduce lead time and cost. The panel’s terminal block design also supports standard 1.5 mm² to 2.5 mm² field wiring, consistent with existing cable schedules.

From a procurement and supply chain perspective, TOPNLMS maintains stock of the 9771-210 for immediate dispatch. Each unit undergoes pre-shipment functional verification, including terminal continuity testing and visual inspection against OEM specifications. Units are packaged in anti-static, moisture-resistant materials suitable for international air freight or sea freight. Standard lead time for in-stock units is 3–7 business days to most destinations, with expedited options available for emergency shutdowns. Export documentation, including commercial invoices, packing lists, and certificates of origin, is provided as standard.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Tricon TMR panel replacement rarely occurs in isolation. In most brownfield modernization projects, the 9771-210 termination panel is replaced alongside or in close coordination with adjacent system components. The Tricon 3008 main chassis is the most common co-replacement item, particularly in installations where the chassis backplane has accumulated thermal stress over extended service life. When the chassis is replaced simultaneously, the 9771-210’s connector interface ensures that the new chassis accepts the existing field wiring termination without adapter hardware.

Analog signal integrity is maintained through the Tricon 3700A analog input module, which interfaces with the 9771-210 panel to receive 4–20 mA signals from field transmitters. In systems where the analog input module is also approaching end-of-life, replacing both the 3700A and the 9771-210 panel in the same maintenance window eliminates the risk of a second unplanned outage within a short interval. Similarly, the Tricon 3805E digital output module — used for solenoid valve and relay control in safety shutdown systems — can be refreshed in the same campaign without requiring changes to the field wiring schedule, since the 9771-210 termination panel preserves the existing terminal assignments.

For facilities that rely on serial or network-based SCADA integration, the Tricon 3664 communication module provides the interface between the Tricon TMR controller and plant DCS or historian systems. Replacing the 9771-210 panel does not affect the 3664’s configuration or network addressing, but procurement teams often use the panel replacement as a trigger to audit the communication module’s firmware version and replace aging units proactively. The Tricon 8312 power supply module is another component frequently reviewed during panel replacement campaigns, as power supply degradation is a leading cause of nuisance trips in aging TMR systems.

In facilities transitioning toward newer safety system architectures, the 9771-210 replacement may be accompanied by the introduction of signal isolators or marshalling panels to support hybrid wiring configurations. Galvanic isolators — such as those used to interface legacy 24 VDC field devices with newer 3.3 V or 5 V logic-level I/O modules — are commonly installed in the same cabinet as the 9771-210 panel, using the available DIN rail space. This approach allows the field wiring to remain unchanged while the I/O subsystem is progressively modernized, reducing the total cost and schedule risk of the migration program.

Retrofit Guidance FAQ

Q: Does replacing the 9771-210 require changes to the TriStation 1131 safety program?
A: No. The 9771-210 is a passive field wiring termination panel with no embedded logic. A like-for-like replacement does not alter the safety program, I/O channel assignments, or voting logic. No re-download or re-validation of the TriStation 1131 application is required for a direct panel swap.

Q: Is the field wiring compatible without re-termination?
A: Yes, provided the replacement 9771-210 matches the original panel’s terminal block layout. TOPNLMS verifies terminal block pitch and connector pinout prior to shipment. In most cases, existing field cables can be transferred directly to the replacement panel using the original cable schedule, eliminating re-labeling and re-testing of individual field loops.

Q: What communication protocols are supported after replacement?
A: The 9771-210 is a passive panel and does not carry communication logic. All communication protocols — including Modbus RTU, Modbus TCP, TSAA, and OPC DA/UA — are handled by the Tricon communication module (TCM) and remain unaffected by the panel replacement. SCADA, DCS, and historian connections continue to operate without reconfiguration.

Q: Will the replacement panel fit the existing cabinet without modification?
A: Yes. The 9771-210 maintains the same physical dimensions as the original panel, compatible with standard 19-inch rack and DIN rail enclosures. No cabinet modification, custom bracket fabrication, or cable extension is required. This is particularly important in space-constrained installations such as offshore platforms and compact process skids.

Q: What is the scope of the Management of Change (MOC) process for this replacement?
A: A like-for-like replacement of the 9771-210 panel typically falls within the minimal MOC category under IEC 61511 guidelines, as the replacement does not alter the safety function, I/O channel configuration, or system architecture. Plant safety engineers should confirm MOC classification with their functional safety assessor, but in most cases, the documentation scope is limited to a replacement record and post-installation continuity test report.

Q: Can the 9771-210 be used during a phased migration to Tricon CX or Trident platforms?
A: Yes. The 9771-210 is commonly used as a field wiring anchor during phased migrations, where the controller chassis and I/O modules are upgraded progressively while field wiring remains connected to the existing termination panel. This approach decouples the field instrument rewiring schedule from the controller upgrade timeline, reducing production impact and migration risk.

Warranty Assurance

Every TRICONEX 9771-210 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, terminal block integrity, connector interface functionality, and panel structural integrity under normal operating conditions. Units that fail within the warranty period are replaced or refunded at no additional cost to the buyer, with priority dispatch to minimize system downtime.

Pre-shipment testing is conducted on every unit and includes terminal continuity verification across all field wiring positions, connector interface inspection against OEM dimensional specifications, and visual examination for physical damage, corrosion, or contamination. Test records are available upon request and can be included in the shipment documentation package for facilities that require traceability under their quality management system.

TOPNLMS maintains a dedicated after-sales support channel for technical queries related to installation, compatibility verification, and replacement procedures. Response time for warranty claims and technical inquiries is within 24 hours on business days. For emergency replacement scenarios — including unplanned shutdowns and safety system failures — expedited processing and same-day dispatch options are available for in-stock units.

Procurement documentation provided as standard includes a commercial invoice, packing list, certificate of origin, and pre-shipment test report. Export compliance documentation is available for shipments subject to customs declaration requirements. All units are packaged in anti-static, moisture-resistant materials with foam cushioning suitable for international air freight or sea freight transit.
