TRICONEX 9563-810 Original Industrial Spare Tricon TMR Compatible

Product Overview

TRICONEX 9563-810 Original Industrial Spare Tricon TMR Compatible: Ensuring System Stability in Safety-Critical Environments

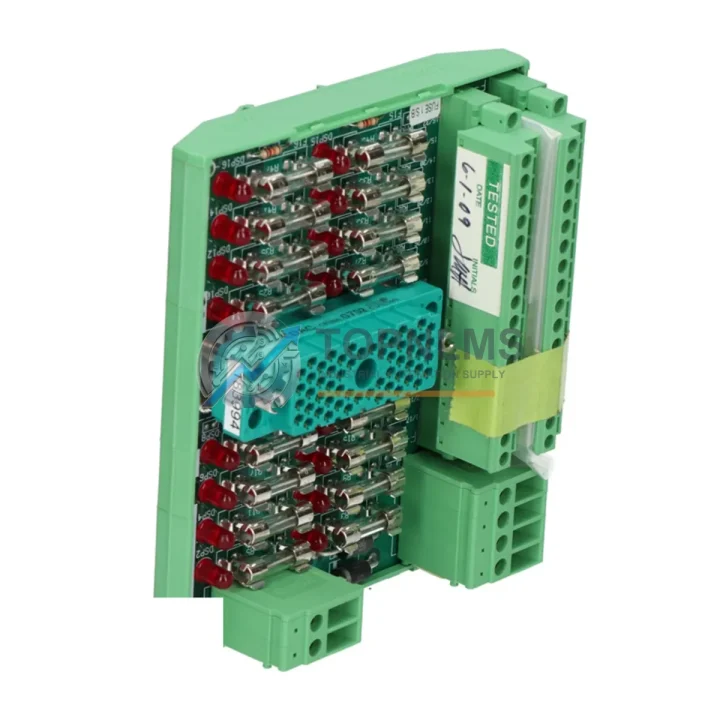

The TRICONEX 9563-810 is an original digital input termination panel engineered specifically for the Tricon Triple Modular Redundant (TMR) safety system platform. Designed to meet IEC 61511 SIL 3 requirements, this termination panel serves as a critical field-wiring interface between process instrumentation and the Tricon main chassis, enabling reliable signal conditioning and fault-tolerant I/O management in the most demanding industrial environments. Whether you are managing a petrochemical plant, an offshore platform, a power generation facility, or a continuous process manufacturing site, the 9563-810 is a cornerstone component for maintaining the integrity of your safety instrumented system (SIS).

Sourced directly from original manufacturing channels, every unit stocked at TOPNLMS undergoes pre-shipment functional verification to confirm electrical continuity, terminal integrity, and connector alignment. This ensures that when your maintenance team installs the 9563-810 during a planned turnaround or an emergency corrective action, the module performs exactly as the system expects — no surprises, no delays.

Critical Technical Specs

Preventive Maintenance Strategy

A well-structured preventive maintenance program for a Tricon TMR safety system extends far beyond replacing a single termination panel. The 9563-810 sits at the field-wiring boundary of your SIS, which means its condition directly affects the quality of every digital input signal entering the Tricon controller. During scheduled plant shutdowns or annual SIS proof tests, maintenance engineers should treat the 9563-810 replacement as part of a broader inspection routine rather than an isolated task.

When accessing the Tricon chassis to service or replace the 9563-810 termination panel, it is best practice to simultaneously inspect the associated TRICONEX 3501 or 3503 Digital Input Module seated in the main chassis. These modules process the signals terminated at the 9563-810, and worn connector pins or accumulated contamination on the module’s backplane interface can introduce intermittent faults that are difficult to diagnose under live process conditions. Replacing both the termination panel and the input module during the same maintenance window eliminates a common source of nuisance trips.

Field wiring integrity is equally important. The screw terminals on the 9563-810 should be inspected for oxidation, loose connections, and insulation degradation — particularly in high-humidity or chemically aggressive environments. At the same time, engineers should verify the condition of the field junction box cables and shielded instrumentation cables connecting process transmitters to the termination panel. Damaged cable shielding is a leading cause of common-mode noise injection into digital input circuits, which can cause false state transitions in SIL 3 logic.

Power supply health is another critical factor. The Tricon TMR system relies on redundant 24 VDC power rails to maintain fault tolerance. During the same maintenance interval, it is advisable to test the TRICONEX Power Supply Module (e.g., 8312 or 8310 series) output voltage, ripple, and load regulation. A degraded power supply that still passes basic voltage checks may fail under transient load conditions, causing unexpected module resets. Stocking a spare power supply module alongside the 9563-810 is a prudent inventory strategy for any facility running a Tricon-based SIS.

Communication infrastructure should not be overlooked. If your Tricon system uses the TRICONEX Communication Module (TCM) or a Tricon Enhanced Intelligent Communication Module (EICM) for Modbus, HART, or proprietary TriStation protocol connectivity, these modules should be inspected for firmware currency and connector integrity during the same turnaround. A communication module failure can isolate the Tricon controller from the DCS or SCADA layer, creating an operational blind spot even when the safety logic itself remains functional.

For facilities managing aging Tricon installations, it is also worth auditing the condition of the Tricon Main Chassis backplane and any installed Relay Output Modules (e.g., TRICONEX 3625 or 3664) that drive final control elements such as solenoid valves and motor starters. Relay contact wear is a time-dependent failure mode that is often underestimated in SIS maintenance planning. Pairing a 9563-810 termination panel order with a relay output module inspection — and stocking a spare relay module — closes a significant gap in your safety system’s reliability profile.

Finally, consider the role of signal isolators and surge protection devices installed between field instruments and the 9563-810 terminals. In environments with frequent lightning events or high-energy switching transients, these protective devices absorb damage that would otherwise reach the termination panel and the input module. Inspecting and replacing surge protection modules on a defined cycle — typically every three to five years — is a low-cost measure that significantly extends the service life of the 9563-810 and the broader Tricon I/O infrastructure.

Strategic Replacement Solutions

The TRICONEX 9563-810 is a legacy-compatible termination panel that allows facilities to maintain their existing Tricon TMR architecture without undertaking a full system migration. For plants operating Tricon systems installed in the 1990s or early 2000s, sourcing original spare parts like the 9563-810 is often the most cost-effective path to extending system life by an additional five to ten years — deferring a capital-intensive SIS upgrade until the next major plant lifecycle decision point.

Unlike generic aftermarket alternatives, the original 9563-810 maintains full mechanical and electrical compatibility with the Tricon chassis rear-panel connector system. This means no field modification, no re-termination of existing wiring, and no re-validation of the safety function — a critical advantage in regulated industries where any hardware change may trigger a Management of Change (MOC) review and partial proof test. Using an original spare eliminates the documentation burden associated with introducing a non-OEM component into a certified SIS.

For maintenance planners managing multiple Tricon systems across a facility or across multiple sites, establishing a centralized spare parts inventory that includes the 9563-810 alongside compatible digital output termination panels, analog input termination panels, and communication modules creates a resilient supply chain buffer. Mean Time To Repair (MTTR) for Tricon-based safety systems is directly correlated with spare parts availability — facilities with on-site spares consistently achieve corrective maintenance completion within a single shift, while those relying on spot procurement face lead times of days to weeks.

TOPNLMS maintains stock of the 9563-810 and a broad range of compatible Tricon TMR components, enabling consolidated procurement that reduces per-unit shipping costs and simplifies supplier qualification. All units are shipped with pre-shipment test documentation and are covered by a 12-month warranty against manufacturing defects and functional failure.
