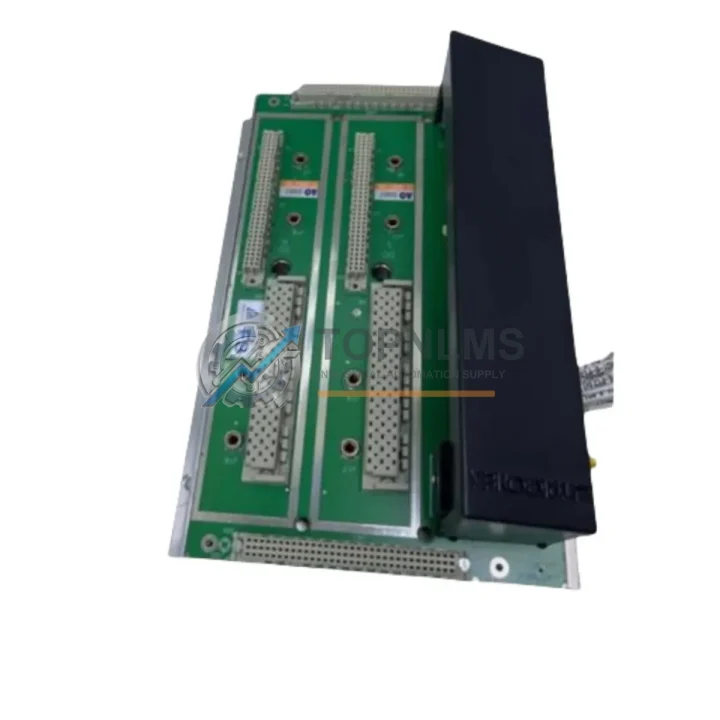

Triconex 7400221-100 Replacement for Tricon TMR

Product Overview

Triconex 7400221-100 Replacement for Tricon TMR: Smooth Migration & Legacy System Upgrade

The Triconex 7400221-100 is a Digital I/O Baseplate designed for the Tricon Triple Modular Redundant (TMR) Safety System — one of the most widely deployed safety-instrumented system (SIS) platforms in oil & gas, petrochemical, power generation, and continuous process industries. As aging Tricon systems approach end-of-life or as facilities undertake control system modernization programs, sourcing a verified replacement or upgrade-compatible 7400221-100 baseplate is a critical procurement decision that directly impacts plant safety, uptime, and regulatory compliance.

This listing provides a tested, in-stock 7400221-100 Digital I/O Baseplate suitable for direct replacement in existing Tricon chassis configurations. Whether your facility is executing a like-for-like swap of a failed or degraded baseplate, consolidating spare parts inventory ahead of a scheduled turnaround, or migrating from an older Tricon v9 or v10 chassis to a current-generation Tricon CX or Tricon v11 architecture, this module is sourced, inspected, and shipped from our Xiamen warehouse with a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Tricon system migration or baseplate replacement rarely involves a single component in isolation. In practice, facilities upgrading or maintaining a Tricon TMR safety system will typically address several interdependent modules and accessories in the same maintenance window or modernization project.

When replacing the 7400221-100 Digital I/O Baseplate, engineers commonly audit the associated Triconex 3703E Digital Output Module or 3805E Digital Input Module seated in the baseplate slots, since baseplate degradation often correlates with I/O module wear in high-cycle or high-temperature environments. The Triconex 3000212-100 Main Chassis and 3000110-100 Expansion Chassis are frequently evaluated in parallel, particularly when the baseplate replacement is part of a broader chassis refresh or rack consolidation effort.

Power integrity is equally critical in TMR architectures. The Triconex 8312 Power Supply Module should be verified for output stability whenever a baseplate is replaced, as power rail anomalies are a common root cause of baseplate and I/O module failures. For facilities running the Triconex 4351B Communication Module or 4119A Hiway Gateway for DCS integration via Modbus or HART, confirming backplane communication continuity after baseplate installation is a standard commissioning step.

Programming and configuration access during the swap requires a functional TriStation 1131 programming workstation connected via the Triconex 4329 Serial Communication Cable or equivalent USB-to-serial adapter. For sites transitioning to Tricon CX, the Triconex 3008 Main Processor Module may also be part of the upgrade scope, enabling enhanced diagnostics and expanded I/O capacity while retaining existing field wiring and terminal panel infrastructure.

Signal conditioning between legacy field devices and the new baseplate configuration may require Pepperl+Fuchs or MTL signal isolators where intrinsic safety barriers need recertification after hardware changes. All of these components are available through TOPNLMS with the same 12-month warranty and pre-shipment testing protocol.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing the 7400221-100 baseplate?
A: No. The 7400221-100 uses the same field terminal panel (FTP) ribbon cable interface as previous Tricon Digital I/O Baseplates. Field wiring connected to the FTP remains undisturbed. Only the baseplate itself is swapped, and the FTP reconnects to the new unit identically.

Q: Will my existing TriStation 1131 safety program require modification?
A: For a like-for-like baseplate replacement within the same Tricon TMR chassis, no program changes are required. The TriStation 1131 project references I/O module addresses by chassis slot, not by baseplate revision. Confirm slot addressing in your I/O configuration after installation as a standard commissioning check.

Q: Is the 7400221-100 compatible with both Tricon v10 and v11 main processors?
A: Yes. The 7400221-100 Digital I/O Baseplate is compatible with Tricon TMR systems running v9, v10, and v11 main processor modules. The Tribus backplane communication protocol is consistent across these generations, ensuring transparent integration without firmware or configuration changes.

Q: How much physical space does the replacement require in the control cabinet?
A: The 7400221-100 is a direct form-factor replacement. It occupies the same chassis slot width and depth as the original unit. No panel cutout modification, DIN rail adjustment, or cable management change is required. Verify chassis slot availability if adding a baseplate to an expansion chassis rather than replacing an existing one.

Q: What communication protocols are supported for DCS integration after the baseplate swap?
A: The baseplate itself is a passive backplane component and does not independently handle communication protocols. DCS integration protocols — including Modbus RTU, Modbus TCP, and HART — are managed by the Triconex communication modules (e.g., 4351B, 4119A) seated in the main chassis. These are unaffected by a baseplate replacement in the I/O expansion chassis.

Q: Can this unit be used as a cold standby spare?
A: Yes. The 7400221-100 is suitable for cold standby inventory. TOPNLMS ships all units in anti-static packaging with individual test records. Recommended storage conditions are 0–40°C, <85% RH non-condensing, consistent with Triconex spare parts storage guidelines.

Warranty Assurance

Every Triconex 7400221-100 Digital I/O Baseplate shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes functional verification of backplane connector integrity, visual inspection for physical damage, and confirmation of module identification data. Units that do not pass inspection are not listed or shipped.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1 business day. Replacement units are dispatched from our Xiamen warehouse via DHL Express or equivalent international courier, with tracking provided at time of shipment. We do not require the original unit to be returned before dispatching a replacement in confirmed warranty cases, minimizing your plant downtime exposure.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Lead time for in-stock units is typically 3–5 business days to most international destinations. Expedited shipping is available on request.

TOPNLMS has been supplying industrial automation spare parts — including Triconex, Rockwell Automation, Siemens, ABB, and Emerson DeltaV components — to maintenance and engineering teams across Asia, the Middle East, and Europe since 2015. Our focus is on verified, traceable parts with documented warranty support, not gray-market or untested surplus.
