Triconex 7400219-040 REV B1 Original Industrial Spare Tricon Compatible

Product Overview

Triconex 7400219-040 REV B1 Original Industrial Spare: Tricon TMR System Stability & Maintenance Value

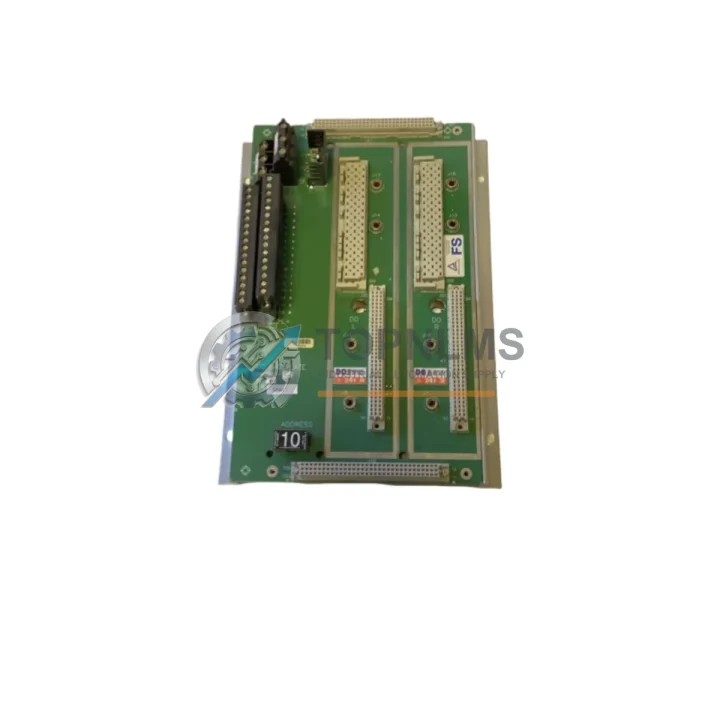

The Triconex 7400219-040 REV B1 is an original communication module base plate engineered for the Tricon Triple Modular Redundancy (TMR) Safety System — one of the most widely deployed safety-rated control architectures in oil & gas, petrochemical, power generation, and continuous process industries. As a critical structural and electrical interface component, this base plate provides the physical mounting and backplane connectivity for Tricon communication modules, ensuring uninterrupted signal routing between the TMR controller chassis and field communication networks.

For maintenance engineers managing aging Tricon installations, sourcing a verified original 7400219-040 REV B1 is not merely a parts procurement task — it is a system integrity decision. A degraded or counterfeit base plate introduces latent failure risk into a safety-critical loop, potentially compromising SIL-rated protection functions. TOPNLMS supplies only original, tested units with full traceability, backed by a 12-month warranty and pre-shipment functional verification.

Critical Technical Specs

Preventive Maintenance Strategy for Tricon TMR Systems

A scheduled maintenance window on a Tricon TMR safety system is the optimal time to audit not just the communication base plate, but the entire communication and I/O infrastructure surrounding it. The 7400219-040 REV B1 sits at the intersection of the controller chassis and the communication network — meaning any degradation in adjacent components can accelerate wear on the base plate connectors or mask communication faults that appear intermittent.

During a planned outage or annual SIS inspection, maintenance teams should simultaneously evaluate the Triconex 4351B or 4352B Tricon Communication Module (TCM) that seats into this base plate, as connector fatigue between the module and base plate is a common root cause of sporadic network dropouts. If the TCM shows firmware version drift or physical pin wear, replacing both the module and base plate together eliminates the most common failure mode in a single intervention.

The Triconex 3703E or 3721 Digital Input Modules in the same chassis should be inspected for field wiring terminal integrity and LED status consistency. Alongside these, the Triconex 3805E Analog Output Module and 3703E Digital Output Module are frequent candidates for proactive replacement in systems exceeding 10 years of continuous operation. Pairing base plate replacement with a full I/O module audit reduces the probability of a secondary unplanned shutdown within the same maintenance cycle.

Power distribution within the Tricon chassis also warrants attention. The Triconex 8312 or 8110 Power Supply Module should be load-tested during the same window — a marginal power supply operating near its derating curve can cause intermittent resets that are misdiagnosed as communication faults originating from the base plate. Inspecting the Tricon chassis backplane for oxidation on the edge connectors and verifying torque on all terminal blocks and Triconex field termination assemblies (FTAs) completes the mechanical integrity check.

For facilities running Tricon systems integrated with Modbus, HART, or Profibus field networks, the Triconex 4119A or 4351B communication modules and their associated network termination resistors and shielded communication cables should be verified for continuity and shielding integrity. A corroded cable shield or a loose termination resistor can introduce noise that mimics base plate failure in diagnostic logs, leading to unnecessary module swaps and extended troubleshooting time.

Finally, for sites managing spare parts inventory, stocking a Triconex 3008 Main Processor Module alongside the 7400219-040 base plate provides a comprehensive safety net for the most failure-critical positions in the Tricon chassis. Coordinated spare parts planning — covering processor, communication, I/O, and power modules — is the most cost-effective strategy for minimizing mean time to repair (MTTR) in SIS environments where every hour of unplanned downtime carries significant operational and safety risk.

Strategic Replacement Solutions

The Triconex 7400219-040 REV B1 is a direct OEM replacement for earlier REV A and REV A1 variants of the same base plate. Facilities upgrading from legacy Tricon v9 configurations to v10 or v11 firmware environments can install this REV B1 unit without chassis modification, preserving the existing wiring infrastructure and avoiding costly re-engineering of the safety loop. This backward compatibility is a key procurement advantage for sites operating under change management constraints that limit the scope of approved modifications.

For plants managing end-of-life Tricon systems where Triconex OEM support has been discontinued, sourcing original spare units from specialist industrial distributors like TOPNLMS extends the operational life of the installed system by 3–7 years without requiring a full DCS migration. This approach is particularly valuable in brownfield facilities where the cost and schedule risk of a full safety system replacement outweighs the investment in a curated spare parts strategy.

All units supplied by TOPNLMS are inspected, tested, and shipped with documentation supporting your maintenance records. Lead time is typically 3–7 business days for in-stock units, with expedited options available for emergency shutdowns.

Support FAQ

Q1: Is the 7400219-040 REV B1 compatible with all Tricon TMR chassis versions?
The REV B1 base plate is compatible with Tricon v9, v10, and v11 TMR chassis configurations. It is a direct replacement for REV A and REV A1 variants. For Trident or TriGP systems, a different base plate part number is required — contact us to confirm compatibility before ordering.

Q2: What pre-shipment testing is performed on this unit?
Every unit undergoes functional verification prior to dispatch, including connector integrity checks, backplane interface testing, and visual inspection for physical damage, corrosion, or component anomalies. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.

Q4: Can I order this base plate as part of a broader Tricon spare parts kit?
Yes. TOPNLMS supports consolidated spare parts orders covering multiple Tricon modules, I/O cards, power supplies, and communication components in a single shipment. Consolidated orders reduce per-unit freight costs and simplify incoming inspection. Contact our team to discuss a tailored spare parts package for your site’s Tricon configuration.
