TRICONEX 7400213-100 Ruggedized TMR CPU for Harsh Environments

Product Overview

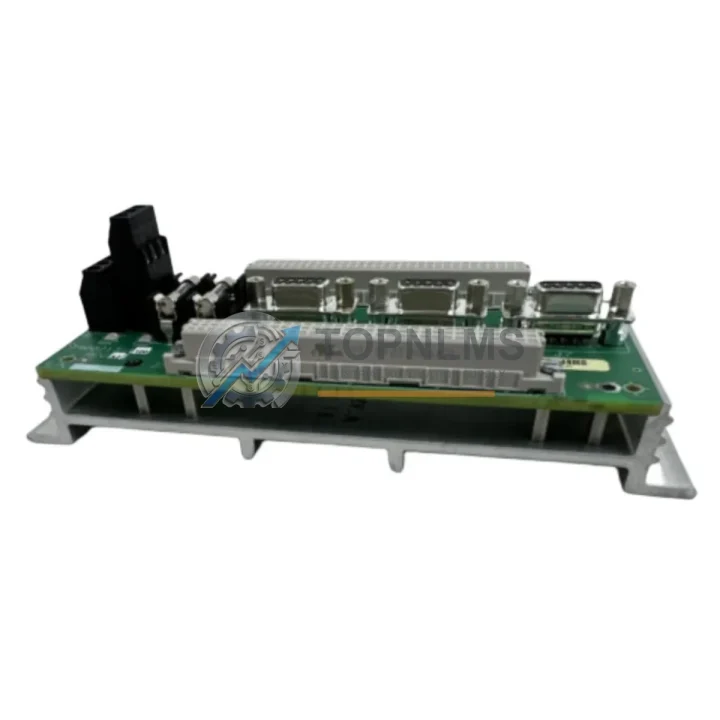

TRICONEX 7400213-100 Ruggedized TMR CPU Module for Harsh Environments

The TRICONEX 7400213-100 is a Triple Modular Redundant (TMR) Central Processing Unit designed for the Tricon Safety System platform — one of the most trusted Safety Instrumented System (SIS) architectures deployed across critical industrial infrastructure worldwide. Engineered to deliver continuous, fault-tolerant control in the most demanding environments, this CPU module maintains full SIL 3 integrity even under conditions of extreme temperature variation, high humidity, persistent vibration, electromagnetic interference, and airborne particulate contamination.

In high-stakes industrial facilities — including offshore oil and gas platforms, onshore refineries, LNG terminals, chemical processing plants, and nuclear power stations — the 7400213-100 serves as the computational backbone of the Tricon safety loop. Its TMR architecture operates three independent processing channels simultaneously, with a fault-tolerant voter circuit that detects and isolates any single-channel failure without interrupting the safety function. This design ensures that even in the event of a hardware fault, the system continues to execute its Emergency Shutdown (ESD) or High Integrity Pressure Protection System (HIPPS) logic without interruption — a critical requirement in environments where a control failure could result in catastrophic loss of containment or personnel injury.

The module is fully compatible with the broader Tricon system architecture, including the TRICONEX 7400048-100 Main Chassis, TRICONEX 4351B Digital Input Modules, TRICONEX 4119A Analog Input Modules, and TRICONEX 4210 Digital Output Modules. When integrated with the TRICONEX 4609 Communication Module, the 7400213-100 supports MODBUS RTU and TCP/IP protocols, enabling seamless data exchange with DCS platforms, SCADA systems, and historian servers. For facilities running Schneider Electric’s Safety Instrumented System architecture, this CPU is also compatible with the TRICONEX 3008 Main Processor and TRICONEX 3700A Enhanced Intelligent Communication Module (EICM), ensuring backward compatibility across legacy and modern Tricon deployments.

In power generation facilities, the 7400213-100 is routinely deployed to manage turbine overspeed protection, boiler safety interlocks, and generator protection logic — applications where response time and deterministic execution are non-negotiable. In water treatment and wastewater management plants, it governs chemical dosing interlocks and pump protection systems that must remain operational 24 hours a day, 365 days a year. In metallurgical and heavy industrial environments, the module withstands the intense electromagnetic interference generated by large variable frequency drives (VFDs), arc furnaces, and high-current bus systems, maintaining signal integrity across all three processing channels without requiring additional shielding.

The 7400213-100 is also a proven replacement component for aging Tricon installations where the original CPU has reached end-of-life or has been flagged during a functional safety audit. As a direct form-fit-function replacement, it eliminates the need for costly system redesign or re-engineering, allowing maintenance teams to restore full SIL 3 capability with minimal downtime. TOPNLMS maintains verified stock of this module, sourced from controlled supply chains, and subjects each unit to functional verification testing prior to shipment — ensuring that every 7400213-100 delivered to site is ready for immediate installation and commissioning.

Rugged Specifications Table

Comprehensive Protection Solutions

The 7400213-100 CPU does not operate in isolation — it is the control nucleus of a fully integrated safety architecture. In a typical Tricon safety loop, the CPU works in concert with the TRICONEX 4351B Digital Input Module, which collects field signals from pressure transmitters, temperature sensors, and gas detectors, and the TRICONEX 4210 Digital Output Module, which drives solenoid valves, shutdown relays, and alarm annunciators. Analog process variables are conditioned and delivered to the CPU via the TRICONEX 4119A Analog Input Module, which provides galvanic isolation and signal filtering to reject common-mode noise from field wiring in electrically noisy environments.

For facilities requiring high-speed serial or Ethernet-based integration with DCS platforms or SCADA systems, the TRICONEX 4609 Communication Module provides the necessary protocol gateway functionality, while the TRICONEX 3700A Enhanced Intelligent Communication Module supports advanced peer-to-peer communication between Tricon nodes in large, distributed safety architectures. In installations where the Tricon system must interface with Schneider Electric’s Foxboro DCS or a third-party historian, the communication modules ensure deterministic, low-latency data exchange without compromising the integrity of the safety execution cycle.

Power integrity is maintained through Tricon’s redundant 24VDC power supply modules, which provide hot-swappable power redundancy — ensuring that a power supply failure does not propagate to the CPU or I/O modules. Terminal modules and marshalling panels within the control cabinet provide the physical interface between field wiring and the Tricon I/O backplane, with surge protection and terminal isolation features that protect the CPU from transient overvoltage events caused by lightning strikes or switching surges on long field cable runs.

Application in Critical Infrastructure

In oil and gas production environments — including wellhead control panels, pipeline compressor stations, and offshore platform process shutdown systems — the TRICONEX 7400213-100 executes Emergency Shutdown (ESD) logic that isolates hydrocarbon inventories within seconds of a detected process exceedance. Its TMR architecture ensures that a single CPU channel failure does not result in a spurious trip, which in a continuous production environment can cost hundreds of thousands of dollars per hour in lost throughput.

In power generation facilities, the module governs turbine protection systems where overspeed events must be detected and acted upon within milliseconds. The deterministic scan cycle of the Tricon CPU ensures that protection logic is executed with consistent timing, regardless of the complexity of the safety program or the number of I/O points being monitored.

In mining and metallurgical operations, where high-current electrical equipment generates intense electromagnetic fields and mechanical vibration is a constant environmental factor, the 7400213-100’s robust hardware design and EMC-compliant signal processing ensure reliable operation without nuisance faults or communication errors. Conveyor belt protection systems, crusher interlock logic, and smelter safety shutdowns all benefit from the module’s proven resilience in electrically and mechanically harsh environments.

In water and wastewater treatment plants, where continuous operation is mandated by public health regulations, the module provides the fault-tolerant control backbone for chemical dosing interlocks, pump protection systems, and overflow prevention logic — applications where a control system failure could result in regulatory violations or environmental incidents.

Security & Quality FAQ

Q1: What warranty coverage is provided with the TRICONEX 7400213-100?
All TRICONEX 7400213-100 modules supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the module’s published specifications. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize site downtime.

Q2: How is each module tested before shipment?
Every 7400213-100 unit undergoes a structured functional verification process prior to dispatch. This includes power-on self-test validation, communication interface checks, and where applicable, channel-level TMR voting verification. Units that do not pass all test criteria are quarantined and not offered for sale. Test records are available upon request for customers with documented quality assurance requirements.

Q3: Is the 7400213-100 compatible with my existing Tricon system version?
The 7400213-100 is designed for use within the Tricon TMR Safety System platform and is compatible with standard Tricon chassis and I/O configurations. Compatibility with specific firmware versions or TriStation programming environments should be confirmed against your site’s system documentation. Our technical team can assist with compatibility verification prior to purchase — contact us with your system version details.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains ongoing stock of the TRICONEX 7400213-100 and other Tricon platform components to support both emergency replacement and planned maintenance programs. We work with industrial facilities that require reliable, repeatable supply of safety-critical spare parts, and we can accommodate blanket purchase orders, consignment arrangements, and priority allocation agreements for high-volume customers.
