Triconex 7400169-310 9662-1XX Replacement for Tricon SIS

Product Overview

Triconex 7400169-310 9662-1XX Replacement for Tricon SIS: Smooth Migration & Legacy System Upgrade

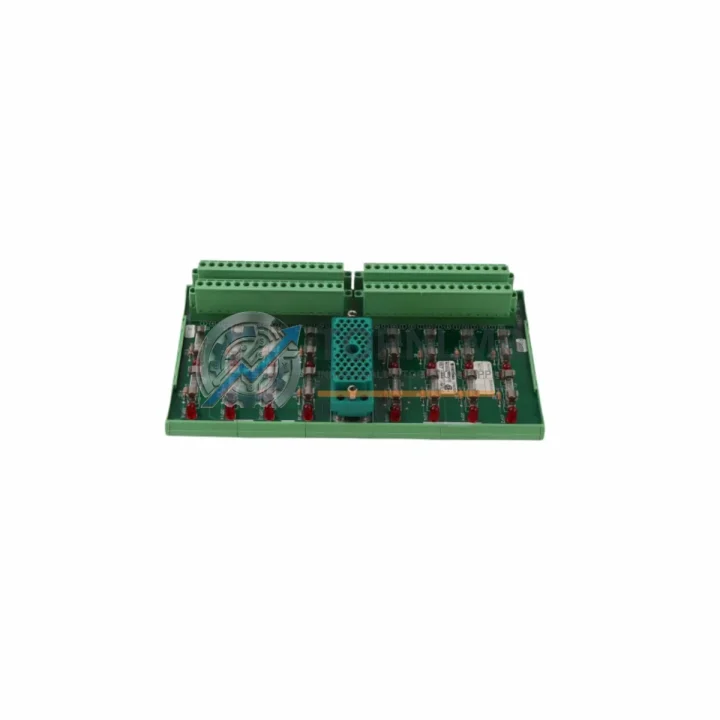

The Triconex 7400169-310 / 9662-1XX Field Wiring Termination Panel is a critical interface component within the Tricon Safety Instrumented System (SIS) platform. As aging Tricon systems approach end-of-life or as plant operators seek to consolidate spare-parts inventory, sourcing a verified replacement for the 7400169-310 / 9662-1XX becomes a top priority. TOPNLMS maintains ready stock of this termination panel, fully tested and shipped from Xiamen, China, with a 12-month warranty — enabling your engineering team to execute a seamless field replacement with minimal process interruption.

The 9662-1XX termination panel family serves as the physical wiring interface between field instruments and the Tricon main chassis. It accepts standard 0.5 mm² to 2.5 mm² field cables via screw-clamp terminals, preserving existing field wiring without re-termination. The panel mounts directly to the Tricon I/O chassis backplane, maintaining the same DIN-rail footprint and panel-cutout dimensions as the original Schneider Electric / Invensys Triconex design. This dimensional compatibility is essential when working within existing control-cabinet layouts where space is constrained and cable trays are already routed.

When migrating from an older Tricon v9 or v10 system to a current Tricon CX or Tricon TMR architecture, the 7400169-310 / 9662-1XX termination panel is frequently retained as part of a phased upgrade strategy. Engineers can replace the Tricon main processor module — such as the Triconex 3008 Main Processor or the Triconex 3006 Enhanced Intelligent Bridge Module — while keeping the existing field wiring termination infrastructure intact. This approach dramatically reduces re-wiring labour costs and the risk of introducing wiring errors during a live-plant turnaround.

Communication protocol compatibility is another key consideration. The Tricon SIS platform communicates with the DCS layer via Triconex TriStation 1131 programming software over a dedicated Tricon Communication Module (TCM). When replacing the 7400169-310 / 9662-1XX panel, no changes to the TriStation 1131 program logic or I/O mapping are required, provided the replacement panel is of the same revision family. The field I/O signals — typically 4–20 mA analogue inputs, discrete 24 VDC inputs, and relay outputs — are passed through identically, preserving the existing HART signal path where applicable.

Power supply compatibility is straightforward: the 9662-1XX panel draws its operating power from the Tricon chassis backplane, which is fed by the Triconex 8312 Power Supply Module or equivalent redundant power supply units. No separate 24 VDC field power wiring to the termination panel itself is required, simplifying the replacement procedure. Engineers should verify that the chassis power budget remains within specification after any concurrent module additions.

For sites performing a broader SIS modernisation — for example, replacing a legacy Triconex 3700A Enhanced Intelligent Bridge or retiring a Triconex 3625 Digital Output Module — the 7400169-310 / 9662-1XX termination panel can be retained in service while upstream logic modules are swapped. This modular replacement philosophy is central to the Tricon TMR (Triple Modular Redundant) architecture, where individual modules can be hot-swapped without de-energising the field loop, subject to site safety procedures and permit-to-work requirements.

Installation and commissioning of the replacement panel follows the standard Triconex field wiring procedure. Terminal numbering on the 9662-1XX is consistent with Triconex documentation reference TriStation 1131 Developer’s Workbench and the relevant I/O module installation guide. Technicians should photograph existing wiring before removal, verify terminal torque to 0.5 N·m, and perform a loop-check against the I/O module channel list before returning the SIS to service. Where a Triconex 3703E Analogue Input Module or Triconex 3664 Digital Input Module is connected to the termination panel, the loop-check procedure should include a full HART device descriptor verification to confirm signal integrity.

TOPNLMS ships the Triconex 7400169-310 / 9662-1XX from bonded warehouse stock in Xiamen. Standard lead time is 3–7 business days for international air freight. Each unit undergoes pre-shipment functional testing and is packed in anti-static ESD packaging with a serialised test report. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Expedited shipping options are available for emergency plant shutdowns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Tricon SIS migration rarely involves a single component. When replacing the 7400169-310 / 9662-1XX termination panel, engineering teams typically address several adjacent components in the same work order to maximise the value of the planned outage window. The Triconex 3008 Main Processor Module is a common concurrent replacement, particularly on v9 systems where processor firmware is no longer supported. The Triconex 8312 Power Supply Module should be inspected and replaced if capacitor age is a concern, as power supply degradation is a leading cause of nuisance SIS trips. For sites with analogue field instruments, the Triconex 3703E Analogue Input Module paired with the 9662-1XX termination panel provides a fully verified signal chain from field transmitter to safety logic solver.

Digital I/O upgrades are equally important. The Triconex 3664 Digital Input Module and Triconex 3625 Digital Output Module are frequently replaced alongside the termination panel to eliminate age-related contact wear and ensure consistent voting logic across all three TMR legs. Where the existing system uses a Triconex 3006 Enhanced Intelligent Bridge Module for DCS integration, verifying its firmware revision compatibility with the replacement termination panel is recommended before commissioning. For sites requiring a programming interface during the upgrade, the Triconex TriStation 1131 programming cable (RS-232 to Tricon port) should be on hand to allow live program verification without interrupting the safety function. Finally, where signal isolation between the SIS and the basic process control system (BPCS) is required, a DIN-rail mounted signal isolator — such as a Phoenix Contact or Pepperl+Fuchs HART-transparent isolator — is commonly installed at the termination panel level to meet IEC 61511 separation requirements.

Retrofit Guidance FAQ

Q: Can I replace the 7400169-310 / 9662-1XX without re-wiring the field cables?
A: Yes. The screw-clamp terminal layout and numbering are identical to the original panel. Photograph existing wiring, remove the old panel, install the replacement, and re-terminate using the same terminal numbers. A loop-check is required before returning to service.

Q: Will my TriStation 1131 program require modification?
A: No. The termination panel is a passive wiring interface. The I/O channel mapping in TriStation 1131 is defined by the I/O module, not the termination panel. No program changes are required.

Q: Is the replacement panel compatible with HART field devices?
A: Yes. The 9662-1XX passes the HART signal transparently. Existing HART device descriptors and AMS/SNAP-ON configurations remain valid.

Q: What is the physical installation space requirement?
A: The replacement panel has the same DIN-rail footprint and backplane connector as the original. No cabinet modifications are required.

Q: Can this panel be hot-swapped while the SIS is in service?
A: Hot-swap capability depends on your site safety procedures and the specific Tricon chassis revision. Consult your Triconex system documentation and obtain a permit-to-work before any live-system intervention.

Q: What communication protocols are supported?
A: The termination panel itself is protocol-agnostic. The Tricon system communicates via the Tricon Communication Module (TCM) using Modbus TCP, OPC, or proprietary Triconex protocols — all of which remain unaffected by a termination panel replacement.

Warranty Assurance

Every Triconex 7400169-310 / 9662-1XX unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes functional verification of all terminal connections, backplane connector integrity, and visual inspection for physical damage. A serialised test report accompanies each shipment. In the event of a warranty claim, TOPNLMS provides a replacement unit within 5 business days of fault confirmation, with return freight covered for verified manufacturing defects. Our procurement team is available via email and phone to support urgent plant requirements, provide documentation for site approval processes, and coordinate expedited shipments for emergency shutdowns.
