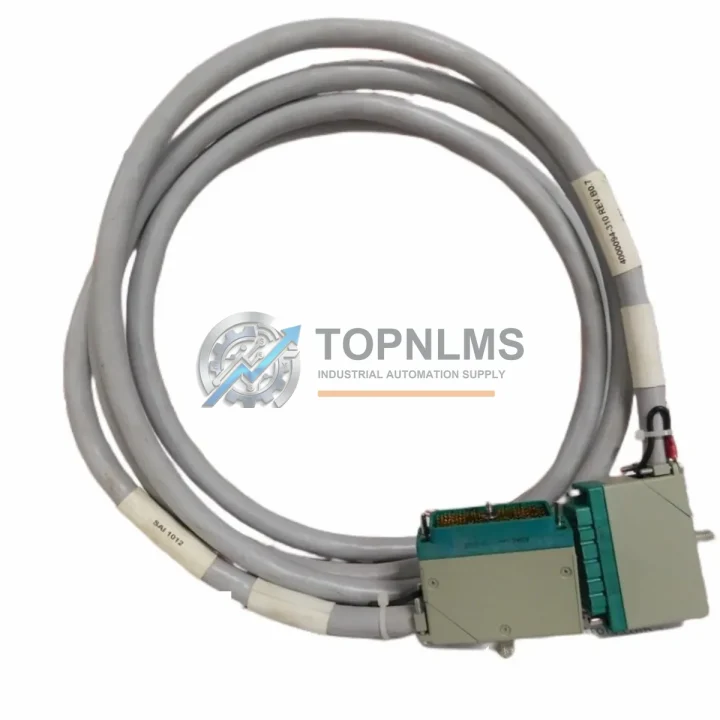

TRICONEX 4000094-310 Ruggedized Output Cable Assembly

Product Overview

TRICONEX 4000094-310 Ruggedized Output Cable Assembly: Industrial Resilience for Harsh Environments

The TRICONEX 4000094-310 is a ruggedized output cable assembly engineered specifically for the Tricon TMR (Triple Modular Redundancy) Safety Controller platform — one of the most trusted safety-rated control architectures deployed across critical industrial infrastructure worldwide. Designed to maintain signal integrity and mechanical reliability under extreme operating conditions, the 4000094-310 is the preferred interconnect solution for engineers managing safety instrumented systems (SIS) in environments where failure is not an option.

Unlike standard cable assemblies, the 4000094-310 is built to withstand the cumulative stress of high ambient temperatures, elevated humidity, airborne particulates, continuous mechanical vibration, and electromagnetic interference (EMI) — conditions routinely encountered in oil and gas processing facilities, petrochemical plants, offshore platforms, power generation stations, and heavy metallurgical operations. Its shielded construction and precision-terminated connectors ensure that output signals from the Tricon main chassis remain clean, stable, and fully compliant with IEC 61511 functional safety requirements throughout the cable’s service life.

In a Tricon TMR architecture, the 4000094-310 output cable assembly serves as the critical physical link between the Tricon Output Modules — such as the DO3000 digital output module or the AO3000 analog output module — and the field termination assemblies or marshalling panels in the control cabinet. Maintaining this connection with a properly rated, OEM-specified cable assembly is essential to preserving the TMR voting logic integrity that defines the Tricon platform’s SIL 3 capability.

Field engineers frequently pair the 4000094-310 with the Tricon 3700A Main Chassis and associated 3008 Enhanced Main Processor during system expansions or partial retrofits. When replacing aging cable assemblies in legacy installations, it is common to simultaneously inspect and replace the 4000094-210 and 4000094-110 cable variants that serve input and communication backplane connections, ensuring the entire interconnect infrastructure is refreshed in a single planned maintenance window — minimizing total system downtime.

The 4000094-310 is also routinely deployed alongside Tricon Communication Modules (TCM) and Triconex TriStation 1131 programming workstations during system commissioning and re-commissioning activities. When the control cabinet layout requires reconfiguration — for example, when integrating a new TSAA (Tricon Safety Application Architecture) segment or adding a remote I/O expansion node — the 4000094-310 provides the mechanical flexibility and electrical performance needed to adapt the physical wiring without compromising the validated safety logic.

In power generation and water treatment facilities, where continuous operation is mandated and scheduled outages are measured in hours rather than days, having a verified spare 4000094-310 in the site’s critical spares inventory is standard practice. Procurement teams managing Triconex Tricon and Trident platform assets consistently include this cable assembly in their annual spare parts review, alongside items such as the 3625 Power Supply Module and 3805E Enhanced Intelligent Communication Module, to ensure rapid swap capability without waiting on lead times.

At TOPNLMS, every 4000094-310 unit is sourced from verified supply channels, subjected to pre-shipment functional inspection, and shipped with full traceability documentation. Our technical team can provide compatibility confirmation against your specific Tricon chassis revision and software version prior to order placement.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable Tricon TMR safety system depends on the integrity of every component in the control cabinet. The 4000094-310 output cable assembly is most effective when the surrounding system components are equally robust. Engineers specifying this cable assembly typically also evaluate the Tricon 3700A Main Chassis for structural integrity, the 3008 Enhanced Main Processor for processing redundancy, and the 3625 Power Supply Module for stable, conditioned power delivery to all I/O modules.

On the communication side, the 3805E Enhanced Intelligent Communication Module and Tricon Communication Module (TCM) provide the network backbone that links the safety controller to the DCS or SCADA layer — and their cable connections must be equally well-maintained. For field termination, Tricon Field Termination Assemblies (FTAs) and associated marshalling terminal blocks complete the signal path from the 4000094-310 to the process instrumentation. In hazardous area installations, Zener barrier modules and galvanic isolators are frequently installed in series with the output signal path to provide intrinsic safety protection, making the mechanical and electrical quality of the output cable assembly even more critical to overall system performance.

Application in Critical Infrastructure

The TRICONEX 4000094-310 is deployed across the most demanding sectors of industrial infrastructure. In oil and gas upstream and midstream operations, it connects Tricon safety controllers to emergency shutdown (ESD) valve actuators and high-integrity pressure protection systems (HIPPS), where signal fidelity directly determines the speed and reliability of safety response. In LNG liquefaction and regasification terminals, the cable assembly must perform reliably across wide temperature swings and in the presence of cryogenic process equipment.

In power generation — including coal, gas turbine, and nuclear auxiliary systems — the 4000094-310 supports turbine trip logic and boiler protection systems where millisecond-level response is required. Mining and mineral processing operations rely on it to maintain conveyor interlock and crusher protection logic in environments with extreme dust loading and mechanical shock. Water and wastewater treatment facilities use it to connect chlorination dosing controls and pump protection systems, where continuous uptime is a public health requirement. In steel and aluminum smelting, the cable assembly must tolerate radiated heat and electromagnetic noise from induction furnaces and large variable frequency drives (VFDs) operating in close proximity to the control cabinet.

Security & Quality FAQ

Q1: What warranty coverage is provided with the TRICONEX 4000094-310?
Every unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment inspection is performed on each unit, and replacement support is available throughout the warranty period with a committed response time.

Q2: How is compatibility with my specific Tricon chassis revision confirmed?
Our technical team reviews your Tricon system revision level, chassis model, and installed software version (TriStation 1131) prior to shipment. The 4000094-310 is compatible across the primary Tricon TMR chassis generations, but we confirm the exact fit for your configuration before dispatch to eliminate field incompatibility risk.

Q3: What pre-shipment testing is performed on each unit?
Each 4000094-310 undergoes visual inspection for connector integrity, shielding continuity verification, and dimensional conformance check against OEM specifications. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of Triconex Tricon platform components including cable assemblies, I/O modules, power supplies, and communication modules to support multi-year maintenance contracts. Customers managing large Tricon installed bases can arrange framework agreements for priority allocation and reserved stock.
