TRICONEX 3806E Replacement Solution for Tricon Series

Product Overview

TRICONEX 3806E Replacement Solution for Tricon Series: Smooth Migration from Legacy TMR Systems

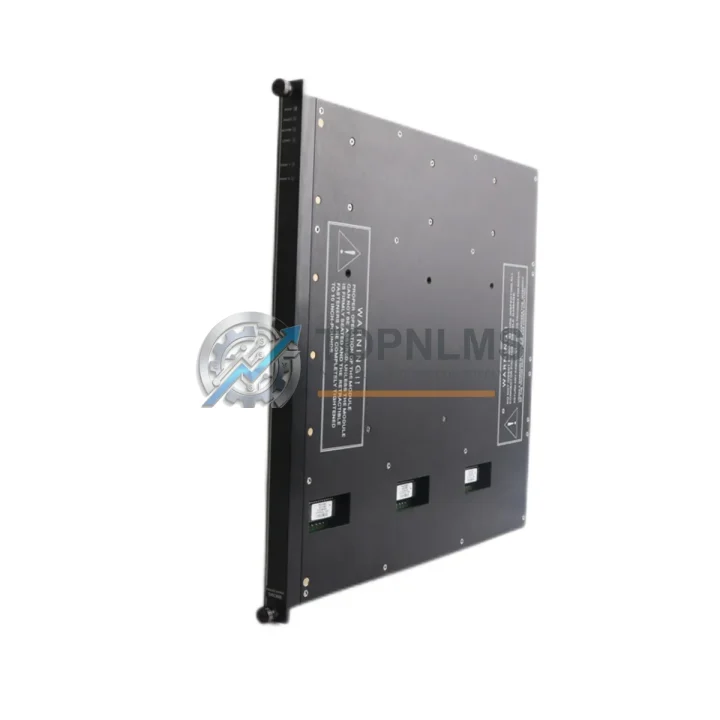

The TRICONEX 3806E is a high-density Analog Input Module designed for the Tricon Triple Modular Redundant (TMR) Safety Instrumented System, rated to SIL 3 under IEC 61511. As Schneider Electric progressively phases out legacy Tricon hardware, facilities running older Tricon v9 or v10 chassis configurations face increasing pressure to source reliable replacement modules before end-of-life support windows close. TOPNLMS maintains verified stock of the 3806E to support your migration timeline — whether you are executing a like-for-like swap, a partial system refresh, or a full safety system modernization project.

The 3806E provides 16 channels of analog input, accepting 4–20 mA signals from field transmitters including pressure, temperature, flow, and level instruments. Each channel is individually isolated and processed through the TMR voting architecture, ensuring that a single-channel fault does not compromise the safety function. This makes the module a direct fit for critical applications in oil and gas, petrochemical, power generation, and offshore platform environments where SIL 3 integrity must be maintained without interruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Tricon system migration rarely involves a single module. In practice, engineers replacing the 3806E as part of a broader safety system refresh will also need to address adjacent components in the same chassis or control cabinet. The Tricon Power Module (e.g., 8312) must be verified for adequate current capacity when adding higher-density AI modules; if the existing power rail is marginal, a parallel power module should be installed before the 3806E swap. The Tricon Main Chassis itself — whether a 7-slot or 15-slot configuration — should be inspected for backplane connector wear, particularly in installations exceeding 10 years of continuous operation.

Field wiring connects to the 3806E via a dedicated Field Termination Assembly. If the existing FTA is a legacy model with corroded terminals or damaged ribbon cable connectors, replacing it concurrently with the AI module eliminates a common source of post-commissioning signal faults. For sites migrating from older Tricon Digital Input Modules (such as the 3501E or 3503E) to a mixed AI/DI configuration, the Tricon Communication Module (TCM, e.g., 4351B or 4352B) should be confirmed as firmware-compatible with the updated module set to ensure Modbus TCP or OPC DA polling continues without interruption.

Where the Tricon system interfaces with a DCS — such as a Foxboro I/A Series, Honeywell Experion PKS, or Emerson DeltaV — the gateway or Tricon Communication Module handles the handshake. Verifying that the TCM firmware version supports the TSAA or Modbus register map used by the DCS historian is a critical pre-migration step. Signal isolators installed between the Tricon FTA and field junction boxes should also be tested; units from brands such as MTL or P+F that have been in service for extended periods may introduce drift that becomes apparent only after the new 3806E module recalibrates its input baseline.

For facilities also upgrading their operator interface layer, the Tricon system’s serial or Ethernet port can be connected to modern HMI platforms. If the existing HMI is a legacy panel running iFIX or Wonderware InTouch on Windows XP-era hardware, the migration to the 3806E is an appropriate trigger point to also evaluate HMI hardware refresh, ensuring the full safety loop — from field transmitter through AI module, TMR voter, and operator display — is on supported, maintainable hardware.

Retrofit Guidance FAQ

Q: Can I replace the 3806E without modifying my TriStation 1131 program?
A: Yes. The 3806E is a direct slot replacement within the Tricon chassis. The module type is recognized automatically by the Tricon MP (Main Processor), and no program download is required for a like-for-like swap. If you are upgrading from an earlier AI module variant with a different channel count or signal range, a program revision and functional safety assessment will be necessary.

Q: Is the existing field wiring and FTA compatible?
A: In most cases, yes. The 3806E uses the same FTA connector standard as other Tricon AI modules. Verify the FTA part number against the 3806E installation manual to confirm ribbon cable compatibility before removal of the legacy module.

Q: What communication protocols does the 3806E support?
A: The 3806E itself communicates over the Tricon internal TMR backplane bus. External protocol support (Modbus TCP, TSAA, OPC) is handled by the Tricon Communication Module. No changes to external protocol configuration are required when replacing only the AI module.

Q: How much physical space does the 3806E require?
A: The 3806E occupies one standard Tricon module slot. No additional panel space or chassis modification is required. Ensure the adjacent slot is clear of obstructions to allow proper airflow and module locking tab engagement.

Q: What is the recommended procedure for hot-swap or online replacement?
A: The Tricon architecture supports online module replacement (OMR) under specific conditions. Consult the Tricon System Planning and Installation Guide and confirm with your safety engineer that the OMR procedure is approved under your site’s Management of Change (MOC) process before proceeding.

Warranty Assurance

Every TRICONEX 3806E shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify module identification, connector integrity, and firmware label consistency. Units that do not pass inspection are quarantined and not offered for sale.

In the event of a confirmed module defect within the warranty period, TOPNLMS will arrange a replacement unit and coordinate return logistics. Our technical support team is available to assist with installation questions, compatibility verification, and documentation requests — including certificate of conformance and test records where available.

We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available as standard options. Lead time for in-stock units is typically 1–3 business days from order confirmation. For urgent plant shutdowns or emergency maintenance windows, contact us directly to arrange priority dispatch.

TOPNLMS specializes in industrial automation components for safety-critical and process control applications. Our catalog covers Tricon, Trident, and Triconex ESD system hardware, as well as components for Allen-Bradley, Siemens, ABB, Honeywell, and Emerson control platforms.
