TRICONEX 3805EN Replacement Solution for Tricon Series

Product Overview

TRICONEX 3805EN Replacement Solution for Tricon Series: Seamless Transition & System Continuity

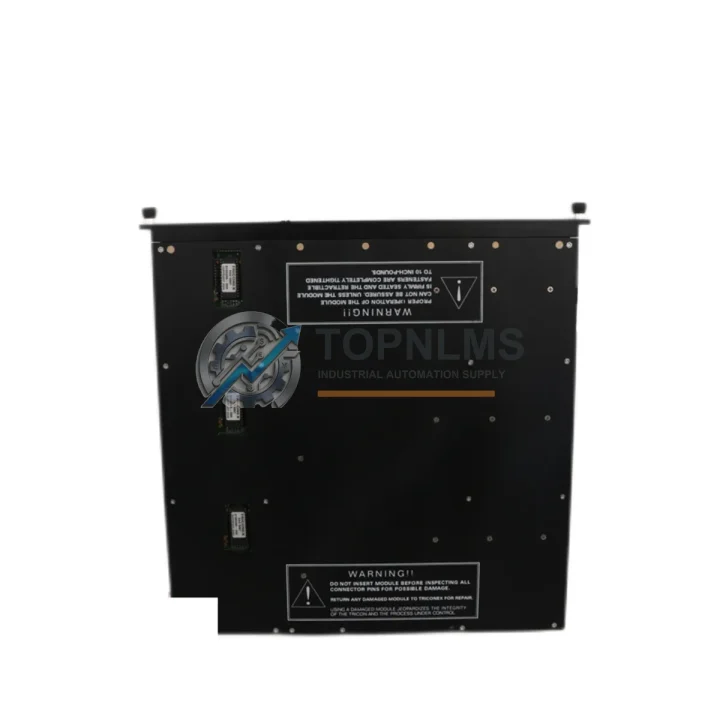

The TRICONEX 3805EN is a high-integrity analog output module engineered for the Tricon Triple Modular Redundant (TMR) safety system platform — one of the most widely deployed SIL 3–rated safety instrumented systems in the global process industry. As aging Tricon installations approach end-of-life or face obsolescence challenges, the 3805EN remains a critical spare for facilities operating refineries, petrochemical plants, LNG terminals, offshore platforms, and power generation assets where unplanned downtime is simply not an option.

Migrating from an older analog output module — whether a legacy 3805 or an earlier-generation Tricon I/O card — to the 3805EN requires careful attention to wiring compatibility, field signal ranges, and rack slot assignments. The 3805EN delivers eight channels of 4–20 mA analog output, each independently isolated, and is designed to slot directly into the standard Tricon main chassis without modification to the backplane or field termination assemblies. This plug-and-replace architecture dramatically reduces the engineering effort required during a scheduled turnaround or emergency swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the TRICONEX 3805EN rarely involves a single module in isolation. In practice, field engineers conducting a Tricon system upgrade or emergency replacement will simultaneously assess the condition of adjacent I/O modules and infrastructure components to avoid repeat interventions during the same maintenance window.

When replacing the 3805EN, it is standard practice to inspect the Tricon Field Termination Assembly (FTA) connected to the module. The FTA carries all field wiring connections and, if it has been in service for more than a decade, may show signs of terminal oxidation or insulation degradation that could compromise signal integrity on the new module. Replacing the FTA at the same time as the 3805EN eliminates a common source of post-replacement faults.

The TRICONEX 3700A Main Chassis and 3721 Power Module are frequently reviewed during the same upgrade cycle. The 3721 supplies regulated DC power to all I/O modules in the chassis; a degraded power module can cause intermittent faults that are easily misdiagnosed as I/O module failures. Confirming the health of the 3721 before commissioning the replacement 3805EN is a recommended pre-installation step.

For facilities running mixed analog and digital I/O architectures, the TRICONEX 3604E Digital Input Module and 3703E Digital Output Module are commonly stocked alongside the 3805EN. These modules share the same chassis slot form factor and FTA wiring conventions, making consolidated procurement efficient for maintenance planners managing multi-module replacement projects.

Communication infrastructure is equally important during a Tricon upgrade. The TRICONEX 4351B Enhanced Intelligent Communication Module (EICM) and 4119A Network Communication Module (NCM) govern how the Tricon controller exchanges data with the DCS, historian, and operator workstations via Modbus, OPC, or proprietary Triconex protocols. If the upgrade scope includes a TriStation 1131 software version migration, verifying EICM/NCM firmware compatibility before the outage window prevents communication failures at restart.

For sites transitioning from older Tricon hardware to the current Tricon CX or Tricon v10 platform, the TRICONEX 3008 Main Processor Module is often part of the upgrade bill of materials. Pairing a new 3805EN with a current-generation processor ensures the full SIL 3 functional safety chain is maintained end-to-end, from field signal to safety logic execution.

Finally, facilities that rely on signal isolators and Zener barrier assemblies between the 3805EN outputs and intrinsically safe field devices in hazardous areas should verify that the isolator input impedance remains within the 3805EN’s specified load resistance range (typically 0–750 Ω per channel). Mismatched load impedance is a leading cause of calibration drift after module replacement and is easily resolved during the pre-commissioning loop check.

Retrofit Guidance FAQ

Q1: Can the 3805EN replace an older 3805 without rewiring the field termination assembly?
Yes. The 3805EN uses the same FTA connector pinout as the legacy 3805 series. Field wiring does not need to be disturbed. After physical installation, a TriStation 1131 download and loop check are sufficient to verify correct operation.

Q2: Is the 3805EN compatible with both Tricon v9 and Tricon v10 controller platforms?
The 3805EN is natively compatible with Tricon v9.x systems. For Tricon v10 (Tricon CX) deployments, compatibility depends on the chassis generation and firmware revision. Contact TOPNLMS with your controller model and TriStation version for a pre-sale compatibility confirmation.

Q3: What communication protocols does the Tricon system support when using the 3805EN?
The Tricon platform communicates via Modbus RTU, Modbus TCP/IP, and OPC DA/UA through the EICM or NCM communication modules. The 3805EN itself communicates over the Tricon internal backplane bus and does not require separate protocol configuration.

Q4: How should I verify the 3805EN is functioning correctly after installation?
After installation, perform a full loop check on all eight output channels using a calibrated mA meter at the field device terminals. Confirm that the TriStation 1131 diagnostic display shows no module faults and that each channel’s output tracks the commanded value within the specified ±0.1% accuracy. TOPNLMS ships each 3805EN with a pre-shipment functional test report.

Warranty Assurance

Every TRICONEX 3805EN supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a documented functional test covering output channel accuracy, channel isolation integrity, and backplane communication verification. Units that do not meet original TRICONEX factory specifications are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within one business day for technical support, compatibility queries, and RMA processing. We maintain stock of the 3805EN and related Tricon I/O modules to support emergency replacement orders with same-day or next-day dispatch from our Xiamen warehouse.

For procurement teams managing multi-site Tricon installations, TOPNLMS offers consolidated purchase orders covering multiple module types, with unified documentation packages including test reports, packing lists, and certificates of conformity to support site acceptance procedures.
