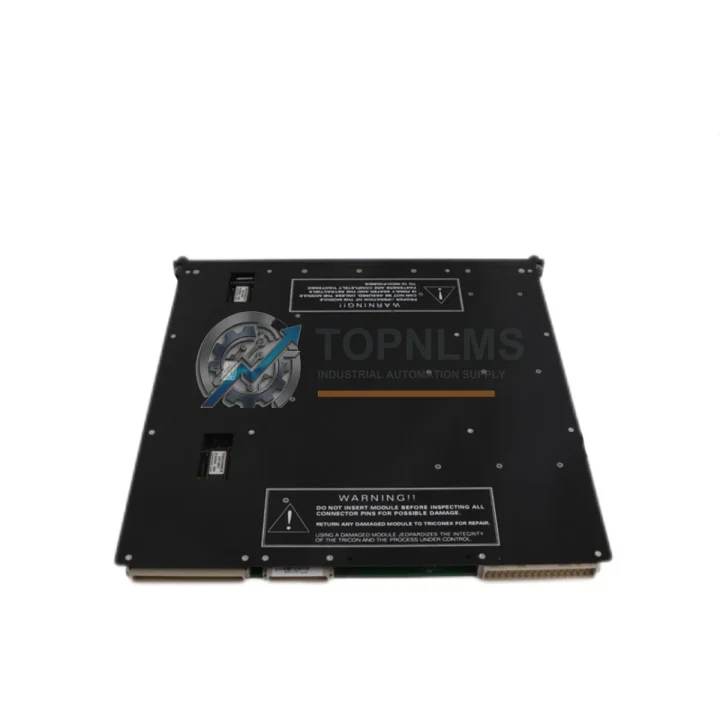

TRICONEX 3805E Ruggedized Analog Output Module for Harsh Environments

Product Overview

TRICONEX 3805E Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The TRICONEX 3805E is an 8-channel, 4–20mA analog output module engineered for the Tricon Triple Modular Redundancy (TMR) safety system platform. Designed to meet IEC 61508 SIL 3 requirements, this module delivers fault-tolerant, continuous analog control in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, high-vibration heavy machinery installations, and zones with severe electromagnetic interference (EMI). Where process uptime is non-negotiable and a single point of failure is unacceptable, the 3805E provides the architectural redundancy and signal integrity that safety engineers depend on.

Built on TRICONEX’s proven TMR architecture, the 3805E operates three independent processing paths simultaneously, comparing outputs in real time and voting on the correct signal before transmission. This triple-redundant design ensures that even if one channel experiences a fault — whether from electrical noise, thermal stress, or component aging — the module continues to deliver accurate 4–20mA signals to field devices without interruption. The result is a module that supports continuous production lines in oil refineries, gas processing plants, power generation facilities, water treatment stations, metallurgical smelters, and chemical processing units without requiring a process shutdown for maintenance or module replacement.

Rugged Specifications Table

Comprehensive Protection Solutions

The TRICONEX 3805E does not operate in isolation — it is a critical node within a broader safety instrumented system (SIS) architecture. In a typical Tricon TMR control cabinet, the 3805E analog output module works in concert with the TRICONEX 3703E Digital Input Module and the TRICONEX 3704E Digital Output Module to form a complete I/O subsystem capable of reading field sensor states and commanding final control elements simultaneously. The TRICONEX 3805E receives setpoint commands from the TRICONEX Main Processor Module (e.g., 3008), which executes the safety logic and distributes control signals across all I/O modules in the chassis.

For power integrity in harsh environments, the Tricon system relies on redundant TRICONEX Power Supply Modules (e.g., 8312) that provide clean, regulated DC power to the chassis backplane, ensuring the 3805E and co-installed modules such as the TRICONEX 3805H Enhanced Analog Output Module receive stable operating voltage even during grid fluctuations or brownout conditions common in heavy industrial facilities. Communication between the Tricon controller and supervisory SCADA or DCS platforms is handled by TRICONEX Communication Modules such as the TCM 4351B, which supports Modbus and proprietary Tricon protocols, enabling the 3805E’s output status and diagnostics to be monitored remotely from a control room.

In installations where the Tricon system interfaces with a broader Distributed Control System (DCS) — such as a Honeywell Experion PKS or Emerson DeltaV SIS — the 3805E’s 4–20mA outputs connect directly to DCS analog input cards via field terminal assemblies and marshalling panels, maintaining signal fidelity across long cable runs in electrically noisy environments. Safety relay modules and solenoid valve drivers downstream of the 3805E depend on its precise, drift-free current output to actuate emergency shutdown (ESD) valves and process isolation devices reliably. The module’s TMR voting mechanism ensures that even a degraded channel does not cause a spurious trip or a dangerous undetected failure, supporting both high demand and continuous demand mode SIL 3 applications as defined by IEC 61511.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the TRICONEX 3805E is deployed in wellhead control panels, compressor station ESD systems, and pipeline pressure management loops where SIL 3 integrity is mandated by functional safety standards and regulatory bodies. Its 4–20mA outputs drive control valves, pressure regulators, and flow control elements that must respond accurately and without hesitation under high-pressure, high-temperature process conditions.

In power generation facilities — including thermal, nuclear, and combined-cycle gas turbine plants — the 3805E supports turbine governor control, boiler feedwater regulation, and generator excitation systems. The TMR architecture ensures that a single module fault does not interrupt power output or trigger an unplanned unit trip, which can have cascading grid stability consequences.

In mining and metallurgical operations, where dust ingress, mechanical vibration from crushers and conveyors, and wide ambient temperature swings are constant challenges, the 3805E is installed in sealed, climate-controlled control cabinets. It manages analog outputs to variable frequency drives (VFDs), hydraulic control systems, and ore processing equipment, maintaining precise process control even as the surrounding environment degrades lesser-rated components.

In water and wastewater treatment plants, the 3805E controls chemical dosing pumps, aeration blowers, and filtration system actuators. Its SIL 3 rating satisfies the functional safety requirements of modern water utility operators who must demonstrate compliance with IEC 61511 for critical process safety functions protecting public health infrastructure.

Security & Quality FAQ

Q1: Does the TRICONEX 3805E come with a warranty, and how is it tested before shipment?
Yes. Every TRICONEX 3805E unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification testing to confirm channel output accuracy, TMR voting integrity, and communication with the Tricon chassis backplane. Units that do not pass testing are not shipped. A test report is available upon request for quality-critical procurement processes.

Q2: Is this module compatible with my existing Tricon TMR system version?
The 3805E is designed for the TRICONEX Tricon TMR platform and is compatible with Tricon chassis configurations running system firmware versions 9.x and 10.x. It occupies a standard I/O slot in the Tricon chassis and is recognized by the TriStation 1131 programming environment. If you are integrating the 3805E into a specific system revision or alongside other I/O modules such as the 3703E or 3704E, our technical team can confirm compatibility based on your chassis model and firmware version before purchase.

Q3: Can this module be used as a direct replacement for a failed unit in a live SIL 3 system?
Yes. The TRICONEX 3805E is a hot-swappable module within the Tricon TMR chassis, meaning it can be replaced without shutting down the process — a critical capability for continuous production environments. The TMR architecture maintains system operation on the remaining two redundant paths while the replacement module is installed and synchronized. TOPNLMS maintains stock of the 3805E specifically to support emergency spare parts procurement for facilities that cannot tolerate extended downtime.

Q4: What is the long-term supply availability for the TRICONEX 3805E?
TOPNLMS specializes in industrial automation spare parts with a focus on safety system components, including legacy and current-generation TRICONEX modules. We maintain inventory of the 3805E and related Tricon I/O modules to support facilities operating long-lifecycle safety systems. For customers requiring guaranteed supply agreements or multi-unit procurement for critical infrastructure projects, please contact our team directly to discuss stocking arrangements and lead times.
