Triconex 3706A Replacement/Upgrade for Tricon TMR: Seamless Migration & Legacy System Compatibility

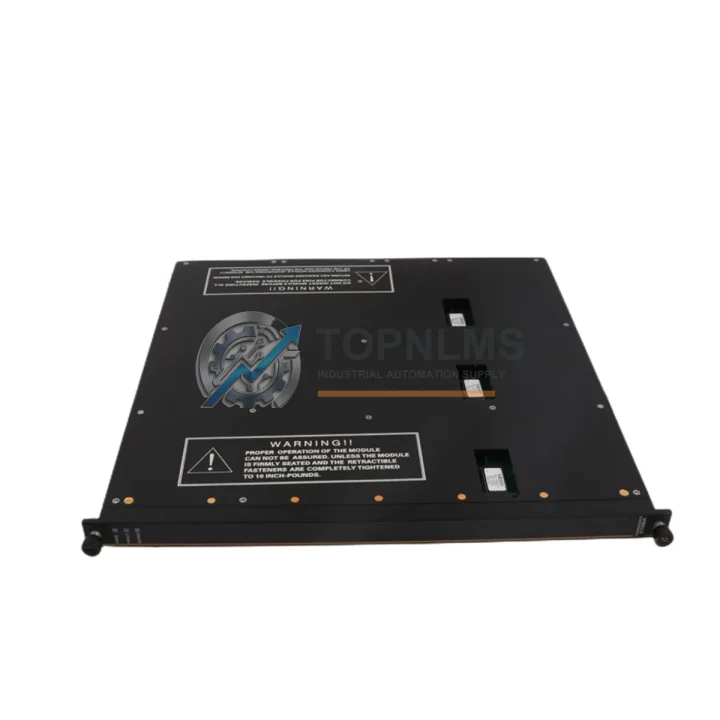

The Triconex 3706A is a 16-channel analog input module designed for the Tricon Triple Modular Redundant (TMR) safety system platform, widely deployed in oil & gas, petrochemical, power generation, and critical process industries. As aging Tricon systems approach end-of-life or require spare-part replenishment, the 3706A serves as the authoritative drop-in replacement and upgrade solution for facilities seeking to extend operational life, reduce unplanned downtime, and maintain SIL 3 functional safety compliance without a full system overhaul.

Migrating from an older Triconex analog input module — such as the 3703E, 3704E, or 3705E — to the 3706A requires careful attention to wiring termination compatibility, channel density, and signal range configuration. The 3706A supports 4–20 mA and 1–5 V analog input signals across all 16 channels, with each channel independently configurable via the TriStation 1131 programming environment. Existing field wiring connected to the Tricon chassis backplane can typically be retained without modification, as the 3706A maintains the same 40-pin connector footprint used across the Tricon I/O module family. This means physical installation into an existing Tricon main chassis or expansion chassis requires no additional wiring harness changes, significantly reducing retrofit labor costs and the risk of wiring errors during hot-swap replacement.

From a power supply perspective, the 3706A draws its operating voltage directly from the Tricon chassis backplane, which is fed by the Tricon Power Supply Module (e.g., 8312 or 8310 series). No external 24 VDC field power is required for the module itself, though field transmitters connected to the analog inputs will still require loop power sourced from the field junction box or marshalling cabinet. When replacing a failed 3706A in a live TMR system, the Tricon architecture allows single-leg replacement without process shutdown, provided the remaining two legs maintain signal integrity — a key advantage of the TMR redundancy model that minimizes production impact during maintenance windows.

Communication between the 3706A and the Tricon Main Processor Module (MP) occurs over the proprietary Tricon backplane bus. No external fieldbus configuration is required for the module itself. However, if the broader control system architecture involves integration with a DCS or SCADA layer via Modbus RTU, Modbus TCP, or OPC-DA/OPC-UA, the Triconex Communication Module (TCM) — such as the 4351B or 4352 — handles that protocol bridge transparently. Upgrading the 3706A does not require reconfiguration of the TCM or changes to the Modbus register map, provided the channel assignments in the TriStation 1131 project file remain consistent with the original I/O configuration.

For facilities running a hybrid architecture where the Tricon TMR safety system interfaces with a Triconex TRIDENT or TRIDENT-based partial-stroke testing controller, the 3706A analog inputs can be mapped to shared process variables without protocol conversion, as both platforms share the same TriStation 1131 development environment and variable naming conventions. This simplifies cross-platform migration projects where legacy TRIDENT I/O modules are being consolidated onto a unified Tricon chassis to reduce cabinet footprint and spare-part inventory complexity.

Installation space is a frequent concern during control cabinet retrofits. The 3706A occupies a single I/O slot in the Tricon main chassis (model 3008 or 3006) or expansion chassis (model 9662 or 9663). Its slim form factor and standard Tricon slot pitch mean that replacing a 3703E or 3705E with a 3706A introduces no physical interference with adjacent modules such as the Tricon Digital Input Module (3501E), Digital Output Module (3601E), or Relay Output Module (3625). Cabinet thermal management is unchanged, as the 3706A’s power dissipation profile is consistent with the broader Tricon I/O module family.

Field commissioning after module replacement involves loading the existing TriStation 1131 project file, verifying channel engineering unit scaling (e.g., 4 mA = 0%, 20 mA = 100%), confirming alarm and trip setpoints, and performing a loop check against the field transmitter. No firmware flashing is required for the 3706A — the module firmware is embedded and version-managed by the Tricon MP during system initialization. This eliminates a common source of commissioning delay seen with third-party I/O replacements that require separate firmware download procedures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Tricon TMR system migration or spare-part replenishment strategy rarely involves a single module in isolation. When sourcing the 3706A as a replacement analog input module, procurement teams typically evaluate the broader I/O and infrastructure layer simultaneously. The Tricon Digital Input Module 3501E is frequently co-sourced alongside the 3706A to address aging discrete input channels monitoring valve position feedback, pressure switches, and emergency shutdown (ESD) initiators. Similarly, the Tricon Digital Output Module 3601E handles solenoid valve actuation and relay-driven shutdown outputs that must remain synchronized with the analog measurement channels managed by the 3706A.

Power infrastructure is another critical consideration. The Tricon Power Supply Module 8312 provides the regulated backplane voltage that feeds all I/O modules including the 3706A. Facilities with aging power supply modules should evaluate concurrent replacement to avoid a scenario where a newly installed 3706A is compromised by an unstable backplane power rail. The Tricon Main Processor Module (MP3008 or equivalent) governs all I/O scanning, diagnostics, and TMR voting logic — its firmware revision must be compatible with the 3706A module revision, a compatibility check that TOPNLMS performs prior to shipment.

For systems requiring enhanced field signal conditioning, the Tricon Analog Output Module 3805E is commonly paired with the 3706A in closed-loop control applications where the safety system must both measure and modulate process variables such as flow control valves or variable-speed drives. In architectures where field signals must be isolated before entering the Tricon chassis — particularly in high-noise environments or where intrinsic safety barriers are required — signal isolators and Zener barriers are installed at the marshalling cabinet level, upstream of the 3706A termination assembly.

Communication module upgrades are often bundled with I/O replacements. The Triconex Communication Module 4351B or 4352 enables Modbus TCP and OPC-DA connectivity between the Tricon safety system and the plant DCS or historian. When the 3706A is installed as part of a broader system modernization, updating the TCM firmware ensures compatibility with modern SCADA platforms and cybersecurity hardening requirements. Finally, for facilities performing TriStation 1131 project modifications as part of the 3706A integration — such as re-mapping channel assignments or updating engineering unit scaling — a Triconex programming cable (model 4000043-001 or equivalent USB-to-serial adapter) is required to establish a direct connection between the engineering workstation and the Tricon MP.

Retrofit Guidance FAQ

Q: Can the 3706A replace a 3705E without modifying field wiring?
A: Yes. Both modules use the same 40-pin Tricon backplane connector and the same field termination assembly. No field wiring changes are required. Verify channel count requirements, as the 3706A provides 16 channels versus the 3705E’s 12.

Q: Does replacing the 3706A require changes to the TriStation 1131 program?
A: Not for a like-for-like replacement. If you are upgrading from a lower-channel-count module and utilizing the additional channels, new I/O variable declarations and loop logic must be added to the project file before download.

Q: What communication protocols does the 3706A support?
A: The 3706A communicates exclusively over the Tricon proprietary backplane bus. External protocol support (Modbus RTU, Modbus TCP, OPC-UA) is handled by the Triconex Communication Module (TCM), not the I/O module itself.

Q: Will the 3706A fit in my existing Tricon expansion chassis?
A: Yes, provided the chassis is a Tricon 3008, 3006, 9662, or 9663. The 3706A occupies one standard I/O slot and has the same physical dimensions as all Tricon I/O modules.

Q: Can the 3706A be hot-swapped in a live TMR system?
A: Yes. The Tricon TMR architecture supports single-leg module replacement without process shutdown, provided the remaining two legs are healthy and the system is not in a degraded voting state.

Q: What is the lead time and shipping origin for the 3706A from TOPNLMS?
A: Stock items ship from Xiamen, China within 1–3 business days. International express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Contact [email protected] for urgent requirements.

Warranty Assurance

Every Triconex 3706A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional pre-shipment inspection including visual examination, connector integrity check, and where test equipment permits, power-on verification. Modules are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement-first policy: a replacement unit is dispatched upon receipt and inspection of the returned module, minimizing the time your facility operates without a qualified spare. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal on all warranty cases.

Procurement documentation including commercial invoice, packing list, and certificate of conformance is provided with every shipment to support your incoming inspection and asset management processes. For facilities requiring third-party inspection or specific export documentation, please advise at the time of order placement.

For volume procurement, blanket orders, or consignment stock arrangements for Triconex spare parts, contact our industrial automation team directly.
