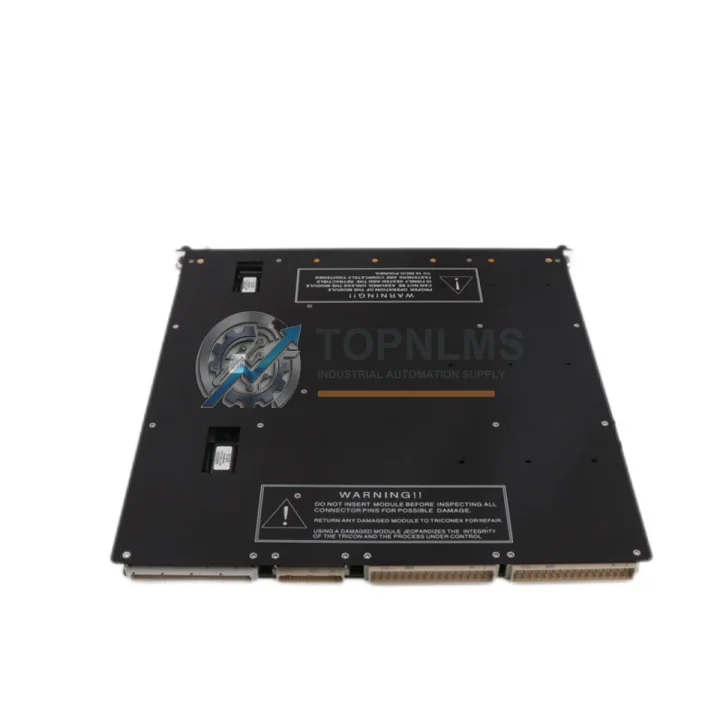

TRICONEX 3704E Ruggedized Analog Input Module

Product Overview

TRICONEX 3704E Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The TRICONEX 3704E is a high-integrity analog input module engineered for the Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS). Designed to operate continuously in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — the 3704E delivers the signal accuracy and fault-tolerant architecture that safety-critical applications demand. Whether deployed in a petrochemical control room, an offshore platform cabinet, or a power generation facility, this module maintains reliable analog signal acquisition without compromise.

Built on TRICONEX’s proven TMR architecture, the 3704E processes each analog input channel through three independent processing paths simultaneously. Any single-channel fault is automatically detected and voted out, ensuring the safety function remains intact without process interruption. This triple-redundant design is the cornerstone of IEC 61511 and IEC 61508 SIL 3 compliance, making the 3704E a preferred choice for engineers specifying safety loops in oil and gas, nuclear, chemical, and power industries.

Rugged Specifications Table

Comprehensive Protection Solutions

The TRICONEX 3704E does not operate in isolation — it is the sensing backbone of a broader safety architecture. In a typical Tricon SIS cabinet, the 3704E works in concert with the TRICONEX 3008 Main Processor Module, which executes the safety logic and coordinates the TMR voting across all I/O modules. Analog signals acquired by the 3704E are passed to the main processor via the Tricon chassis backplane, where they are evaluated against configured safety setpoints in real time.

For digital safety interlocks, the TRICONEX 3664 Digital Output Module and TRICONEX 3501E Digital Input Module complement the 3704E within the same chassis, providing a complete I/O layer for both analog measurement and discrete control. In applications where process variables must be isolated before entering the SIS, TRICONEX 3703E Analog Input Modules — the predecessor variant — may be found alongside the 3704E in legacy installations, and the 3704E serves as a direct functional upgrade.

Power integrity is equally critical in harsh environments. The TRICONEX 8312 Power Supply Module provides redundant DC power to the Tricon chassis, ensuring that voltage fluctuations, brownouts, or single power supply failures do not interrupt the safety function. In facilities where electromagnetic interference from variable frequency drives (VFDs), large motor starters, or high-voltage switchgear is a concern, proper grounding of the Tricon chassis and the use of shielded signal cables between field instruments and the 3704E input terminals is essential practice.

For communication and diagnostics, the TRICONEX 4351B Enhanced Intelligent Communication Module (EICM) enables Modbus TCP/IP and serial communication between the Tricon SIS and the plant DCS or SCADA system, allowing operators to monitor safety loop status, acknowledge alarms, and retrieve diagnostic data without bypassing the safety function. This integration is particularly valuable in combined cycle power plants and refinery units where the SIS must report to a Honeywell Experion PKS or Emerson DeltaV distributed control system.

Terminal modules and marshalling panels that interface field wiring to the 3704E should be rated for the same environmental class as the module itself. In high-vibration environments such as compressor stations or offshore platforms, spring-clamp terminal blocks are preferred over screw-type terminals to prevent signal loss from mechanical loosening over time.

Application in Critical Infrastructure

The TRICONEX 3704E is deployed across the full spectrum of critical infrastructure where process safety is non-negotiable:

Oil & Gas: In upstream wellhead control panels and downstream refinery units, the 3704E monitors pressure transmitters, temperature sensors, and flow meters on high-pressure hydrocarbon lines. Its SIL 3 rating satisfies the functional safety requirements of ANSI/ISA 84 and IEC 61511 for Emergency Shutdown (ESD) and High Integrity Pressure Protection Systems (HIPPS). Offshore platforms particularly benefit from the module’s tolerance for salt-laden humid air and the mechanical vibration generated by drilling and production equipment.

Power Generation: In gas turbine and steam turbine control systems, the 3704E acquires analog signals from vibration probes, exhaust temperature thermocouples, and lube oil pressure transmitters. Its TMR architecture ensures that a single sensor or input channel fault does not cause a spurious turbine trip, protecting both personnel and generation capacity. Nuclear power facilities operating under IEC 61513 requirements also utilize TRICONEX TMR platforms for reactor protection system (RPS) applications.

Mining & Metals: In underground mining operations and surface smelting facilities, the 3704E withstands the high dust concentrations, wide temperature swings, and intense electromagnetic interference generated by large electric arc furnaces and conveyor drive systems. Its robust signal conditioning ensures accurate analog acquisition even when installed in close proximity to high-power electrical equipment.

Water & Wastewater Treatment: Municipal water treatment plants and industrial effluent systems rely on the 3704E to monitor chemical dosing rates, tank levels, and pump pressures within their safety instrumented functions. The module’s ability to operate continuously without scheduled downtime aligns with the 24/7 operational requirements of water infrastructure.

Chemical & Petrochemical: Reactor temperature monitoring, pressure relief system supervision, and toxic gas detection loops in chemical plants all benefit from the 3704E’s fault-tolerant analog acquisition. Its compatibility with HART-enabled field instruments — when used with appropriate HART multiplexers — allows asset management systems to retrieve device diagnostics without interrupting the safety function.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the TRICONEX 3704E?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified analog input function within the warranty period, TOPNLMS will arrange replacement or repair. The warranty period begins from the date of confirmed shipment. Warranty claims require the original order reference and a brief description of the observed fault.

Q2: How is the TRICONEX 3704E tested before shipment?
Every TRICONEX 3704E unit supplied by TOPNLMS undergoes pre-shipment functional verification. This includes power-on self-test confirmation, channel continuity checks, and visual inspection for physical damage, corrosion, or component anomalies. Units that do not pass inspection are quarantined and not dispatched. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q3: Is the TRICONEX 3704E compatible with my existing Tricon chassis and main processor?
The 3704E is compatible with Tricon v9 and v10 chassis platforms and is designed to work with TRICONEX 3008 and 3009 series main processors. It occupies a standard I/O slot in the Tricon chassis and is recognized automatically by the Tricon system software. If you are upgrading from a 3703E or an earlier analog input variant, the 3704E is a functional replacement. For specific firmware version compatibility, TOPNLMS technical support can assist with pre-purchase verification.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the TRICONEX 3704E?
Yes. TOPNLMS maintains dedicated inventory of TRICONEX Tricon series modules, including the 3704E, to support both planned maintenance schedules and emergency breakdown replacements. For facilities operating aging Tricon SIS platforms where OEM lead times are extended, TOPNLMS provides a reliable alternative supply channel with verified stock, fast dispatch, and documented traceability. Long-term supply agreements and priority stock reservation are available for large industrial operators and EPC contractors.
