TRICONEX 3703E Original Industrial Spare Tricon TMR Compatible

Product Overview

TRICONEX 3703E Original Industrial Spare Tricon TMR Compatible: System Stability & Maintenance Value

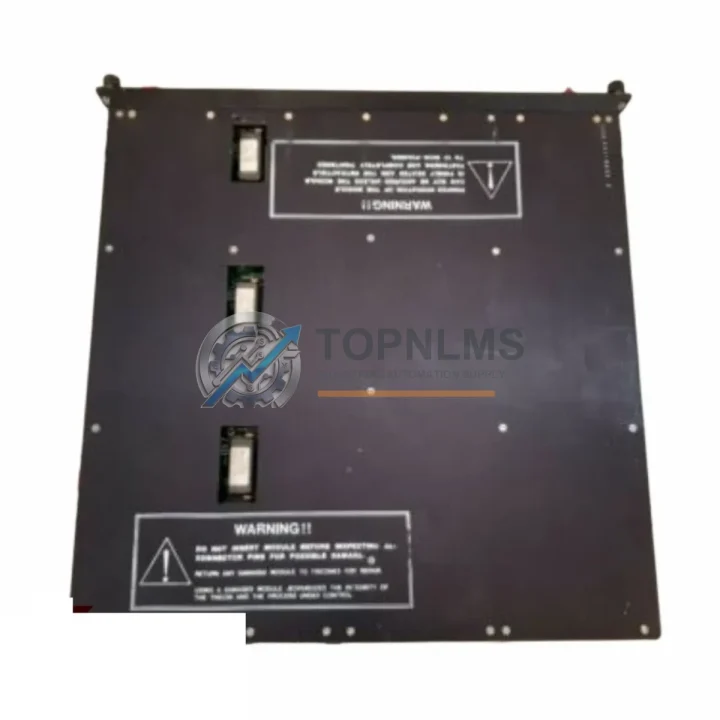

The TRICONEX 3703E is an original isolated analog input module engineered for the Tricon Triple Modular Redundant (TMR) Safety System, one of the most widely deployed SIL 3–rated safety platforms in oil & gas, petrochemical, power generation, and continuous process industries. When a facility depends on a Tricon TMR architecture for emergency shutdown (ESD), burner management (BMS), or high-integrity pressure protection (HIPPS), the integrity of every I/O module in the chassis is mission-critical. The 3703E delivers the isolated analog signal acquisition that keeps process measurements accurate, redundant, and fully auditable under IEC 61511 and IEC 61508 functional safety requirements.

Sourced as an original spare — not a counterfeit or grey-market substitute — the 3703E is tested, serialized, and shipped with full traceability documentation. Each unit undergoes pre-shipment functional verification to confirm channel isolation, signal accuracy, and TMR voting logic compatibility before leaving our facility. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.

Critical Technical Specs

Preventive Maintenance Strategy

In a Tricon TMR safety system, the 3703E analog input module does not operate in isolation — it is one node in a tightly integrated safety architecture where every component’s health directly affects system availability and SIL compliance. A disciplined preventive maintenance program should treat the 3703E replacement as a trigger for a broader inspection of the surrounding control cabinet and I/O subsystem.

When scheduling a planned outage to replace or inspect a 3703E, maintenance teams should simultaneously audit the Tricon 3703A or 3703B analog input modules installed in adjacent slots, as these earlier-generation variants share the same backplane interface and are subject to the same aging failure modes — capacitor degradation, connector oxidation, and firmware obsolescence. If the facility is running a mixed-generation Tricon chassis, this is the ideal window to standardize on the 3703E specification across all analog input slots.

The Tricon 3805E or 3805H digital output modules in the same chassis should be inspected for relay contact wear and output driver integrity, particularly in ESD applications where output modules may have accumulated significant switching cycles since the last proof test. Similarly, the 3664 or 3703 analog output modules serving control valve positioners should be verified for signal drift and loop integrity.

Power distribution is a common root cause of I/O module degradation. The Tricon 8312 or 8310 power supply modules feeding the main chassis should be load-tested and their output ripple measured during the same maintenance window. A marginal power supply will cause intermittent analog input errors that are difficult to diagnose without replacing the I/O module first — only to find the root cause was upstream. Inspecting the Tricon 3000 series chassis backplane for connector pin integrity and backplane bus voltage stability is equally important before re-seating any module.

For facilities using the Tricon Communication Module (TCM 4351B or 4352B) to interface with DCS historians or operator workstations via TriStation 1131, the maintenance window should include a firmware version audit and communication log review. Analog input data quality issues are sometimes misdiagnosed as module failures when the actual cause is a communication module buffer overflow or a misconfigured engineering unit scaling parameter in the TriStation project file.

Field wiring connected to the 3703E’s analog input terminals should be inspected for insulation integrity, shield grounding continuity, and terminal block torque. TRICONEX-compatible marshalling terminal assemblies and field termination assemblies (FTAs) — particularly the 4000094-310 or equivalent passive FTA models — should be checked for corrosion, loose terminations, and proper labeling. Replacing a 3703E without inspecting the FTA is a common maintenance oversight that leads to repeat failures within months.

Finally, any facility maintaining a Tricon TMR system should hold a minimum of one spare 3703E in local inventory at all times, alongside spares for the 3805E digital output module, 8312 power supply, and the main processor module (MP3008 or MP3009). A single unplanned outage caused by an unavailable spare can cost far more than the combined value of a complete spare parts kit. Strategic spare parts inventory is not a cost — it is operational insurance.

Strategic Replacement Solutions

The TRICONEX 3703E is a direct replacement for the earlier 3703A and 3703B analog input module variants. Facilities still operating legacy 3703A modules face increasing risk as original spare availability for that variant declines and firmware support from Schneider Electric’s Triconex product line narrows. Upgrading to the 3703E eliminates this obsolescence risk while maintaining full backward compatibility with existing Tricon chassis, backplane wiring, and TriStation 1131 project configurations — no re-engineering of the safety application is required.

For sites undergoing a partial system modernization without a full Tricon-to-Tricon replacement, the 3703E allows a slot-by-slot upgrade strategy that minimizes outage duration. Each module can be replaced during a scheduled proof test interval, spreading capital expenditure across multiple maintenance cycles rather than requiring a single large-budget shutdown. This approach preserves the existing SIL 3 certification boundary while progressively eliminating end-of-life hardware from the installed base.

Facilities managing multiple Tricon systems across different process units — such as a refinery with separate ESD, HIPPS, and BMS systems — benefit from standardizing on the 3703E as the single analog input module specification across all systems. Standardization reduces the number of unique spare part numbers that must be stocked, simplifies technician training, and enables cross-system spare sharing during emergency situations. Combined with a centralized spare parts management strategy, this approach can reduce total spare parts inventory cost while improving system availability.

All 3703E units supplied by TOPNLMS are shipped with pre-shipment test records, original packaging where available, and a 12-month warranty covering functional defects. Units are available for immediate dispatch with standard international freight options, including express air freight for emergency breakdown situations.
